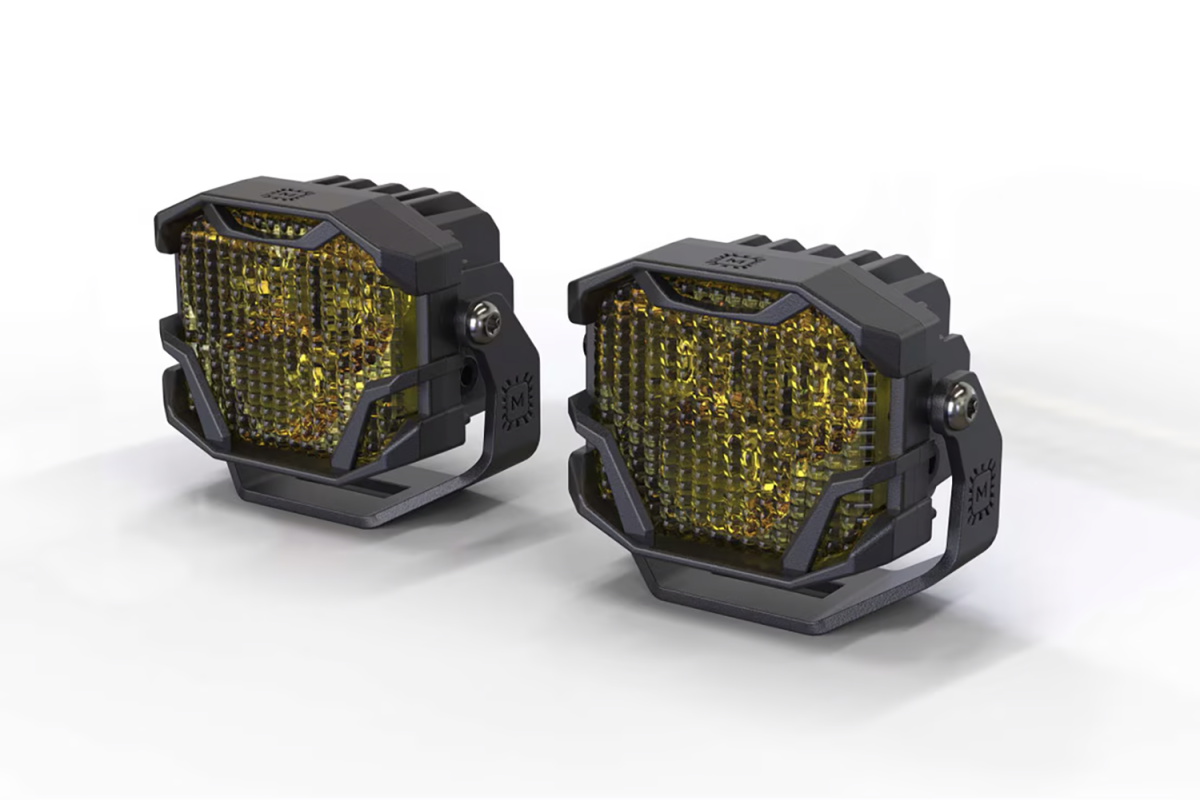

4Banger HXB LED Pods - Morimoto - (Pair)

Additional Images

SKU: BAF009.2, BAF010.2, BAF007.2, BAF008.2, BAF011.2, BAF012.2, BAF126.2, BAF138.2

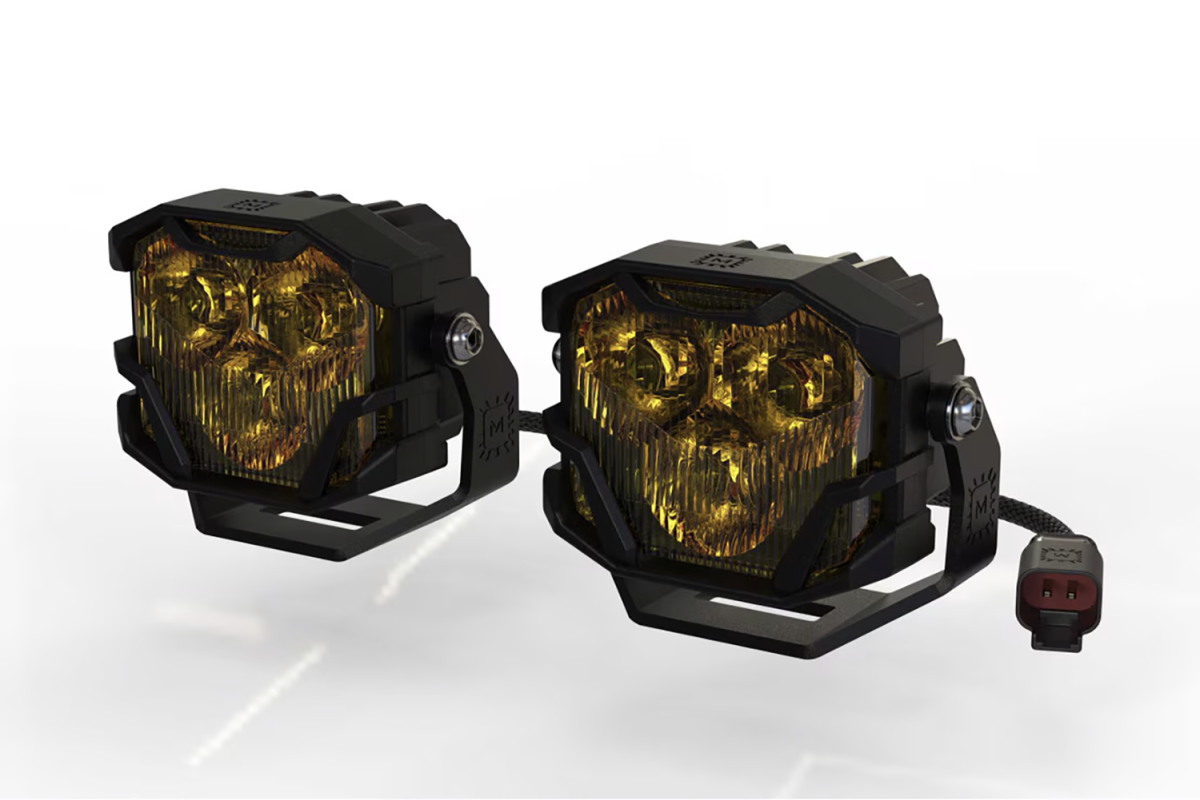

- LED Pods: 2x (One Pair) Morimoto 4Banger HXB
- Choose From Combo, Spot, Wide, or Flood in White or Yellow
- 3.25 in. Wide x 2 in. High x 2.5 in. Deep
- Brackets: Sold Separately - Choose from Bottom, Top, or Flush Mount
- Hardware: Complete pack (Stainless Steel)
- Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Pigtails
- Light Source: The HXB 4Bangers are designed around the ultra high performance Osram HX Boost LEDs for incredible output.
- The Following Specifications are Per Pod:
- Peak Luminosity (raw): 3,000lm
- Combo Beam Intensity (White): 78,000 Cd (Post Warm-Up) (780lux @ 10m)
- Combo Beam Intensity (Yellow): 54,600 Cd (Post Warm-Up) (546lux @ 10m)
- Spot Beam Intensity (White): 170,000 Cd (Post Warm-Up) (1,700lux @ 10m)
- Spot Beam Intensity (Yellow): 119,000 Cd (Post Warm-Up) (1190lux @ 10m)
- Wide Beam Intensity (White): 21,000 Cd (Post Warm-Up) (210lux @ 10m)
- Wide Beam Intensity (Yellow): 14,700 Cd (Post Warm-Up) (147lux @ 10m)
- Flood Beam Intensity (White): 1,750 Cd (Post Warm-Up) (17.5lux @ 10m)
- Flood Beam Intensity (Yellow): 1,225 Cd (Post Warm-Up) (12.25lux @ 10m)

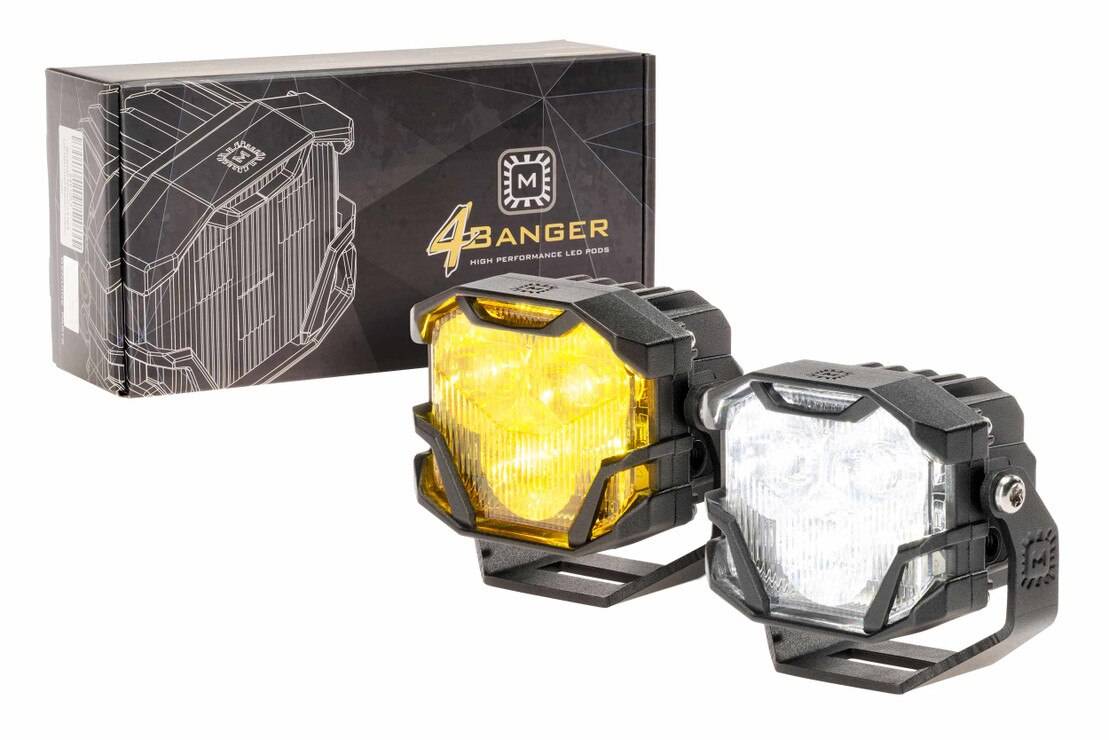

- Color: 2700K (Yellow) or 5700K (White)
- Input Voltage: 9-18V DC
- Current 3.2A @ 13.5V DC (Stabilized)

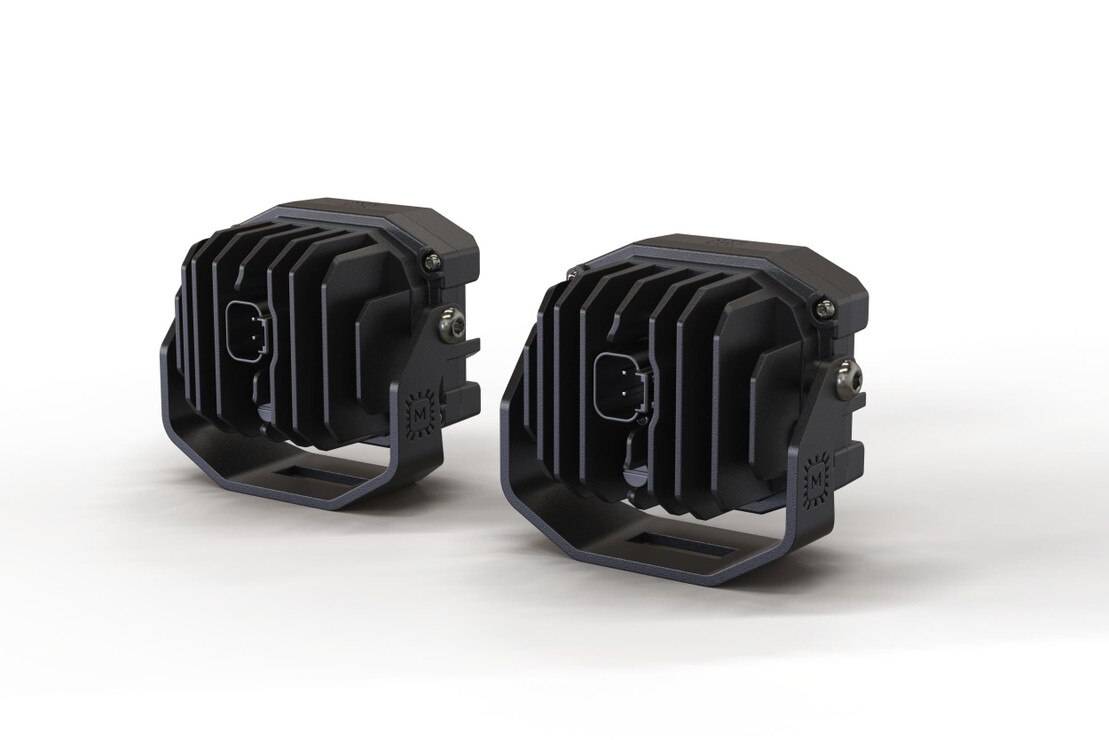

- Input: Proprietary Overmolded Deutsch DT 2-Pin
- Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Select Options & Add to Cart

Pricing: $583.00

As low as $53/mo with Affirm. Check your purchasing power

*Select Color & Beam Pattern Reset

*Select Mounting Bracket (Pair) Reset

*Select 4Banger LED Light Blackout Cover Reset

4 Banger Blackout Cover (Set) Option

*Select Banger LED Light Harness Options Reset

Wire Harness Options

Your Selected Options

Mounting Bracket (Pair):: Bottom Mount Brackets (BAF046) (+$12.75); Bottom Mount Brackets (As shown in Product Images). For most installations where light will be bolted on top of something (bracket, bumper, bar, etc.)

Your Total Price

$583.00

Qty:

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Description

Introducing Morimoto's 4Banger HXB Combo: Off-Road Reinvented! Since 2008, Morimoto has been leading the way in automotive lighting upgrades, and the 4Banger HXB Off-Road LED lights are no exception. Designed, engineered, and rigorously tested in the USA, these lights set a new standard in performance, reliability, and style. The HXB Combo Beam delivers a perfect blend of width and distance illumination for comfortable off-road driving. What sets these lights apart is their compact design, fitting seamlessly with Morimoto's fog light and A-Pillar mounting kits for popular trucks. No off-the-shelf components here -- these lights are proprietary and optimized for maximum performance, even in challenging weather conditions. With copper DTP PCBs, cast aluminum shells, and IP69K weather resistance standards, these lights are built to last. Plus, Morimoto offers a range of mounting options for a hassle-free installation. Don't settle for ordinary -- power up your off-road adventures with Morimoto's 4Banger Fog Lights. Get yours today and light up the path ahead!

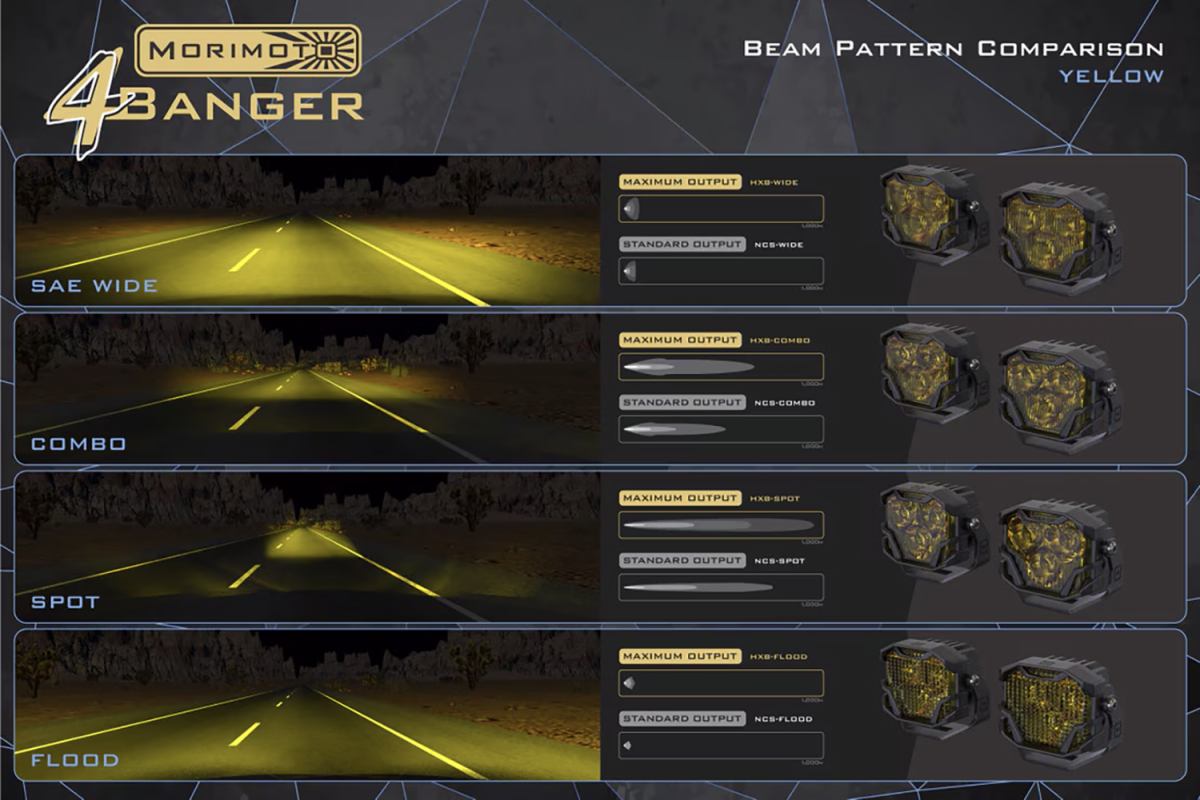

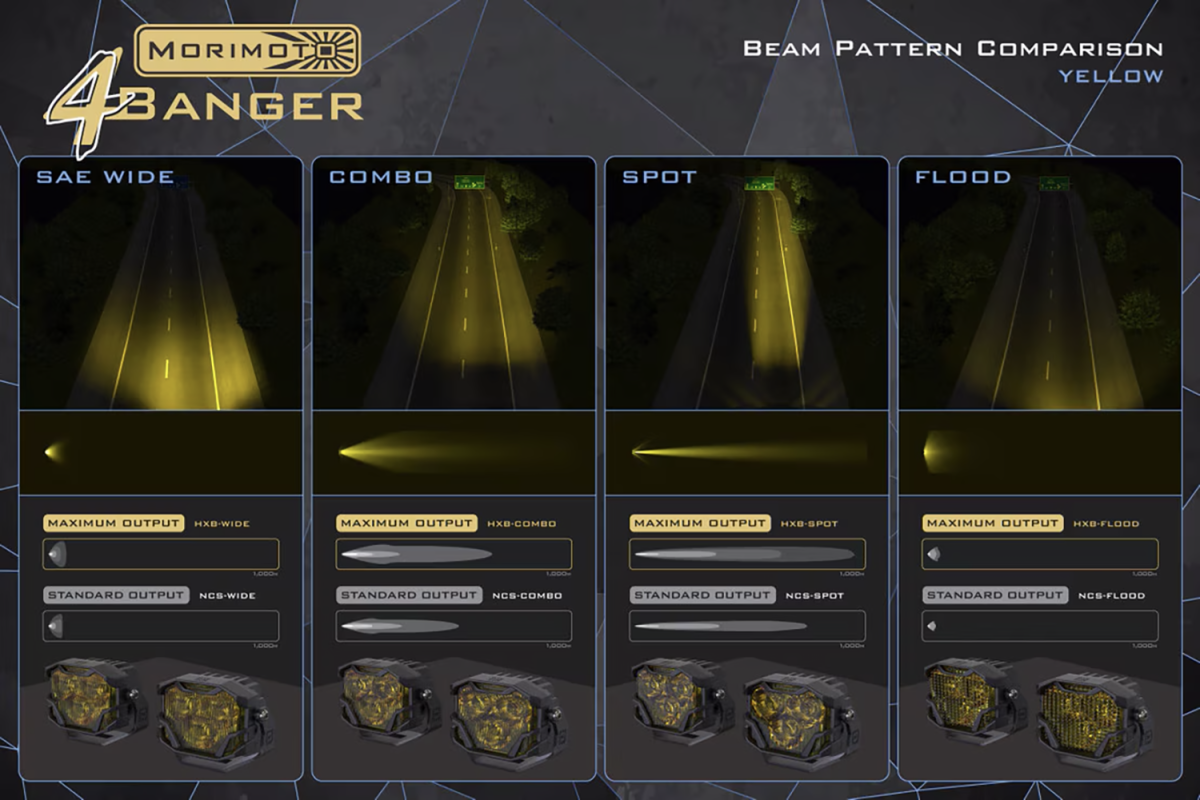

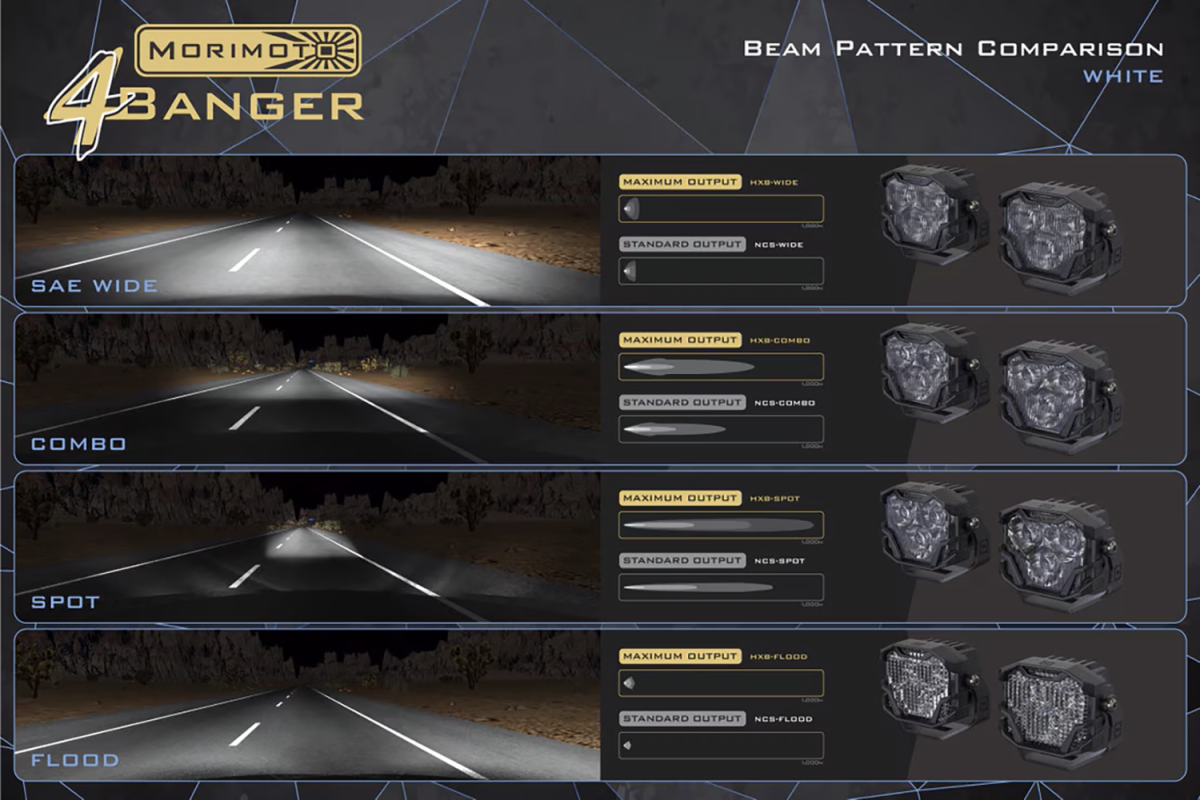

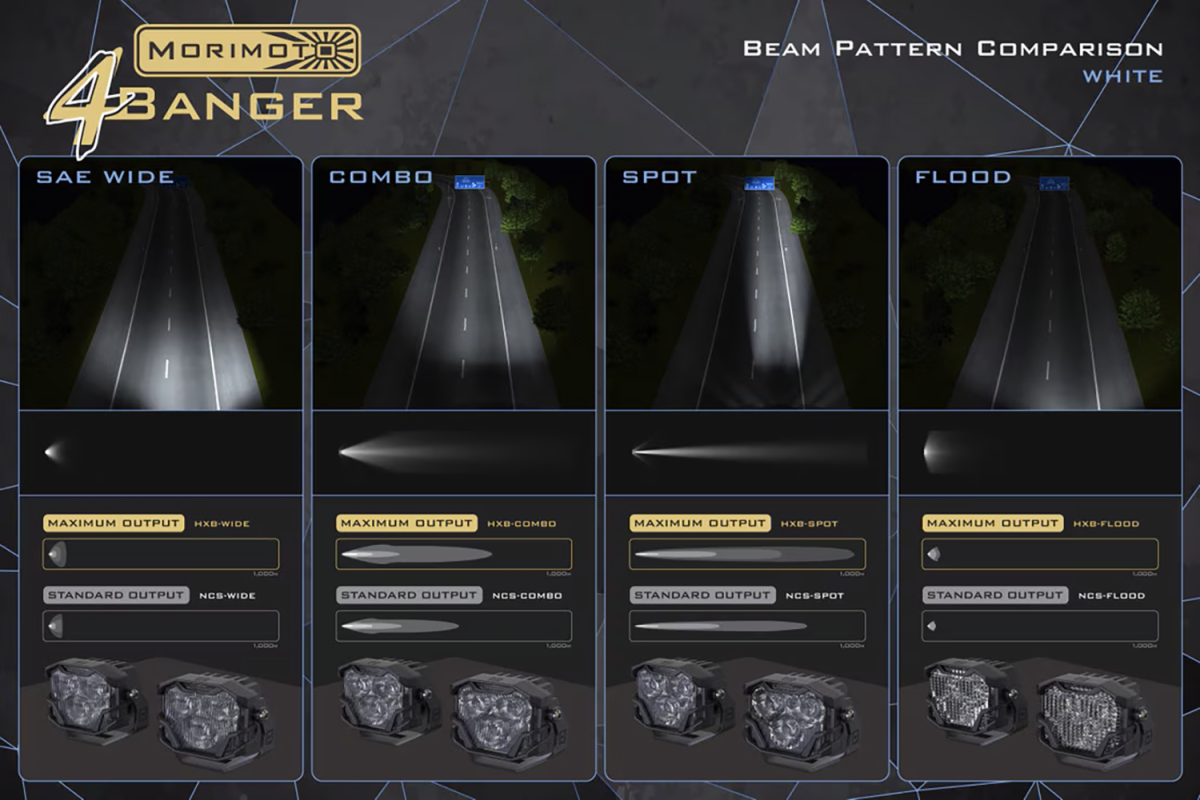

Combo Beam: Perfect blend of width and distance illumination.
Spot Beam: Tightly-focused beam pattern for distance lighting.
Wide Beam: Broadly-spread beam covers far to the left and right, ideal for challenging conditions.
Flood Beam: Abundant ambient lighting for low-speed offroading or scene lighting.
Light Source: The HXB 4Bangers are designed around the ultra high performance Osram HX Boost LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
Mounting Options: Available mounts for the 4Banger include pedestal, flush, tube, or hanging for any application type.

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patent-pending line of 4Banger HXB Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

HXB Combo Beam: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger HXB Combo is an excellent aid to any set of high-performance headlights.

Form Meets Function: The overall footprint of the 4Banger HXB is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.

Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger HXB is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. The 4Banger HXB is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

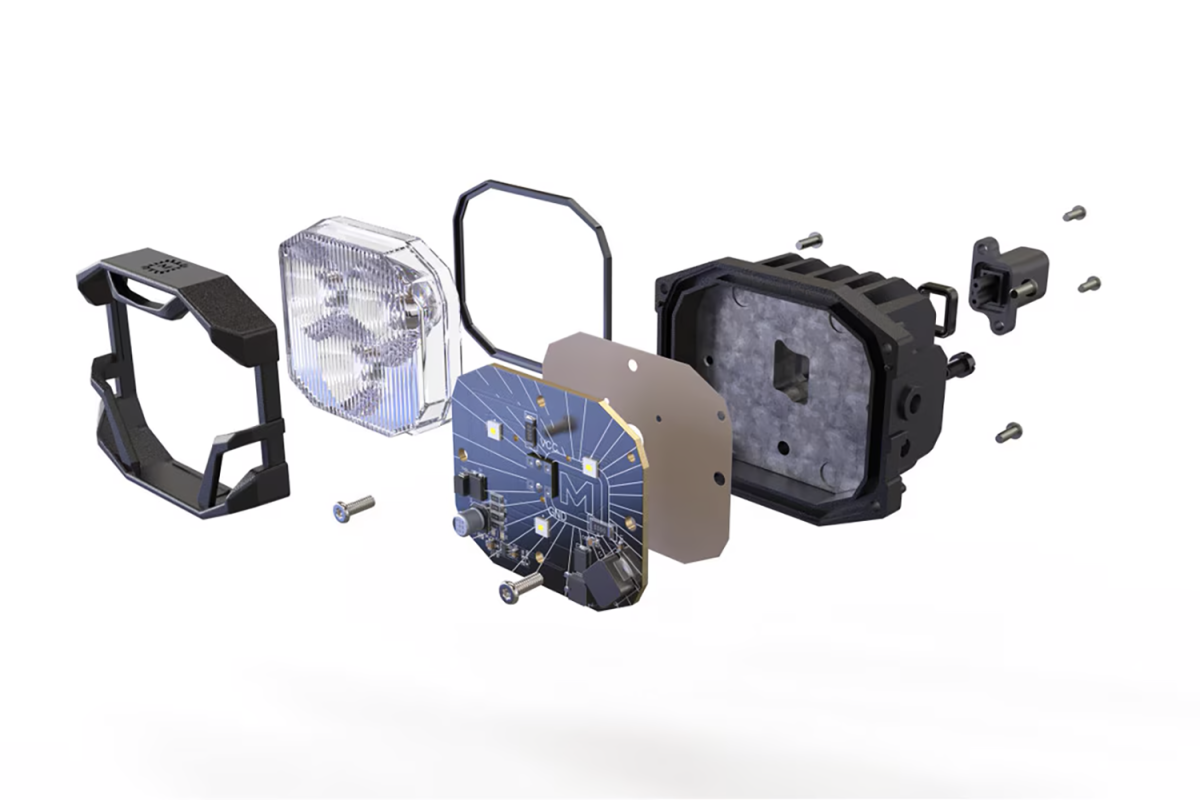

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.

Bolt-On: Each set of Morimoto 4Banger LED pods include a set of pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.

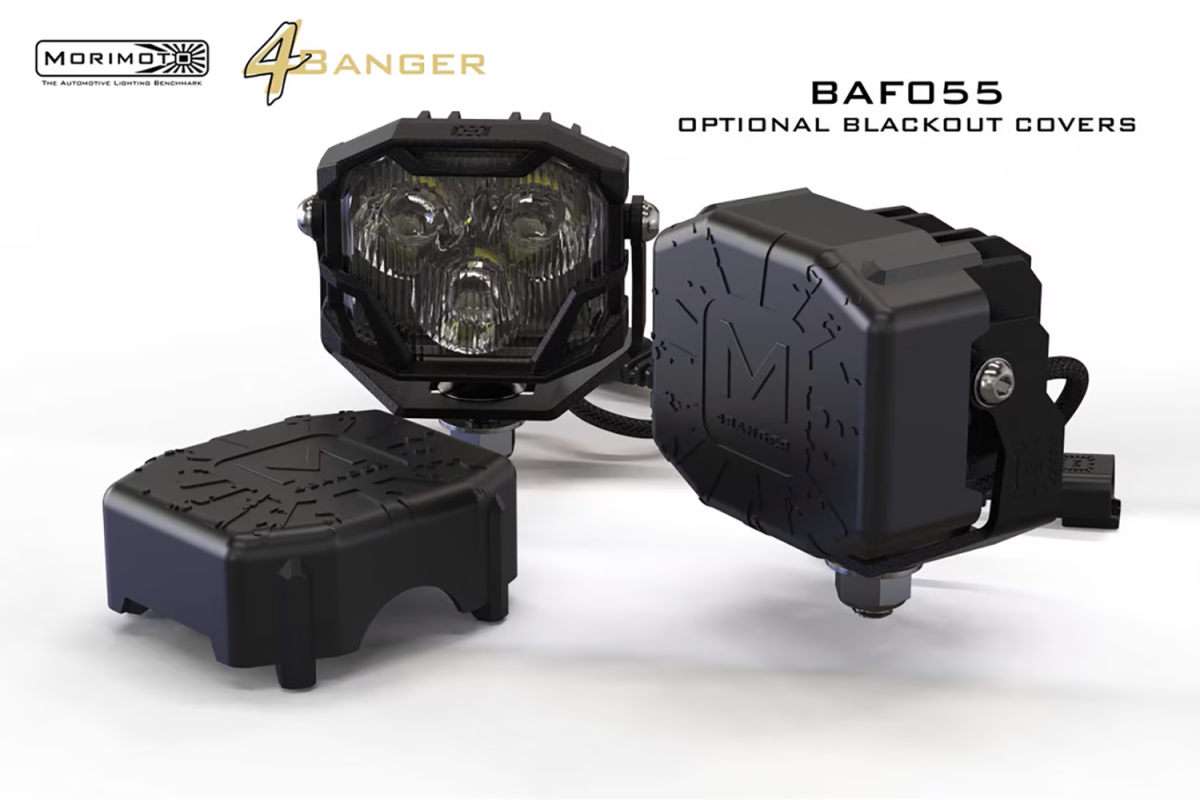

Street Legality: When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an for auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, both the NCS and HXB Wide beam models are SAE J583 compliant for use as a street legal fog light. Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods, and are a friction + clip fit that installs with ease, and can be removed in seconds.

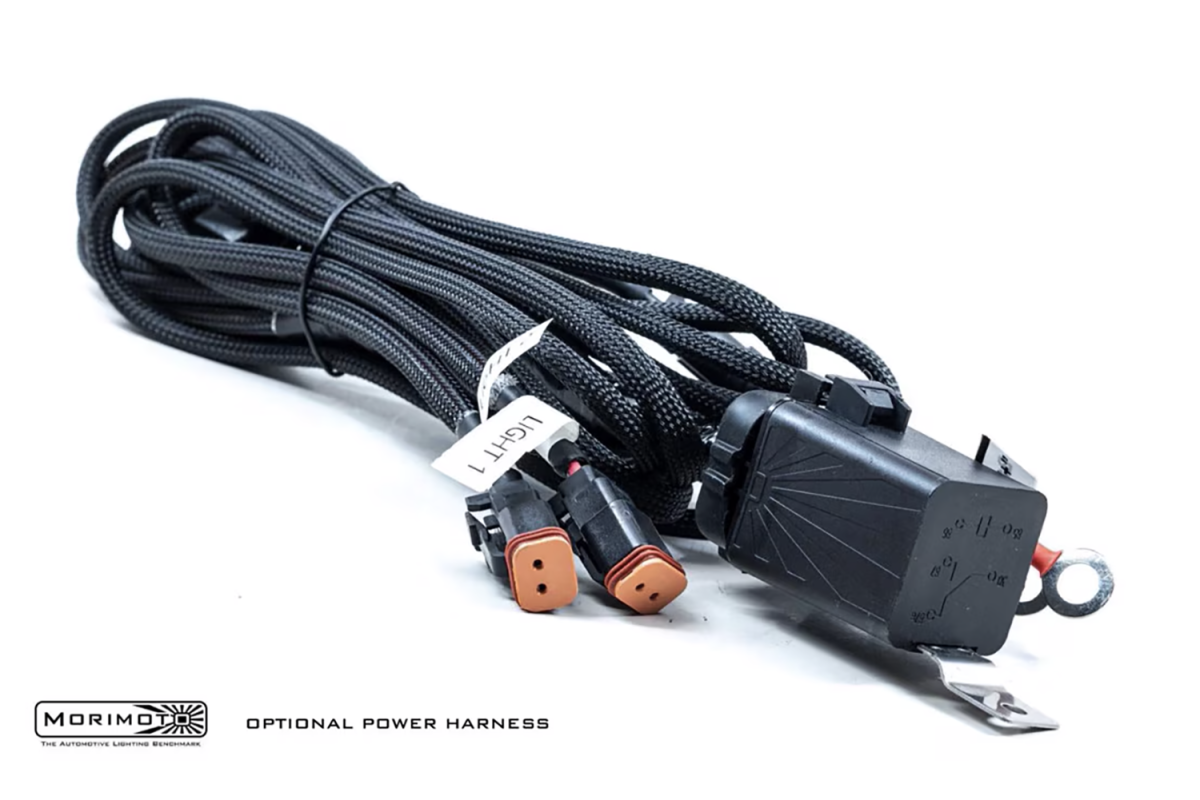

Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
