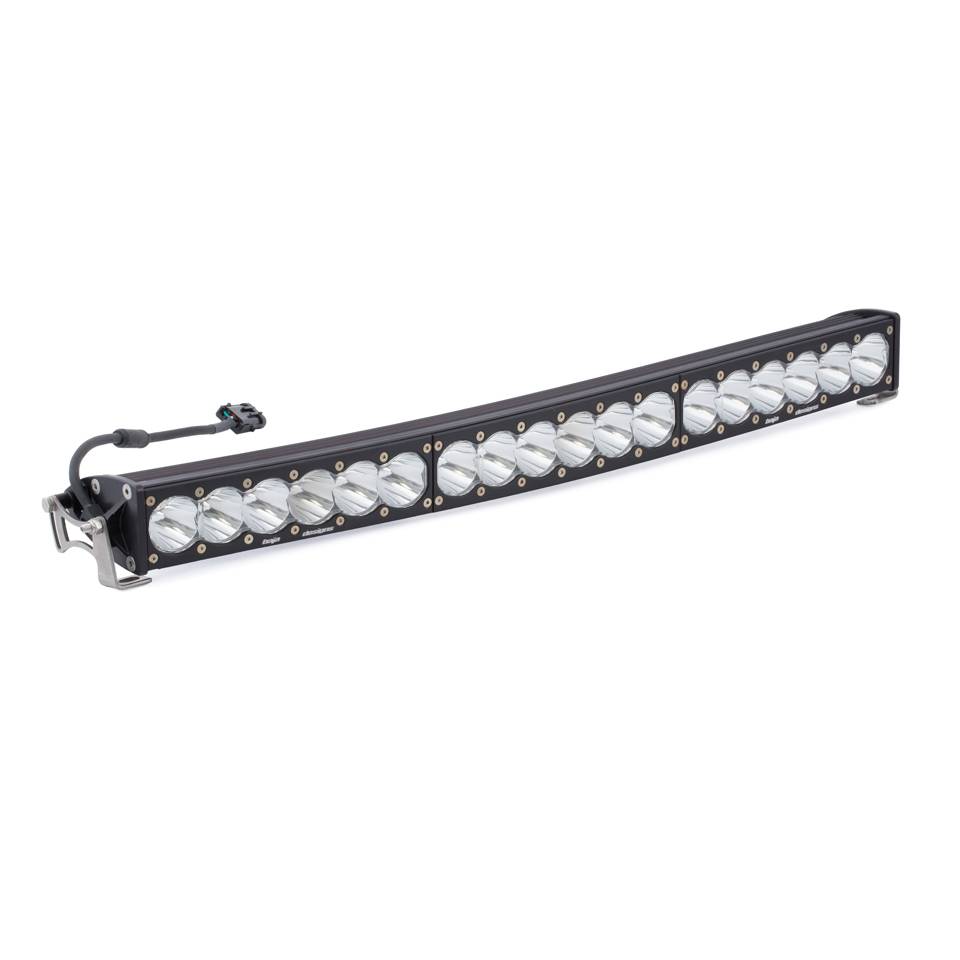

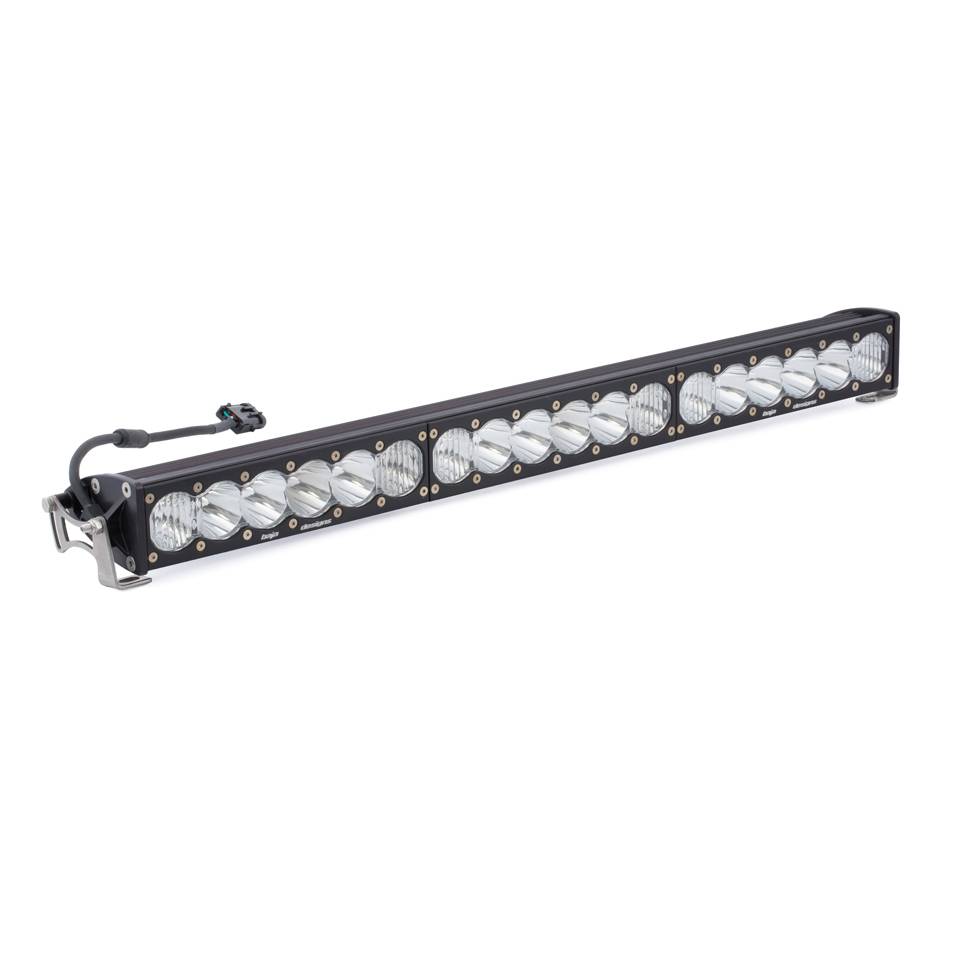

OnX6+ LED Light Bar 30" Universal Baja Designs

453003, 453001, 453004, 453013, 453014, 523003, 523001, 523004
Includes:

- OnX6+ 30” LED Light Bar
- Mounting Brackets
- Hi-Low Dongle
Pricing: $1,132.95

Customize Your Item

- -
 * required
- -
 * required
Qty:

Description

At an impressive 31,910 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.




This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.



Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
Dimensions: 30" x 4.29" x 2.69"
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)






***Please note that this light does NOT include a harness and the applicable harness to this light is 640119***



Patterns:

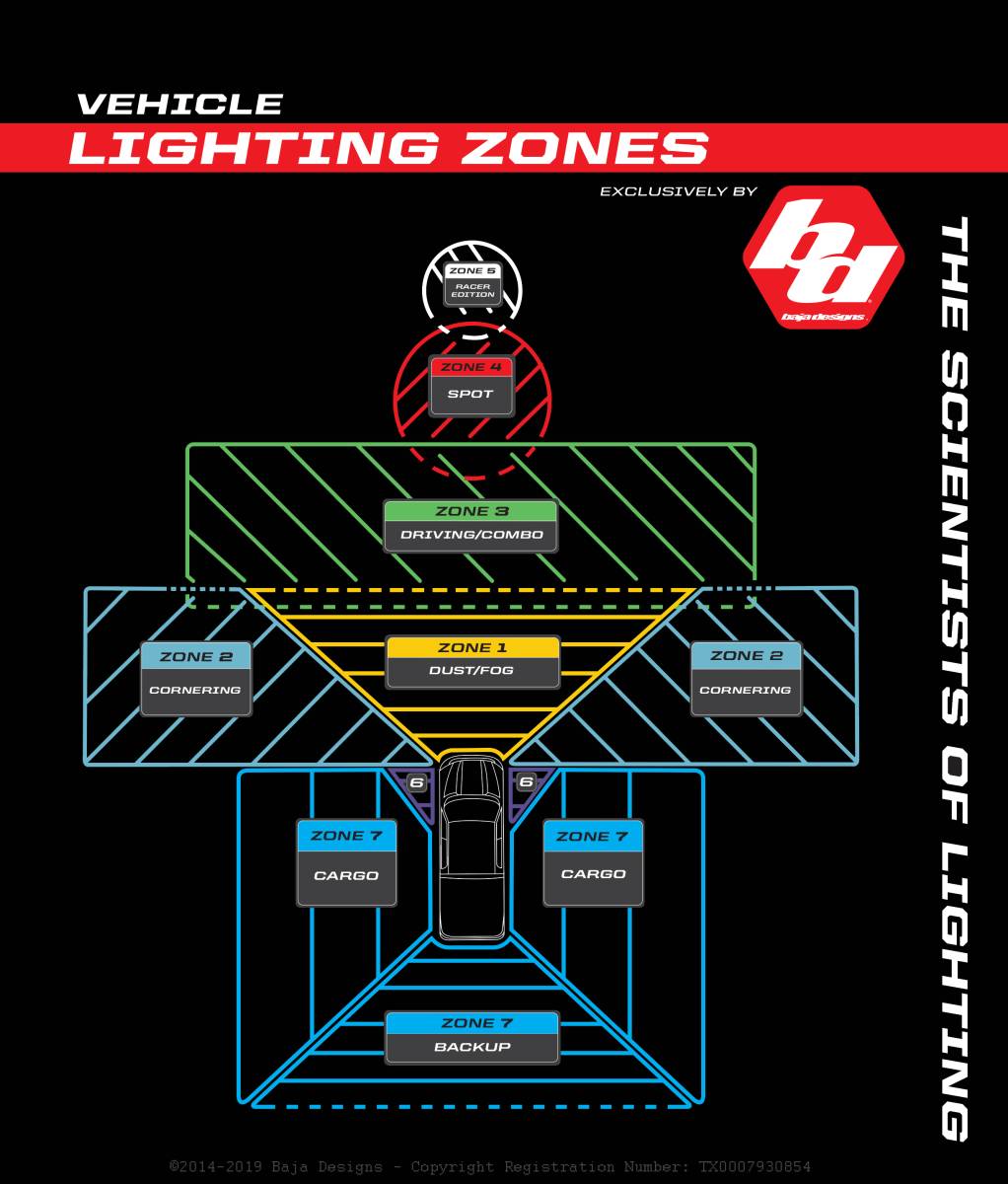

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Details

  • 453003, 453001, 453004, 453013, 453014, 523003, 523001, 523004
  • 453003, 453001, 453004, 453013, 453014, 523003, 523001, 523004
  • 852156007064
  • Baja Designs
  • Lighting
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W7.0000” x H5.0000” x L36.0000”
  • This item ships in its own box.
