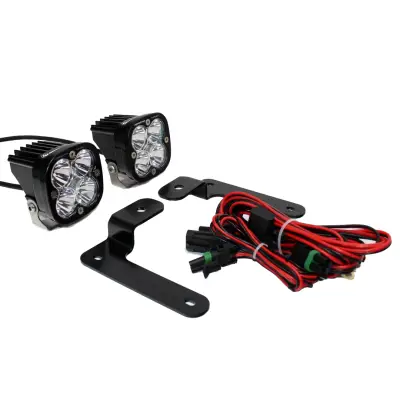

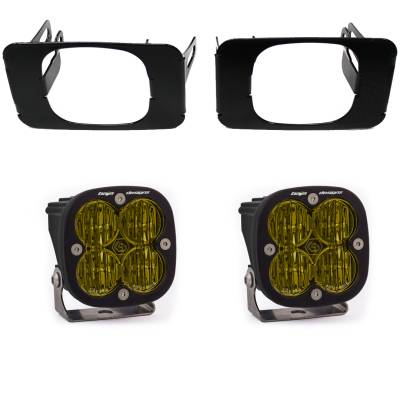

The Ford Super Duty (99-10 F-250 & F-350)  Fog Pocket Kit allows you to mount 2 Squadron Series auxiliary lights in the factory location. This Plug and Play kit includes your choice of two Squadron lights, two vehicle specific mounting brackets and a wiring adapter, allowing you to use your factory switch and mounting hardware.

Baja Designs OEM mount kit allows for easy installation of our 30" OnX6 or 30" S8 LED Light Bar between the tow hooks of any 03-18 Ram 2500/3500. These mounts require absolutely no cutting or modification to mount to your truck. These brackets are CNC Laser cut and are powdercoated Satin Black. 100% Made in the USA.

Compatible with:

-30" OnX6 LED Light Bar

-30" S8 LED Light Bar

Applications:

• Dodge, Ram 2500/3500 (03-18)

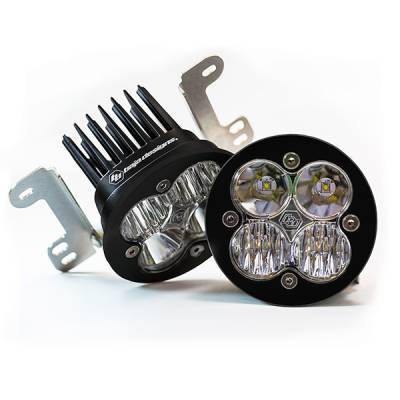

Brand new for Baja Designs is this SAE certified light, based off the popular Squadron series. While there are many visual characteristics that stayed the same; the pattern, and circuitry are optimized in order to give this SAE light a street legal punch!  The Baja Designs team have put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights. This kit includes vehicle specific brackets for the listed vehicle(s) below.

Specifications (Per Light):

Lumens: 2,480 Utilizing 4 Cree LEDs

Wattage/Amps: 22W / 1.6A

Dimensions: 3.07" x 2.77" x 3.07"

Weight: 12 ounces

LED Life Expectancy: 49,930 Hours

Front Lens: Hard Coated Polycarbonate

Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum

Hardware & Bracket Material: Stainless Steel

Exceeds MIL-STD810G (Mil-Spec Testing)

Built-In Overvoltage Protection

IP69K (Waterproof, Submersible to 9ft)

IK10 Compliant (Mechanical Impact Testing)

Applications:

• Dodge, Ram 2500/3500 (10-18)
• Dodge, Ram 1500 (09-12)

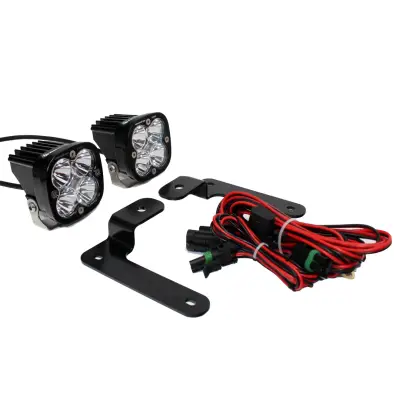

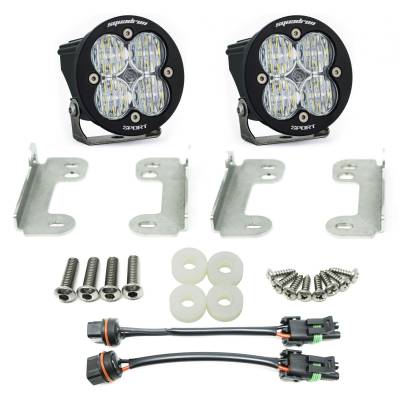

The Ford Super Duty (11-16)  Fog Pocket Kit allows you to mount 2 Squadron Series auxiliary lights in the factory location. This Plug and Play kit includes two Squadron lights, two vehicle specific mounting brackets and a wiring adapter, allowing you to use your factory switch and mounting hardware.

Brand new for Baja Designs is this SAE certified light, based off the popular Squadron series. While there are many visual characteristics that stayed the same; the pattern, and circuitry are optimized in order to give this SAE light a street legal punch!  The Baja Designs team have put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights. This kit includes vehicle specific brackets for the listed vehicle(s) below.

Specifications (Per Light):

Lumens: 2,480 Utilizing 4 Cree LEDs

Wattage/Amps: 22W / 1.6A

Dimensions: 3.07" x 2.77" x 3.07"

Weight: 12 ounces

LED Life Expectancy: 49,930 Hours

Front Lens: Hard Coated Polycarbonate

Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum

Hardware & Bracket Material: Stainless Steel

Exceeds MIL-STD810G (Mil-Spec Testing)

Built-In Overvoltage Protection

IP69K (Waterproof, Submersible to 9ft)

IK10 Compliant (Mechanical Impact Testing)

Applications:

• Canyon/Colorado (15-19)
• Sierra 2500/3500 (15-19)
• Silverado 2500/3500 (15-19)

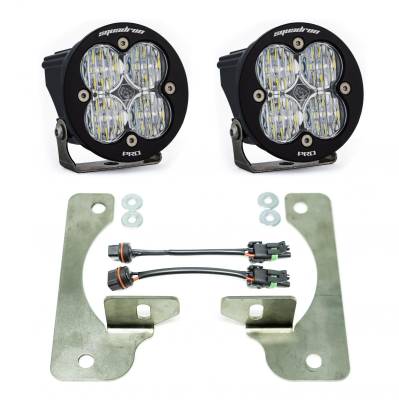

Brand new for Baja Designs is this SAE certified light. This light is based off of our Squadron series. While there are many visual characteristics that stayed the same the pattern, and circuitry are optimized in order to give our SAE light a street legal punch!  We’ve put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights. This kit includes vehicle specific brackets for the listed vehicle(s) below.

Application:

• Ford F-150 (15-20)
• Ford F-250 (17-20)
• Ford F-350 (17-20)

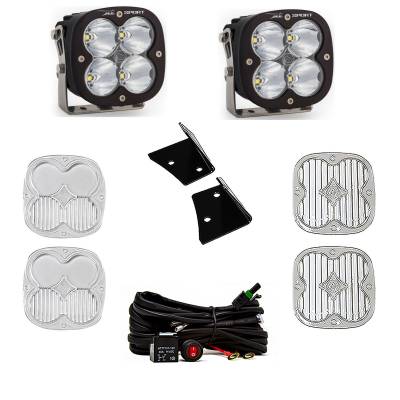

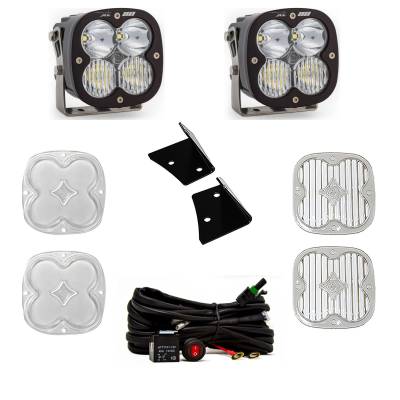

Baja Designs has created a way for you to mount a pair of XL Sport Driving Combo LED Lights on your A-pillar without having to modify a thing on your Dodge Ram 2500. If you're looking for a clean way to mount more light on your vehicle look no further!

Lighting Specifications:

Application:

• Ram 2500/3500 2019+ (Tradesmen, Big Horn, Laramie, Longhorn, Limited, Power Wagon)

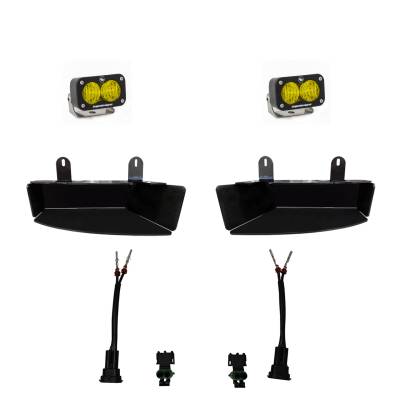

The Baja Designs Fog Pocket kit is the perfect lighting performance modification for your 2500/3500! Available in White or Amber, this kit utilizes the factory fog pocket location to pack one S2 Sport light on each side. This kit is features a plug and play wiring system allowing for use of your factory fog light switch. If you're looking to add not only safety but lighting performance this is your kit!

x2 S2 Sport White:

Applications:

• Dodge, Ram 2500/3500 (19+)

***Fits trucks with small fog light openings in bumper, see installed image for details***

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your 2500/3500 Big Horn! Available in White or Amber, this kit utilizes the factory fog pocket location to pack a Squadron Sport light on each side. This kit is controlled by the factory fog switch. If you're looking to add not only safety but lighting performance this is your kit!

x2 Squadron Sport:

Applications:

• Dodge, Ram 2500/3500 with Big Horn (19+)

***Fits trucks with large fog light openings in bumper, see installed image for details***

The 2019-On Dodge Ram 2500/3500 Dual S2 Reverse Kit has your back! If your stock reverse lights are not cutting it in the dirt or in your daily life, Baja Designs has a solution for you. This kit comes with everything you need for a simple installation that provides a huge upgrade to your stock lighting.

Application:

• Ram 2500/3500 2019+ (Tradesmen, Big Horn, Laramie, Longhorn, Limited, Power Wagon)

This Baja Honda Talon A-Pillar kit comes with everything you need to have a blast on the trails, or get a leg up on the race course.

This kit includes one pair of Squadron Sport LED lights, outputting a total of 6,300 lumens, greatly enhancing the forward projecting light capabilities of your UTV, while also maintaining its sleek yet aggressive styling.

Squadron Pro and XL80 Light upgrades available as selectable options during check out offering even greater light output.

Baja Designs' 2019 Honda Talon Headlight Kit will help you get the most out of your UTV. This kit utilizes four Squadron Sports (3,150 lumens each). This plug and play mounting kit includes two vehicle specific mounting brackets and a wiring harness, allowing you to use your factory switch and mounting hardware.

Baja Designs' team spent copious amounts of time at the R&D table with this kit, the end result was creating a light kit that will give you the performance and style your Can-Am X3 deserves. With the low amperage draw of the six S1 lights this kit won't draw a substantial amount over the stock lights though will greatly improve your driving experience. With the plug and play wiring system and precision cut and bent brackets installation is a breeze. If you're looking for lights that will set your X3 apart from the crowd and also give you race quality lighting this is the kit for you!

Now you can have the best of both worlds with the OnX6™ Dual Control LED Light Bar.  With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.


This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Patterns:
Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

***Please note that this light does NOT include a harness and the applicable harness to this light is 640119***

At an impressive 31,910 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

***Please note that this light does NOT include a harness and the applicable harness to this light is 640119***

Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

The Polaris RZR Mount Kit has been manufactured specifically for the Polaris RZR.  The A-Pillar mount gives you the option to mount either a 30” OnX6™ LED Light Bar or a 30” S8 LED Light Bar, providing you with a clean OEM appearance.

Compatible Models:

• Polaris RZR 800/900 (2009-2014)
• Polaris RZR XP1000 (2014-ON)

Note: OnX6 & S8 LED Light Bars sold separately

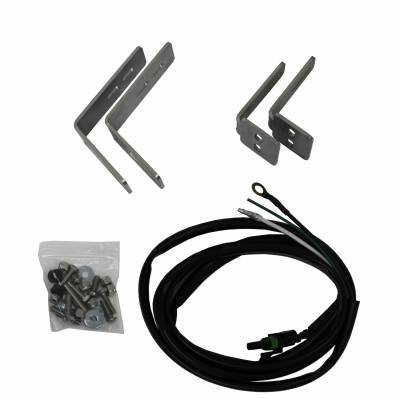

Baja Designs' engineers came up with a quick, sturdy, and low profile design to mount lights on the cage of your RZR 1000. You will be able to mount these with ease, and have a range of Baja Designs auxiliary lighting to choose from.

Applicable Product

• S2 Series
• Squadron Series

Note: Lights sold separately

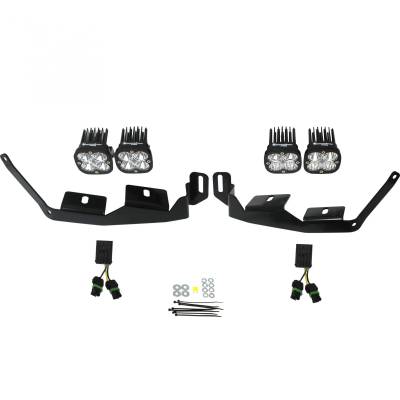

Separate yourself from the pack with the Baja Designs Polaris RZR XP1000/RS1 "Sportsmen" Headlight Kit (2014 - Current). This kit utilizes four Squadron Sports (2,260 lumens each). The need for front bumper lighting or roof mounted light bars are a thing of the past. This plug and play mounting kit includes two vehicle specific mounting brackets and a wiring harness, allowing you to use your factory switch and mounting hardware.

 Application:

• RZR XP 1000 2014-Current
• RZR RS1 18-Current
• RZR 1000 Turbo-S 18-Current

Designed from the ground up the Baja Designs S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. With the 2.1" length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you're looking for a light to drive off of, or something to light up a campsite the S1 will exceed your expectations!

Patterns:


Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.


Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

Baja Design’s latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 19,050 lumens of pure power, low amp draw of 12 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

***Please note that this light does NOT include a harness and the applicable harness to this light is 641022.***

Patterns:


Driving/Combo: Maximum trail coverage in a single light.The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)

These LED lights are waterproof and can be mounted virtually anywhere. All that is needed is 12 volt power. They have a 180 degree optic to illuminate your cab, engine bay, wheel wells or anywhere else you need a bright and smooth light.

Caution: Dome Light w/ Switch can get very hot when used for long periods of time. Please use caution when handling or installing.

Lumens: 400

Watts/Amps: 4/.40

Dimensions: 2.7 x 1.2" x .45" - 1.8oz

Features:

- Includes tube mounts

NOTE: These lights will only work with a 12 volt charging system.

Available Colors:

• Amber
• Blue
• Green
• Red
• White

These LED lights are waterproof and can be mounted virtually anywhere. They have a 180 degree optic to illuminate your cab, engine bay, wheel wells or anywhere else you need a bright and smooth light.

Caution: Rock Light can get very hot when used for long periods of time.  Please use caution when handling or installing.

Lumens: 400

(In White)

Watts/Amps: 4/.40

Dimensions: 2.7 x 1.2" x .45" - 1.8oz

Available Colors:

• Amber
• Blue
• Green
• Red
• White

Baja Designs' Universal Rock Light Kit takes the guess work out of buying wiring and trying to figure out how to pin relays. All of the lengths are pre-cut to reach all four corners of your small to mid-sized vehicle with some wiggle room on each lead to route the wiring any desired way. This kit includes four 400 lumen rock lights and wiring for a truly turn key kit.

These LED lights are waterproof and can be mounted virtually anywhere. All that is needed is 12 volt power. They have a 180 degree optic to illuminate your wheel wells or anywhere else you need a bright and smooth light.

Caution: Rock Light can get very hot when used for long periods of time. Please use caution when handling or installing.

Available Colors:

• Amber
• Blue
• Green
• Red
• White
