S1 LED Light Universal Baja Designs

387801, 387815, 387805, 387806

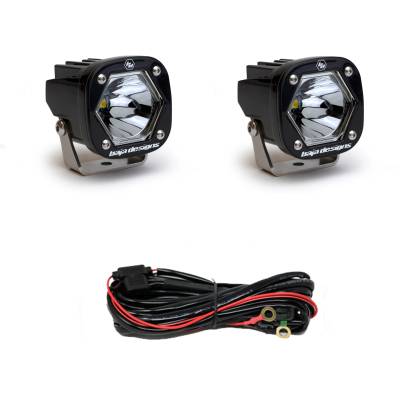

Includes:

- x2 S1 LED Light
- Mounting Bracket
Pricing: $232.95

Customize Your Item

- -
 * required
Qty:

Description

Designed from the ground up the Baja Designs S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. With the 2.1" length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you're looking for a light to drive off of, or something to light up a campsite the S1 will exceed your expectations!



Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (Per Light):
Lumens: 2,375 Utilizing 1 LED
Wattage/Amps: 20W / 1.45A
Dimensions: 2.1" x 2.1" x 2.1"
Safe Voltage Range: 9-28V
Weight: 0.4 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)



Patterns:


Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

Details

  • 387801, 387815, 387805, 387806
  • 387801, 387815, 387805, 387806
  • 810031740284
  • Baja Designs
  • Lighting
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
  • W7.0000” x H5.0000” x L7.0000”
  • This item ships in its own box.
