Squadron Sport LED Light Universal Baja Designs (Pair)

557801, 557803, 557805, 557806, 557811, 557813, 557815, 557816
Includes:

- (2) Squadron® Sport LED Lights
- Mounting Brackets
- Wiring Harness
Pricing: $249.95

Customize Your Item

- -
 * required
Qty:

Description

Two is always better than one, right?? We think so, which is why we’re offering a pair of Squadron® Sport LED auxiliary lights with wiring harness at a great price.? Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies.? The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts per light, making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:
Satisfactions Guarantee –?30 Day Money Back
Guarantee
Limited Lifetime Warranty?– Complete Purchase Protection
uService®?– Replaceable Lenses And Optics
ClearView®?– All The Light, Right Where You Need It.
MoistureBlock?– Waterproof, Rain Proof, Submersible
CopperDrive®?– Only LED Driven At 100%
5000K Daylight?– Less Driver Fatigue, Natural Color

Specifications (per light):
Lumens:?3,150 Utilizing 4?LEDs
Wattage/Amps:?26W / 2A
Dimensions:?3.07" x 2.77" x 3.07"
Weight:?12 ounces
LED Life Expectancy:?49,930 Hours
Front Lens:?Hard Coated Polycarbonate
Housing:?Powder Coated Cast Aluminum
Bezel:?Billet Machined Aluminum
Hardware & Bracket Material:?Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
?

Please note that this light does include a harness though if you’re interested in an upgraded harness please look up part: 640117


Patterns:

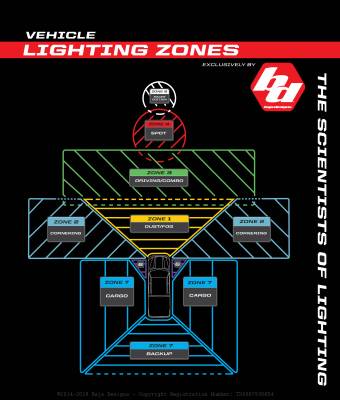

Driving/Combo:? Maximum trail coverage in a single light.? The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering:?BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot:?A longer and narrower 9° beam focus for illumination further down the trail or road.? The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene:?Excellent work light or “scene light” with an extremely smooth?120° circle that projects about 40ft.? This pattern is not suitable for driving. (Lighting Zone 7)
