2003-2018 Cummins Fleece Auxiliary Heated Fuel Filter Kit

Introducing our full-featured fuel filter conversion kit for the 2003-2018 Dodge Cummins.  This kit builds off our standard kit with the addition of an integral high-flow fuel heating element. The kit includes everything you need to properly route, plumb and filter fuel for your Cummins engine from a Fleece Performance lift pump to the injection pump.  Our kit improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost with a lower cost Donaldson filter.

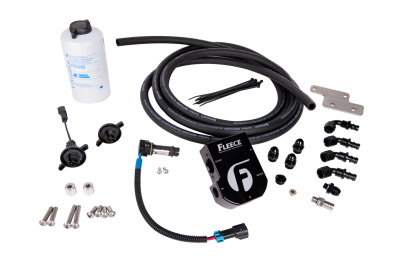

Kit includes:

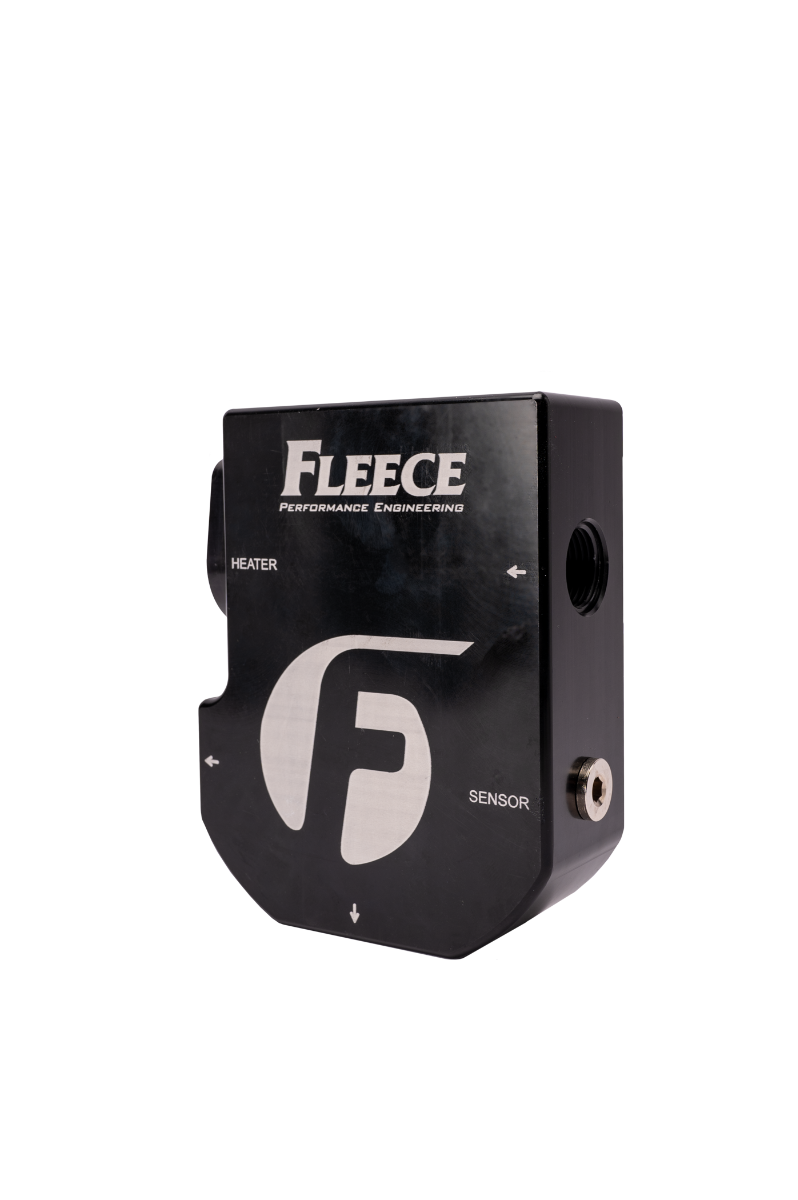

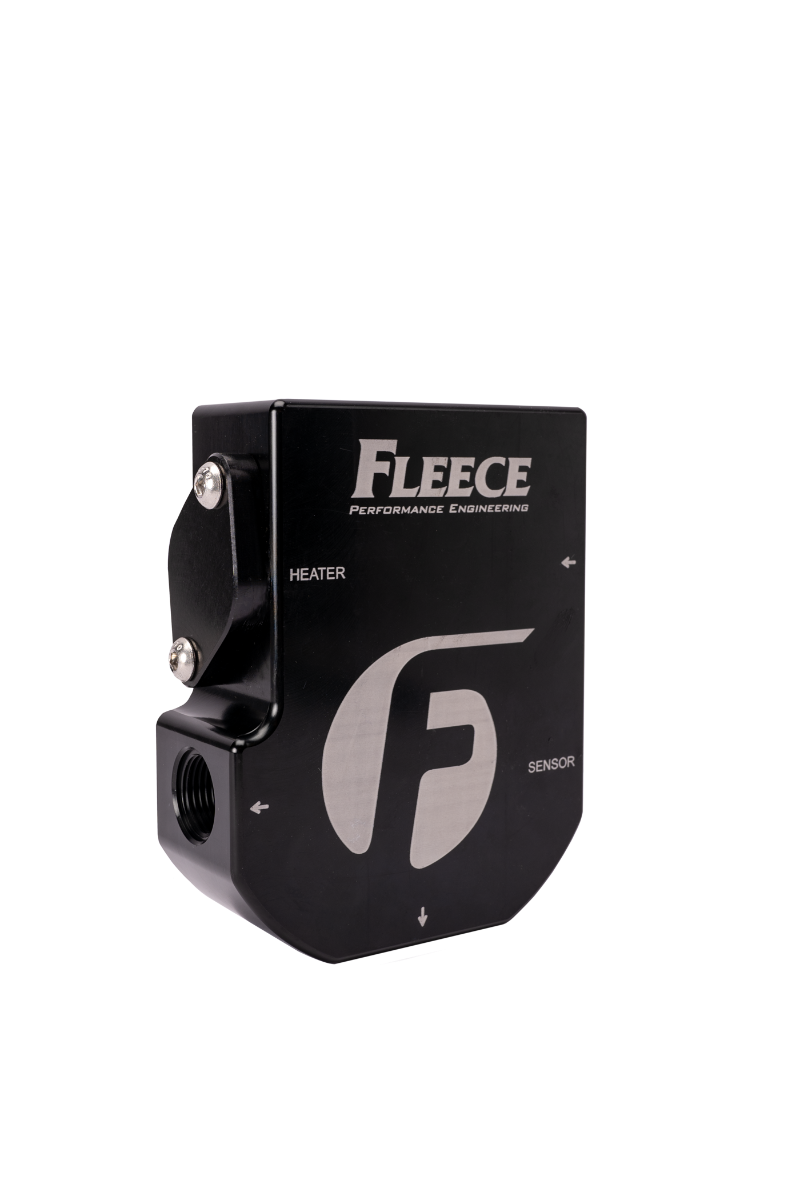

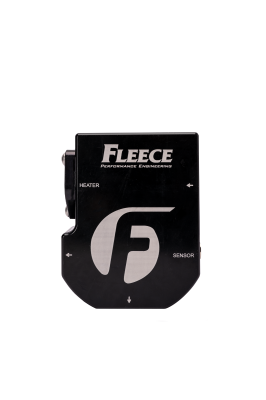

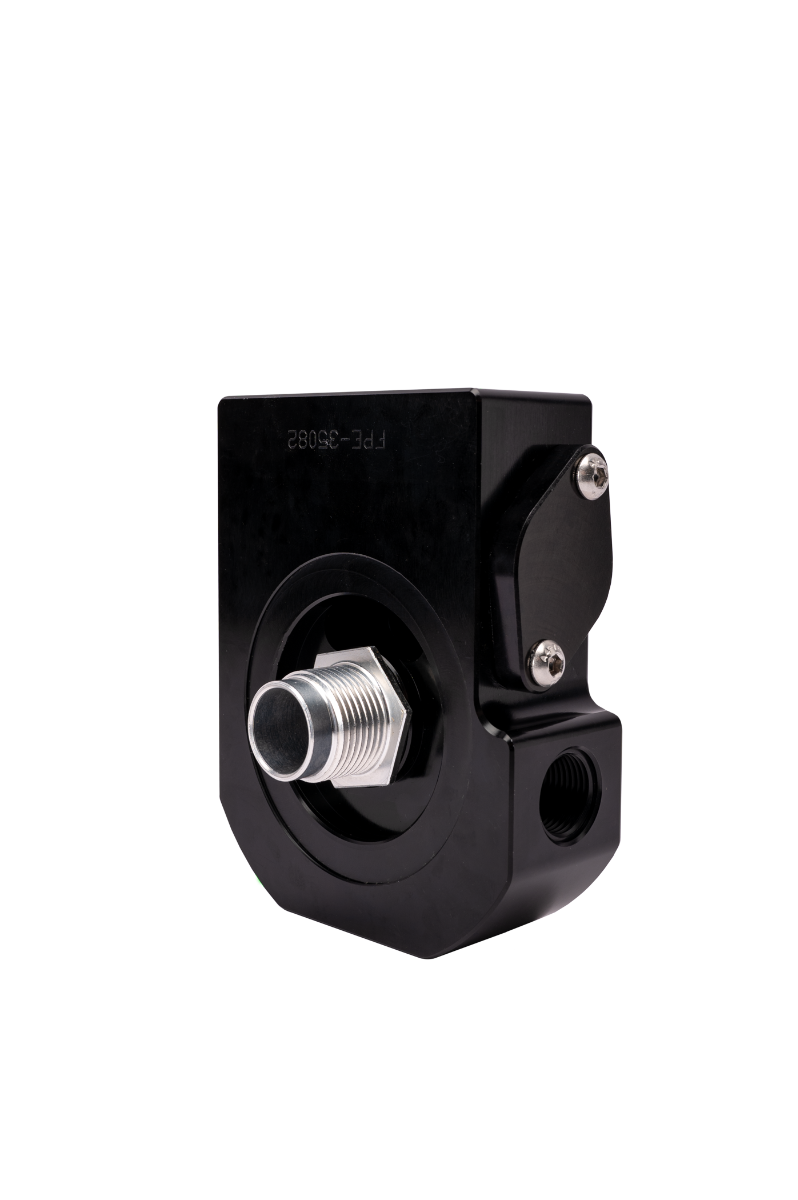

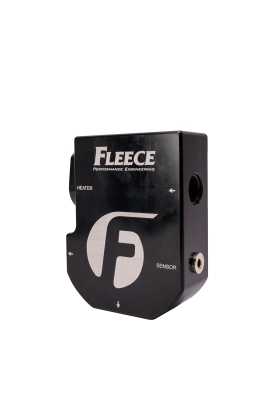

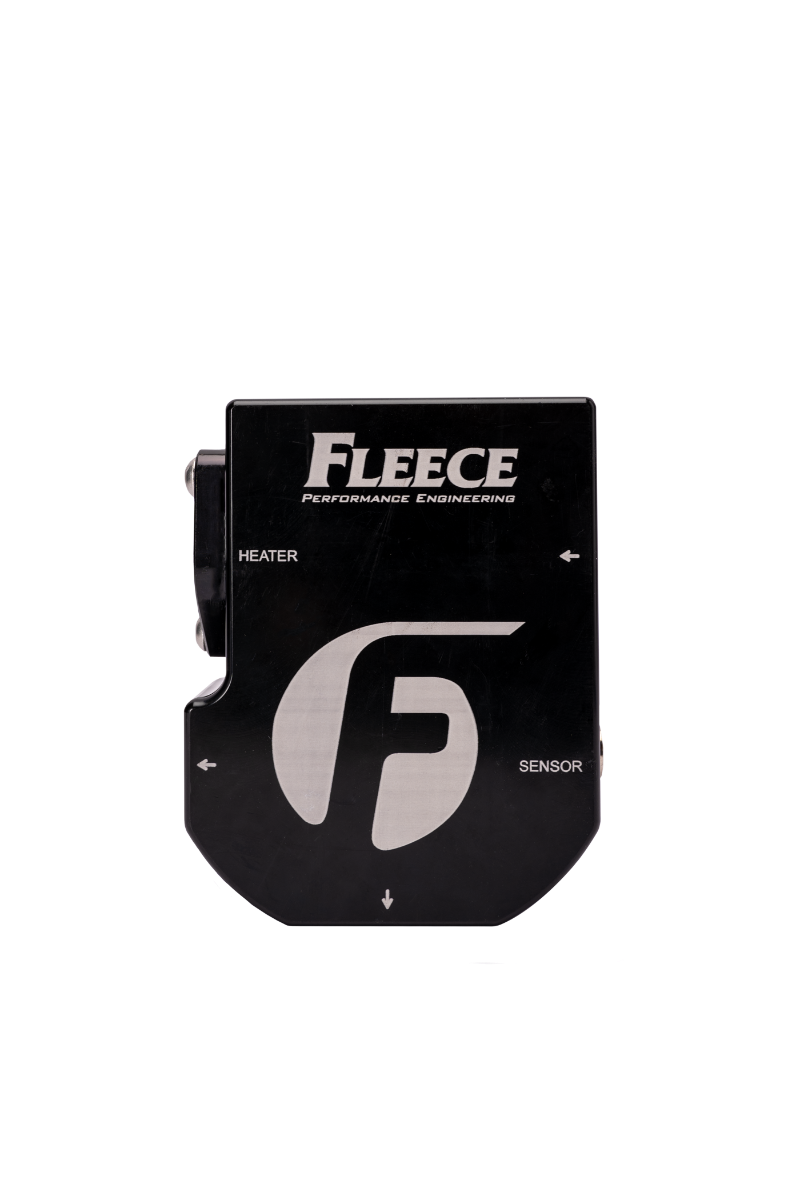

• Fuel filter base with integral heater and mounting hardware
• Donaldson 3 micron fuel filter and water separator
• Push Lock hose and all necessary AN and barb fittings
• CP3 Feed fittings for 5.9L and 6.7L CP3 pumps
• Water-In-Fuel (WIF) sensor and adaptation harness

Fuel heater specifications:

• Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4F
• At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element
