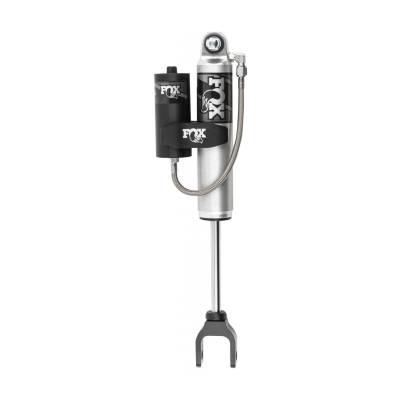

2020-2024 Duramax Fox 2.0 Performance Series RR Front Shock for  1.5" to 2.5" of Front Lift

985-24-244
- Front Shock (Single)
- For Leveled Trucks running Aftermarket Upper Control Arms such as Cognito or Kryptonite and 1.5" to 2.5" of Front Lift
Pricing: $339.95

Qty:

Description

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

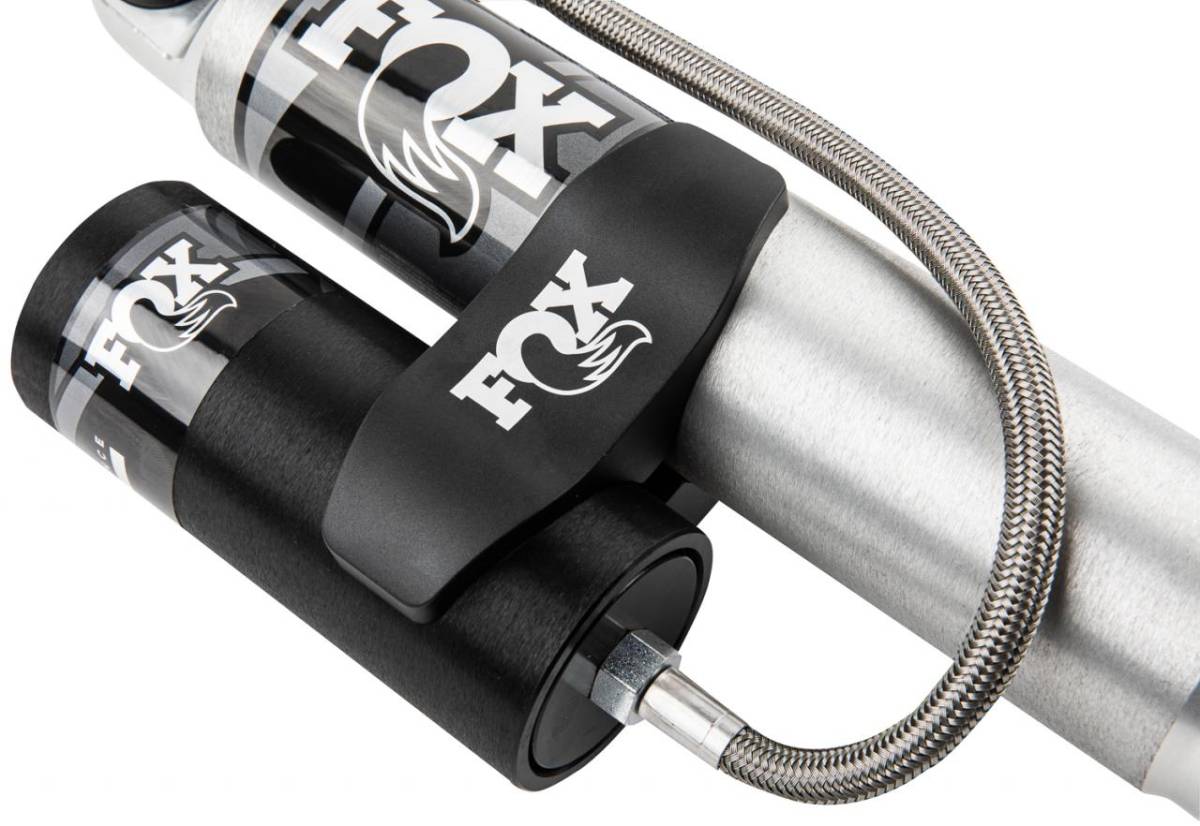

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - 2.0" Smooth bore 6061-T6 Aluminum is hard anodized

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 18.890 inches

Compressed - 12.780 inches

Travel - 6.120 inches

Top Mount - Bar Pin

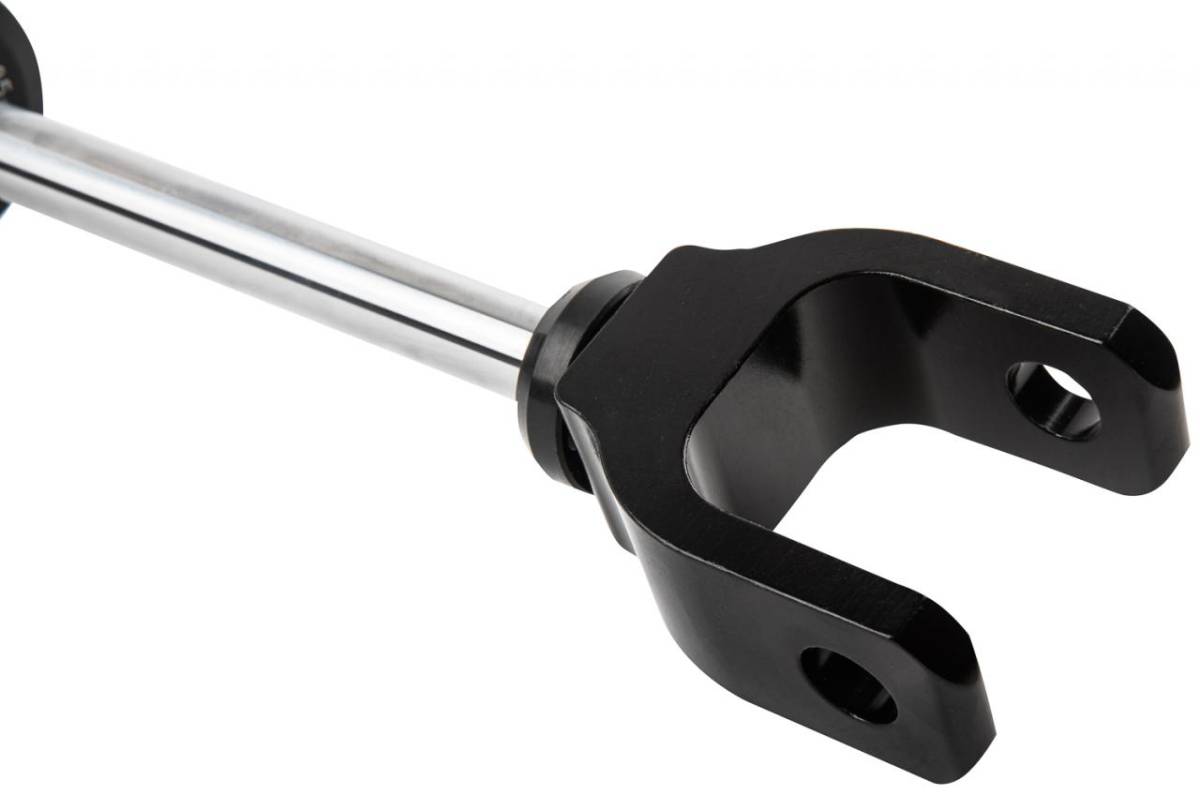

Bottom Mount - Clevis

FITMENT NOTE - Requires Upper Control Arm

Details

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W25.0000” x H3.0000” x L6.0000”
  • This item ships in its own box.
