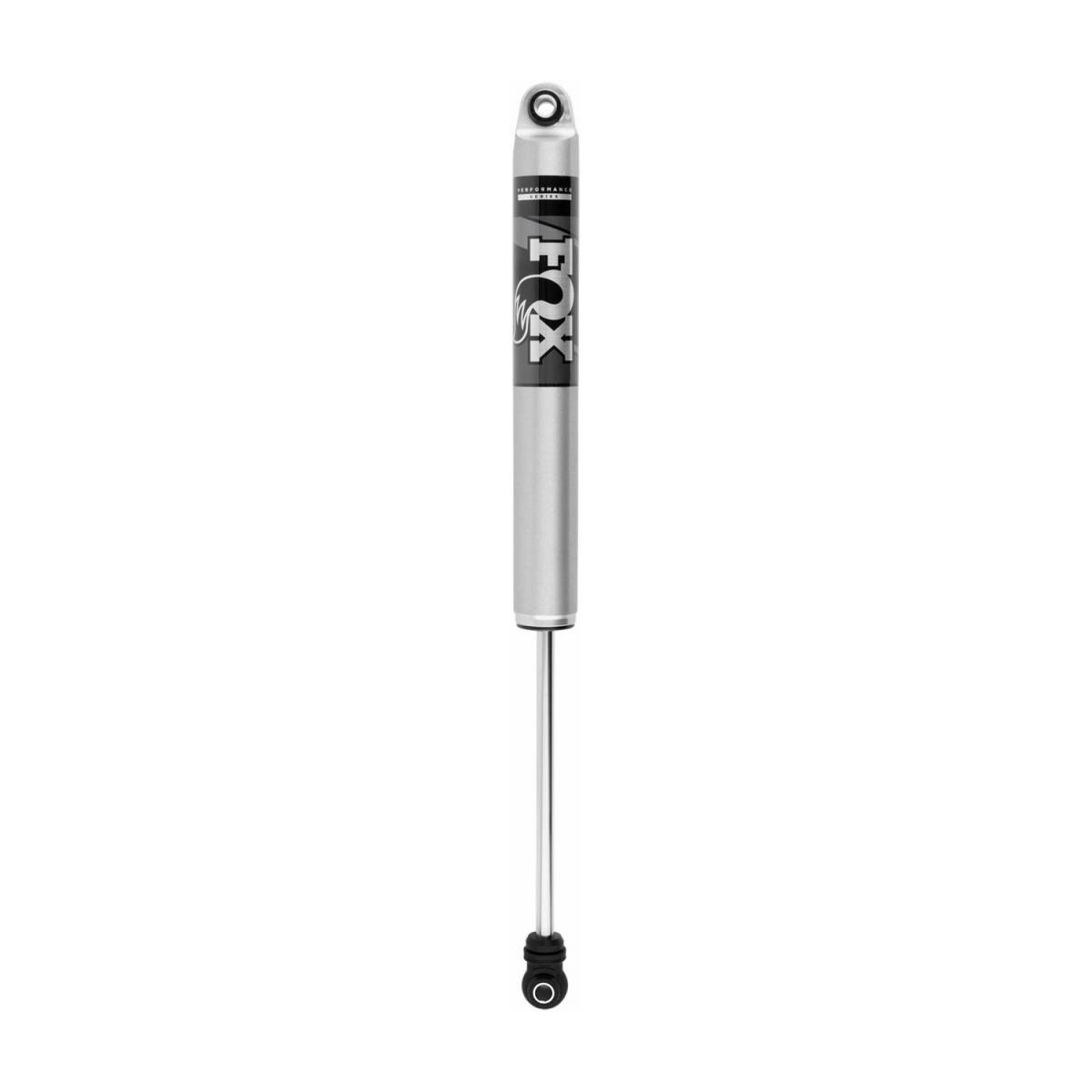

2020-2024 Duramax Fox 2.0 Performance Series IFP Rear Shock for  1.5" to 3" of Rear Lift

985-24-241
- Front Shock (Single)
- For Leveled / Lifted Trucks with 1.5" to 3.0" of Rear Lift
Pricing: $199.95

Qty:

Description

Fox Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Leveled / Lifted 2020-2024 GM 2500 / 3500 HD Truck. They use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find race-proven performance valving technology. Fox's Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - Internal IFP mono-tube reservoir design

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 26.720 inches

Compressed - 17.100 inches

Travel - 9.620 inches

Top Mount - Eyelet

Bottom Mount - Eyelet

Details

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W25.0000” x H3.0000” x L6.0000”
  • This item ships in its own box.
