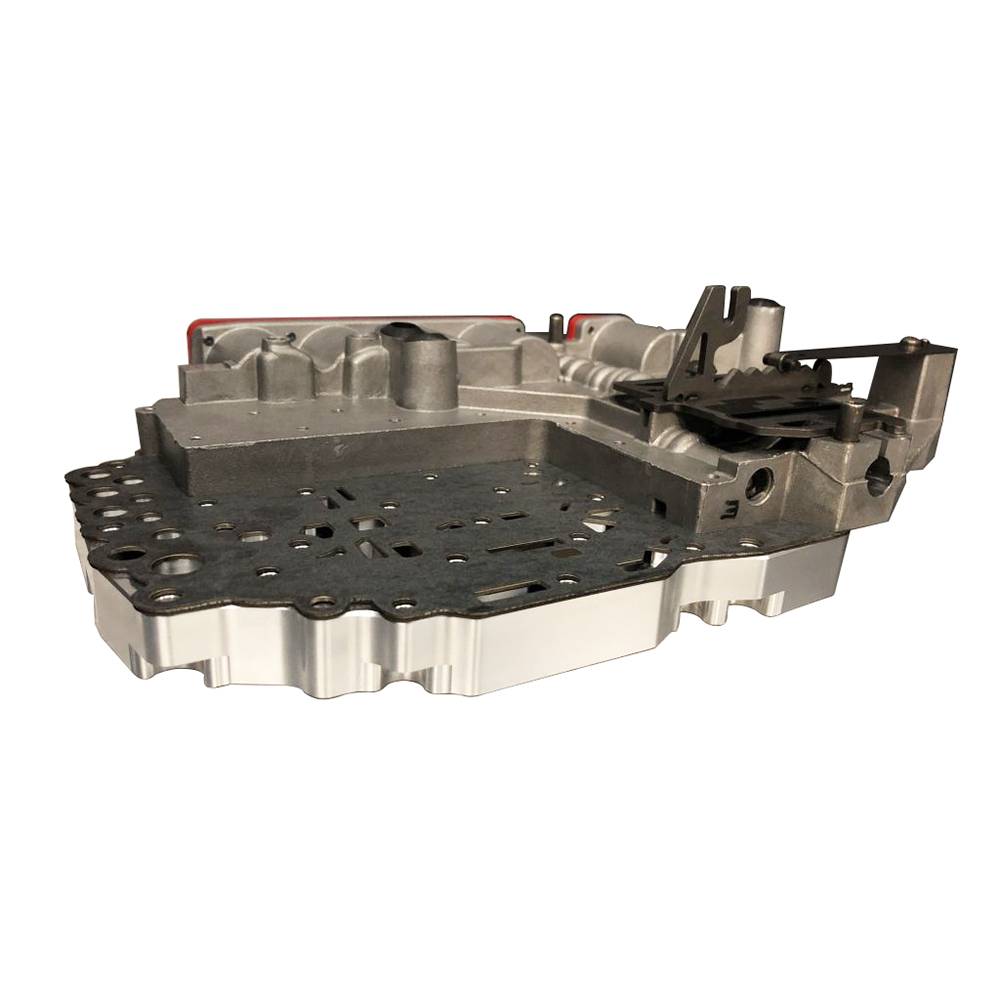

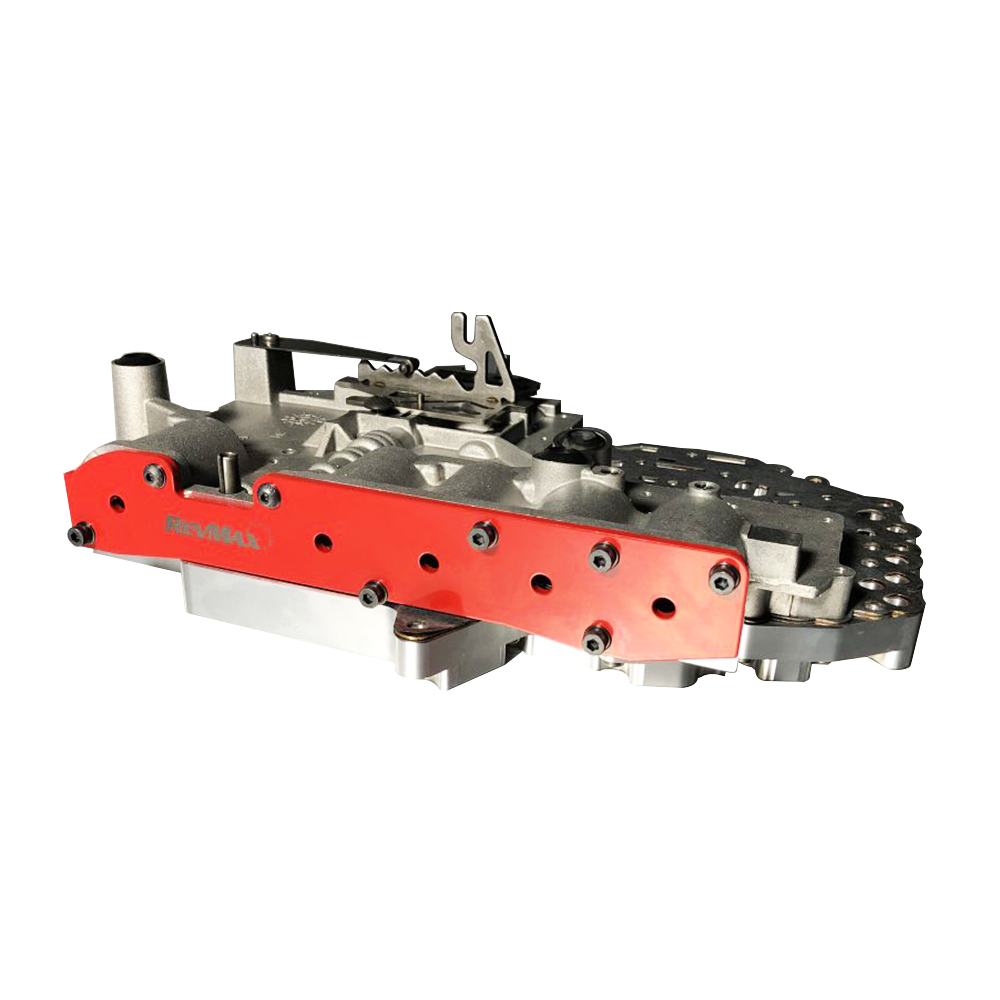

2007.5+ Cummins RevMax ZeroFlex 68RFE Billet High Performance Towing/HD Valve Body

68RFE-300A, 68RFE-301A, 68RFE-301B
- 6061 billet aluminum construction
- Deep critical worm tracks
- .0003 flatness across the entire plate. The only truly flat billet channel plate!
- Micro polished worm track surface. There are no visible or perceptible machining marks or stepovers. This ensures no chance of any leaking due to machining marks.
- Large Radius machining on the filter cutout increases rigidity yet allows the use of a stock filter assembly.
- Angle milled step downs increase rigidity in problematic flexing areas.
- Ability to run up to 325psi of line pressure without any warpage! (transmission tuning, TCM upgrade or pressure box is needed) No pump modifications required for up to 250psi!
- Proprietary worm track layout
- Shortened Shift Times for crisp, clean shifts
- Upgraded valve body to case seals
- Billet Steel SSV Solenoid Switch Valve and End Plugs
- Revmax Triple Double 3/2 Billet Accumulator Pistons with Dual Seals
- Upgraded grade 8 custom fasteners
- Upgraded Steel accumulator housing plate that is 3x thicker than stock
- RevMax proprietary accumulator springs for improved 3-4 shift feel
- RevMax proprietary separator plate with the bonded gasket that eliminates cross leaks and warpage issues
- Revmax proprietary upgrades
- Hand assembled in Charlotte, NC by Qualified and Caring Professionals!!
- Mounting Surface Verified and Flat Filed
- Threads Checked and Repaired if Needed
- Computerized testing on RevMax's state of the art valve body test machines
- Ability to run up to 325psi of line pressure without any warpage! (transmission tuning, TCM upgrade or pressure box is needed) No pump modifications required for up to 250psi!
Pricing: $1,299.00

Customize Your Item

- Billet Valve Body Core Charge -
 * required
- Model Year -
 * required
- Core Return Shipping Label -
 * required
Qty:

Description

68RFE High-Performance Towing/HD Valve Body

Are you having 68RFE valve body issues or just looking to upgrade your truck's valve body for improved performance and reliability? RevMax is an industry leader in high-performance diesel transmission valve bodies and our go to choice for 68RFE upgrades here in the shop. There are a lot of other competitors out there offering valve body options and sometimes it may seem hard to differentiate what’s what and why RevMax options may be a little bit more expensive than some, so let us try to help outline the experience and quality you are purchasing with their products.

RevMax has been offering high-quality computer dyno tested valve bodies for over a decade. All of their technicians have undergone extensive training and are among the best in the industry. Unlike their competitors, they do not do any reaming or valve oversizing by hand. Each and every valve body they rebuild is machined on their state of the art Haas CNC milling machines, just like the factory did when they made the valve body originally. By the use of these machines, they eliminate human error that is very common when valve bodies are machined by hand. The precise alignment of the reamer to the bore is nearly impossible to get perfect by hand and this is where the CNC machines thrive. RevMax uses a Rennishaw probe to dial in each valve body to the reamer prior to the valve being cut. This allows tolerances within .0005” within the original centerline of the bore. Hand reaming is lucky to keep .002” tolerances. Being off by just .001” can cause valves to stick and sideload which ultimately lead to complete transmission failure.

Each RevMax valve body has a predetermined protocol that is followed for each valve body type. This protocol ensures that you get the highest quality product each and every time. RevMax does not just go through and replace what is bad on each specific valve body, instead, a standard protocol is followed that replaces all known failure prone parts, even if they are still in good working order. In addition, RevMax then checks over the entire valve body to make sure that non-problematic areas are in good working order and if not, they repair these areas as well.

RevMax has proprietary technology and workflow processes that make their product superior to the competition and have the industry's best testing equipment. To start, they vacuum leak test each and every valve body after cleaning. Finally, each valve body is dyno tested on one of their fully computerized valve body dyno machines. The results are compared against a brand new valve body and the data is then stored and available to be viewed by the customer if requested.

The RevMax initial 1” solid version introduced in 2014 and offered for a brief time was a game changer. It provided a perfectly flat, rigid and smooth surface finish but could not be used with stock or some aftermarket deep pans. Seeking to better support their customers' needs, RevMax took their design back through an extensive period of R&D to perfect the design offered today.

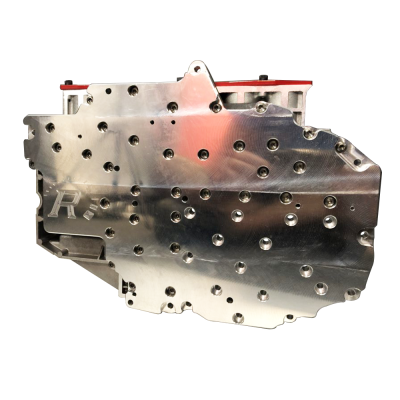

The V2.0 still is 1” thick but this new version has precision cutouts that allow the use of a stock filter and pan. Unlike other designs, this model still has full depth worm tracks in crucial circuits. The other designs we have seen have only a .190” deep worm track in several critical circuits. One restricted circuit is the combined vent track. This track is responsible for all venting operations and in particular the problematic SSV valve. The next restricted circuit is the torque converter clutch signal circuit. Restrictions in this circuit create all kinds of torque converter related concerns including; dragging when coming to a stop, overheating, soft or harsh TCC apply or release and back feed issues resulting in P1776 and P0871 trouble codes. Both the original RevMax Billet Valve Body and V2.0 have nearly full depth worm tracks in these areas which eliminate these issues!

The RevMax V2.0 plate will work with ANY aftermarket transmission pan as well as with stock transmission pans. There is no need to alter any part of the pan or use and special filters. Just install it like you would a stock channel plate and go!

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 40.0 lbs.
  • W16.0000” x H9.0000” x L16.0000”
  • This item ships in its own box.
