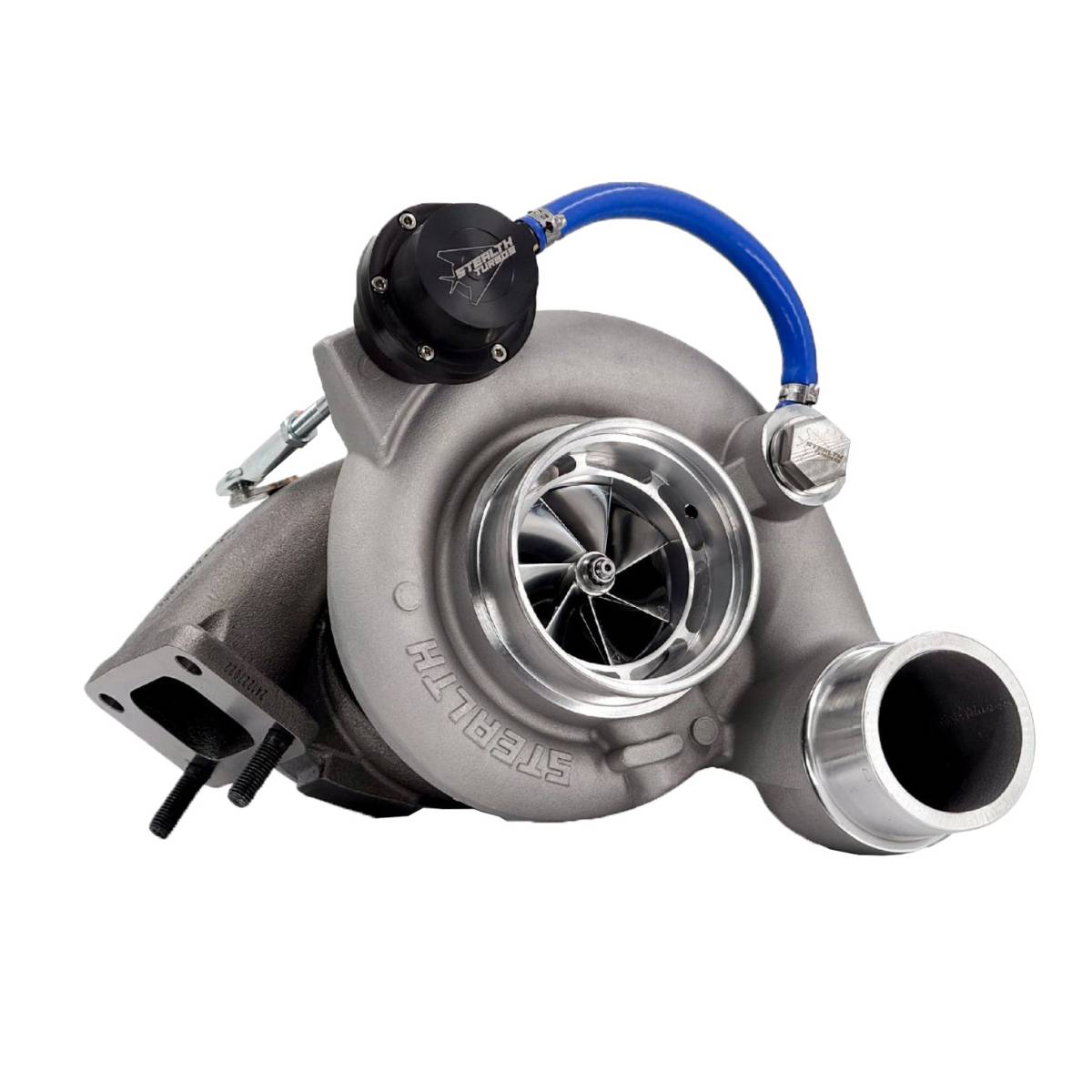

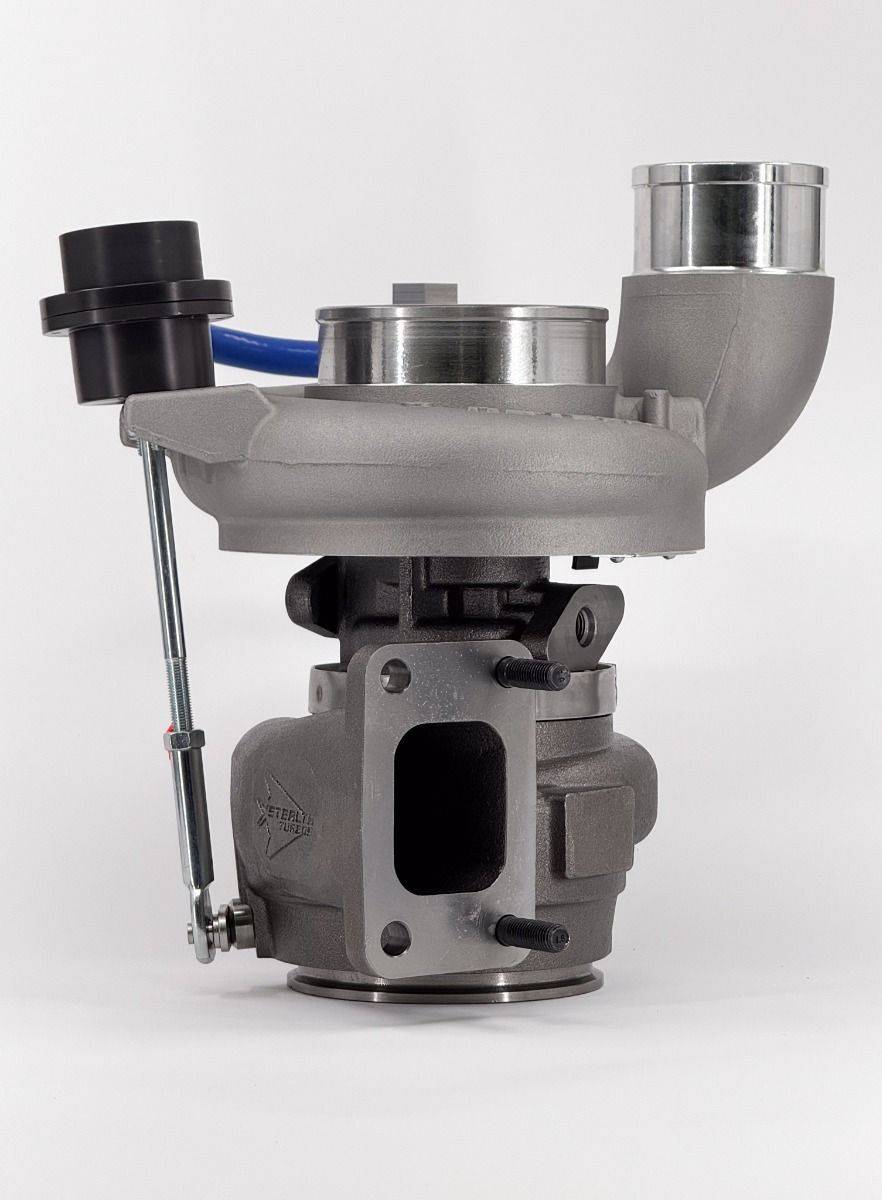

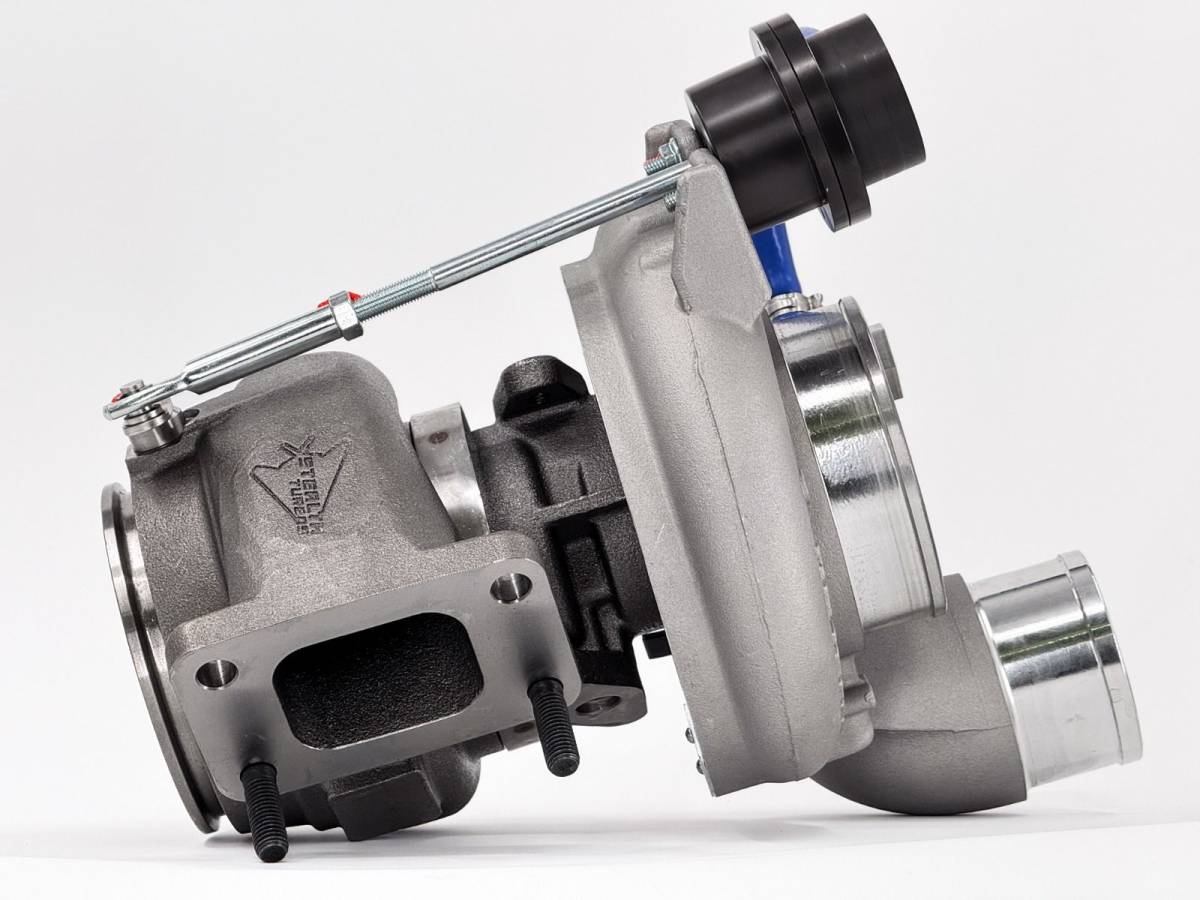

2003-2007 5.9L Cummins Stealth Mach 3 70mm Drop in Turbo

SKU: CPS200325

- Proven to support up to 950 RWHP!
- Class-leading drive to boost pressure ratios
- Superior exhaust flow to other drop-in chargers
- 70mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
- Largest turbine in a 5.9L Cummins turbo
- 72.2mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
- Loud turbo whistle from 9-blade turbine
- Provides maximum boost out of a drop-in charger
- Spools better than comparable S400 turbos
- Improved drive/boost pressure ratios
- 360-degree thrust bearing for increase durability
- Reduces top-end EGTs
- Minimized rotating assembly weight
- Signature Stealth turbo whistle
- Brand New Parts - No core charges
- 1 year unlimited mile standard warranty
- Fits 2003 to 2007 5.9L 3rd-Gen Cummins (Replaces HE351cw/HE341cw Turbos)"
- Supersedes DM1582050800000

Availability: 10-15 business day lead time for powder and ceramic coat options.

Shipping: This Product cannot ship to the state of California

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Pricing: $1,950.00

Customize Your Item

Model Year

- Model Year -

* required

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coating

- Powder Coating -

* required

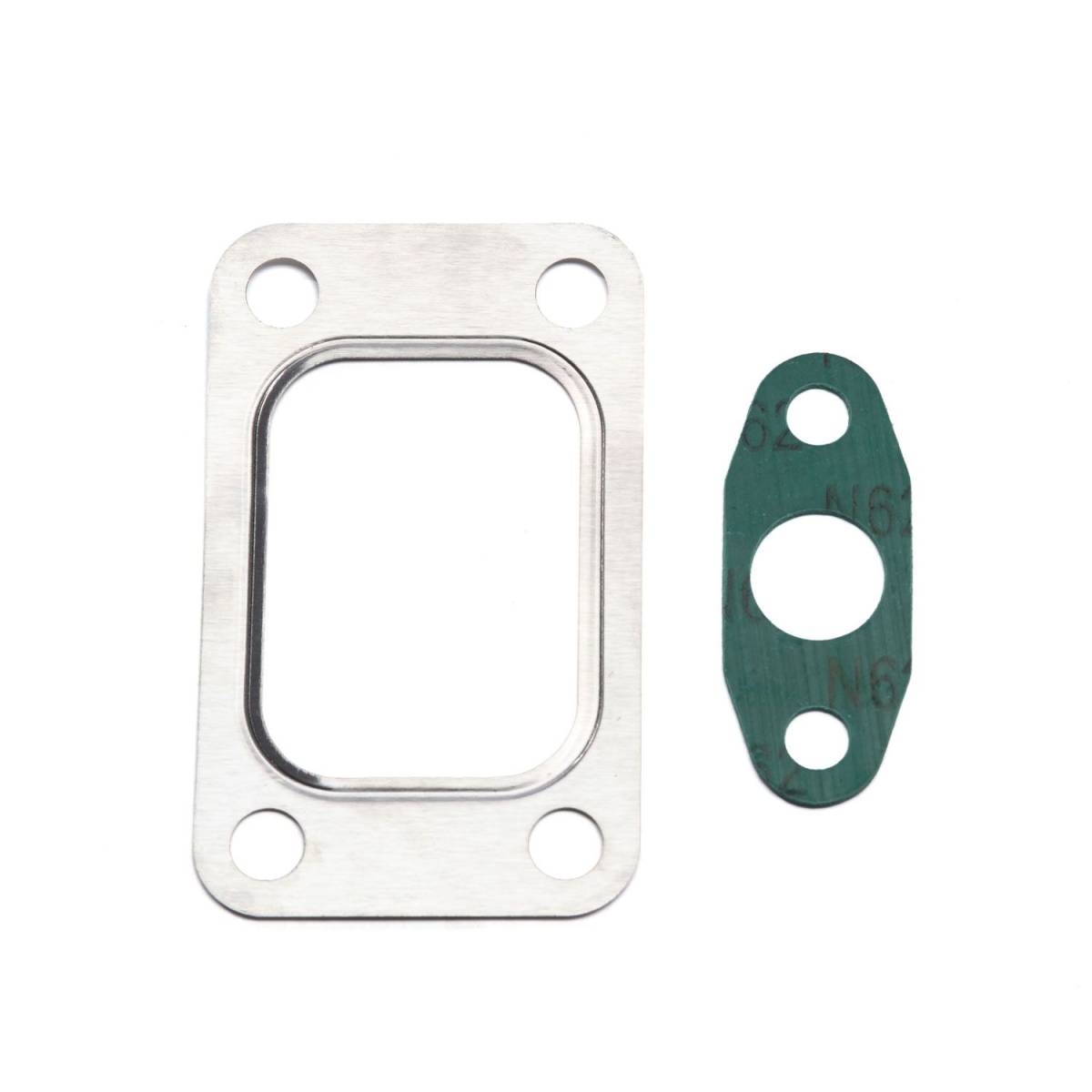

5.9L Turbo Install Hardware Kit

03-07 Turbo Install Kit

- 03-07 Turbo Install Kit -

* required

Upgraded Oil Feed Line Kit

91-18 Turbo Oil Feed Line Kit

- 91-18 Turbo Oil Feed Line Kit -

* required

Upgraded Oil Drain Line Kit

03-07 5.9L Turbo Oil Drain Kit

- 03-07 5.9L Turbo Oil Drain Kit -

* required

Exhaust Manifold

- Exhaust Manifold -

* required

Stainless Exhaust Manifold Stud Kit

Stainless Exhaust Manifold Stud

- Stainless Exhaust Manifold Stud -

* required

VGT Exhaust Housing Finish

- VGT Exhaust Housing Finish -

* required

Qty:

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Description
Video
Details
Shipping
Reviews

Description

Built to dominate, and tested to prove it — this is the ultimate 3rd Gen drop-in turbo upgrade. Engineered for serious competition, it features advanced modifications like our custom Super Flow exhaust housing, a massive 72mm turbine wheel, a 70mm billet extended-tip compressor wheel, and a precision-machined billet wastegate actuator. This turbo is the pinnacle of 3rd Gen performance — and it will absolutely blow you away.

This turbo is a great fit if you...

Want the most powerful drop-in turbo for your Cummins
Want to make big power and look factory/stock
Are considering upgrading to a S400 style turbo
Want to win your sled pulling class
Have major fuel mods done to your 5.9L Cummins
Want to make up to 950HP out of your 5.9L Cummins

KEY FEATURES

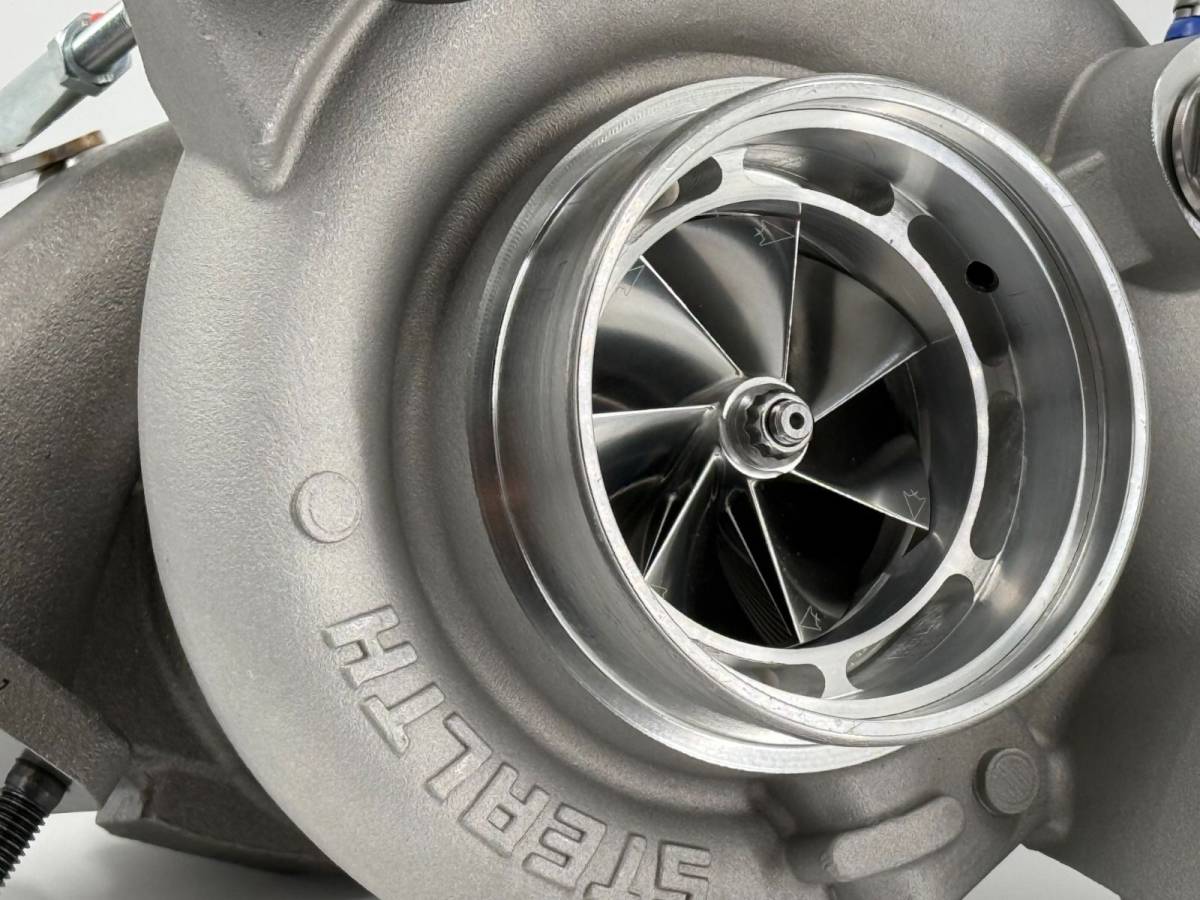

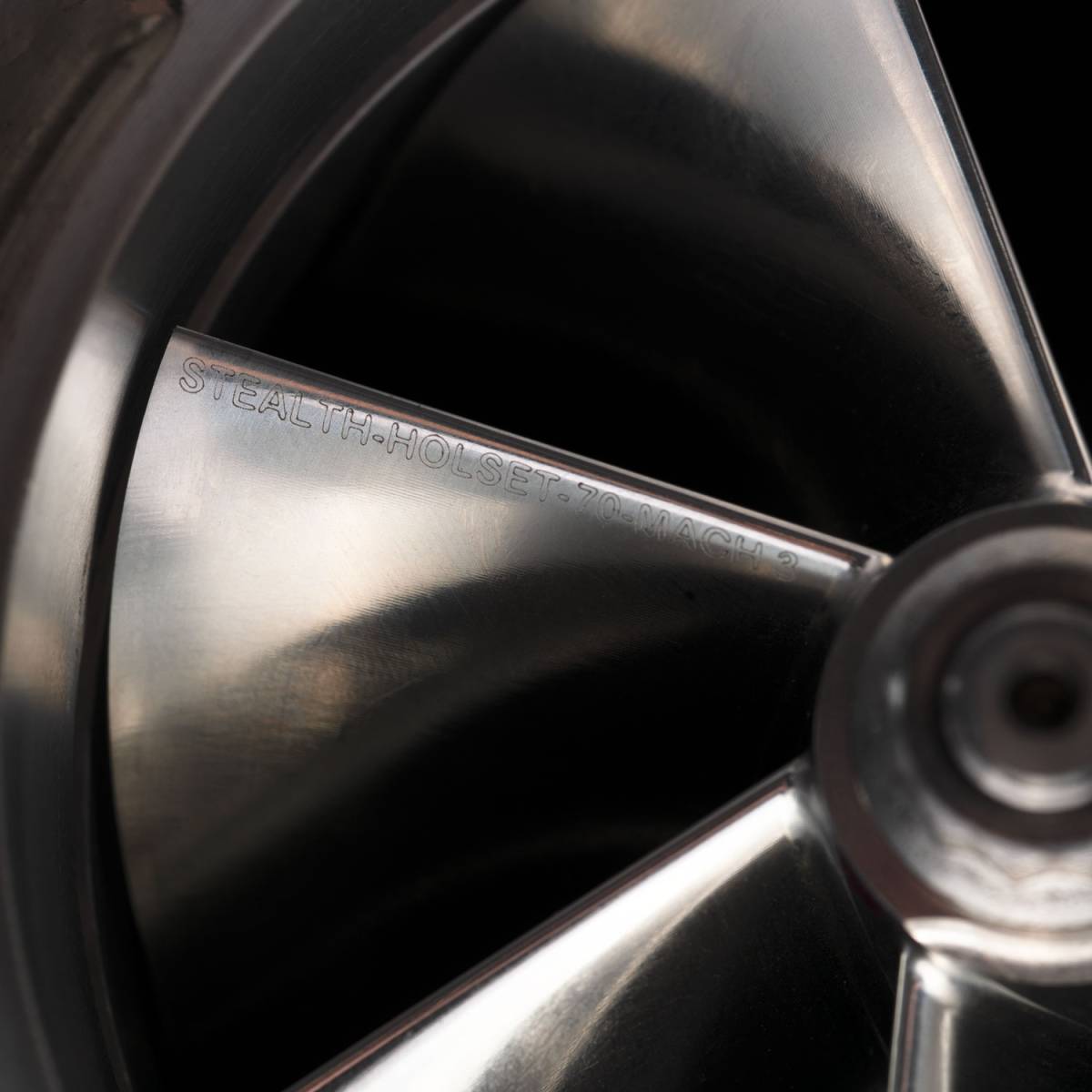

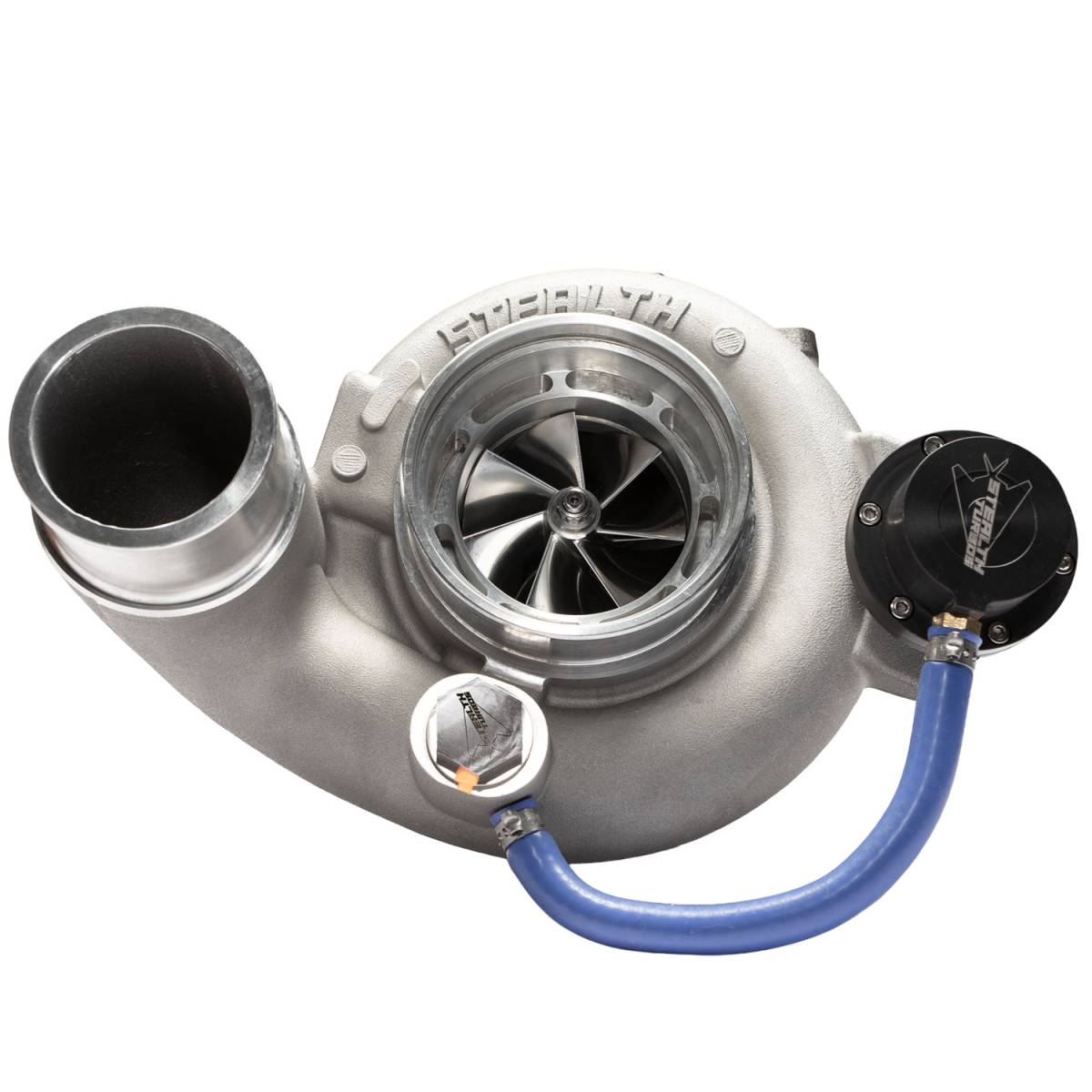

70mm - 7+7 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
Recessed super back comp wheel design for weight reduction

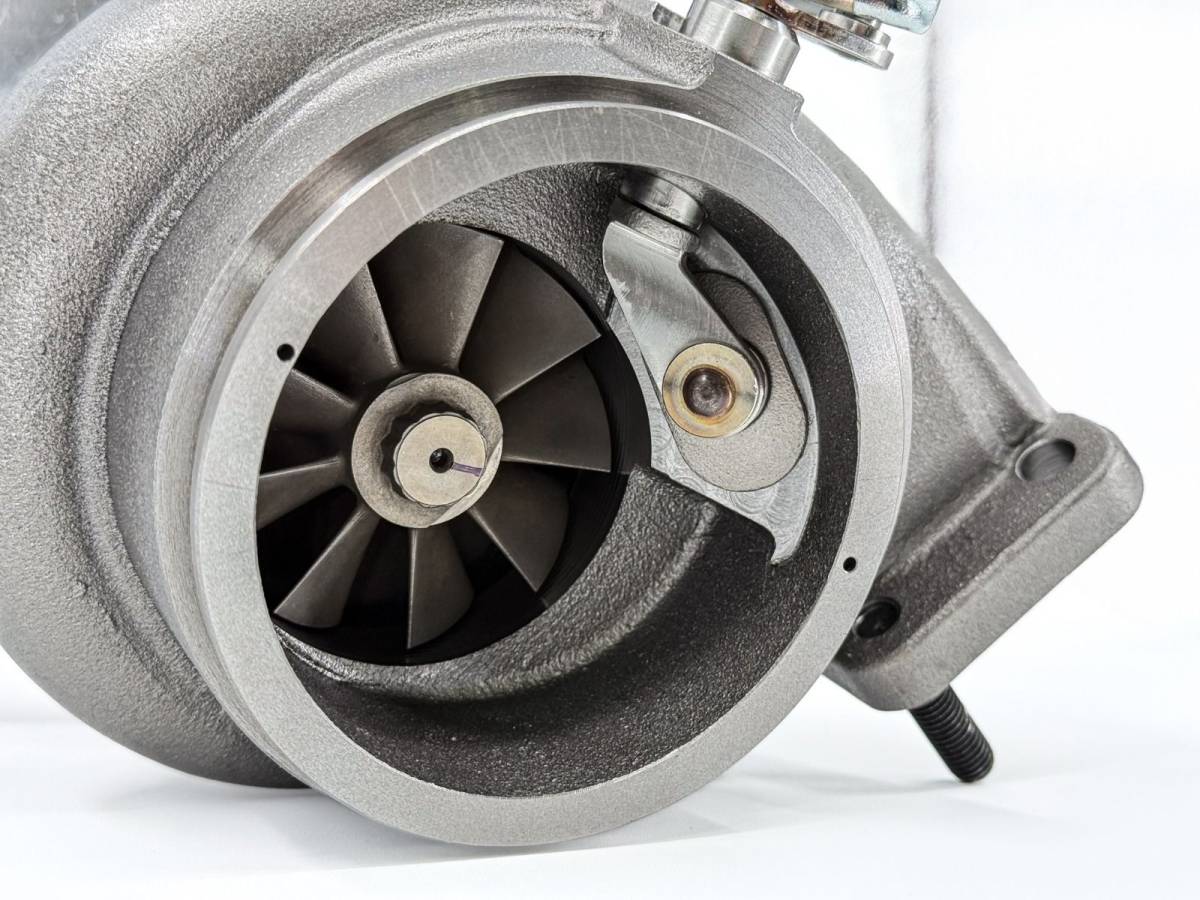

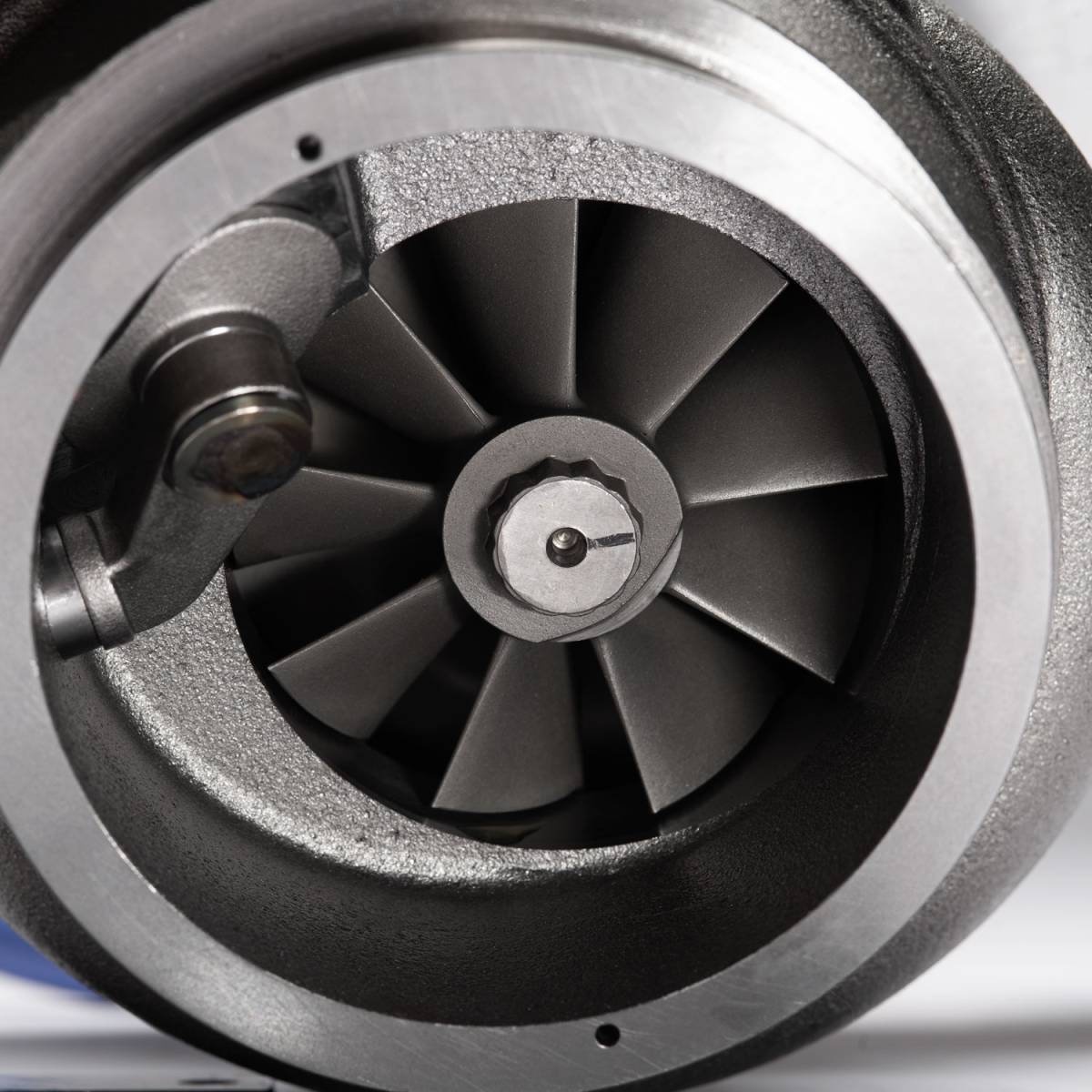

72.2mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
Thicker turbine blades for added heat resistance
Added turbine back wall for increased oil seal heat protection
Thicker turbine heat shield

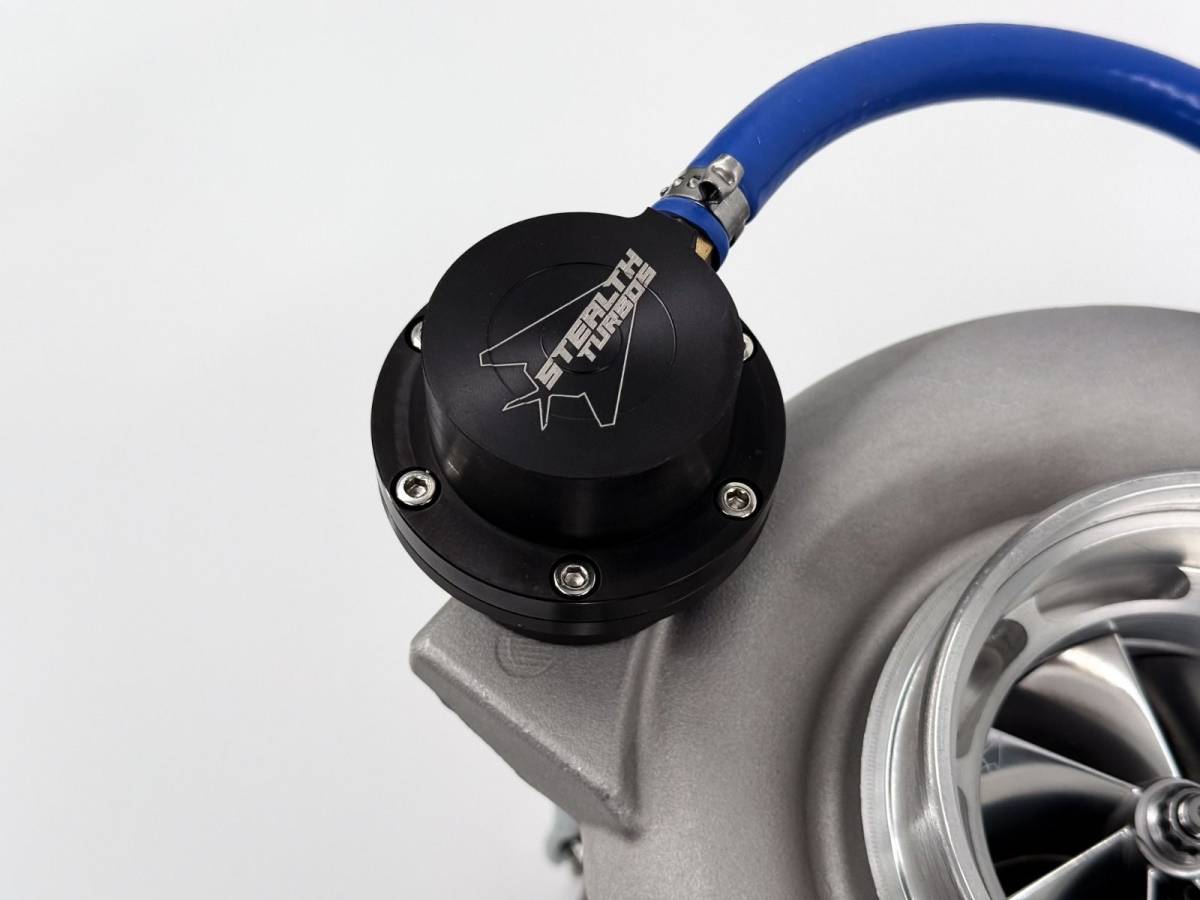

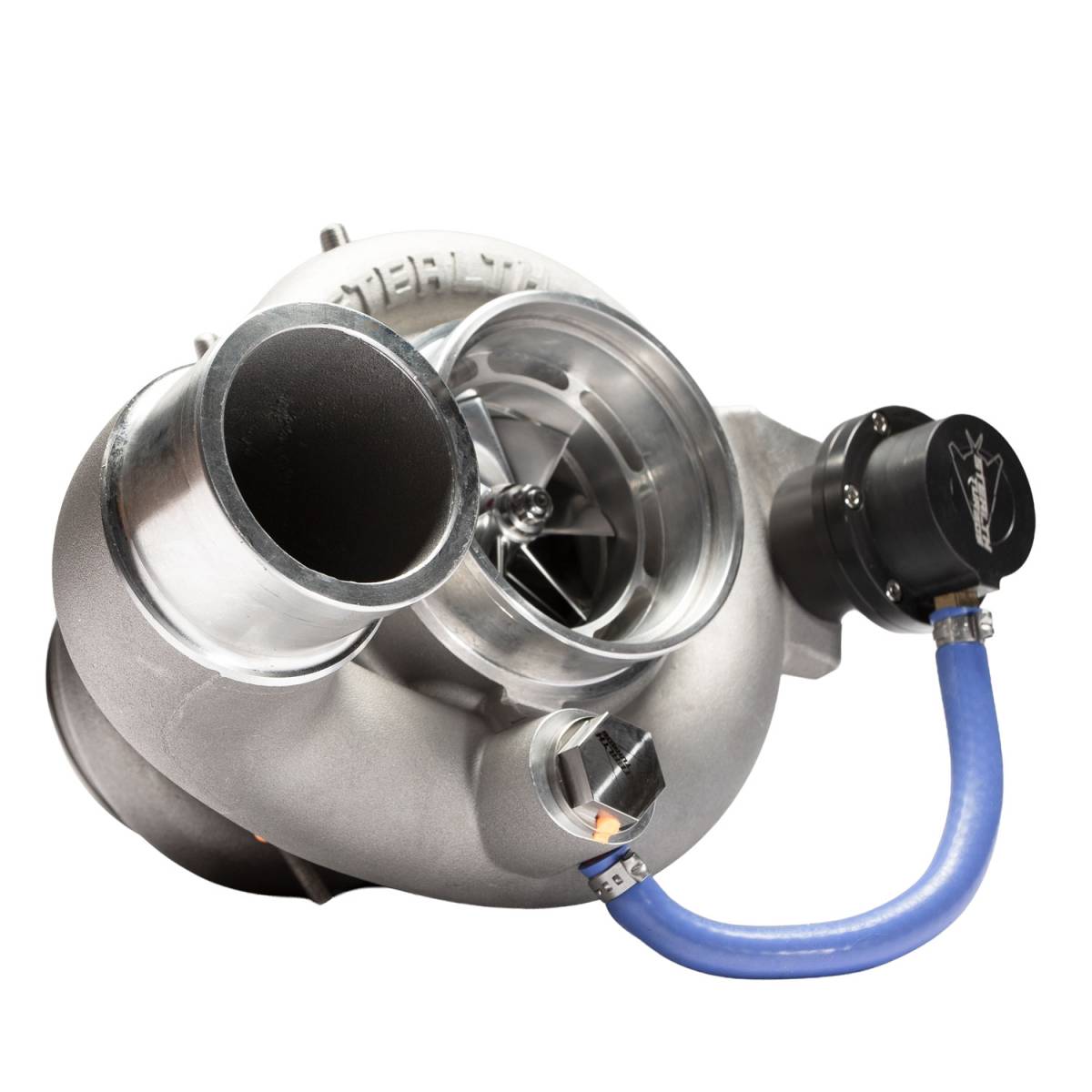

Billet Stealth 60psi waste-gate canister (Tunable)

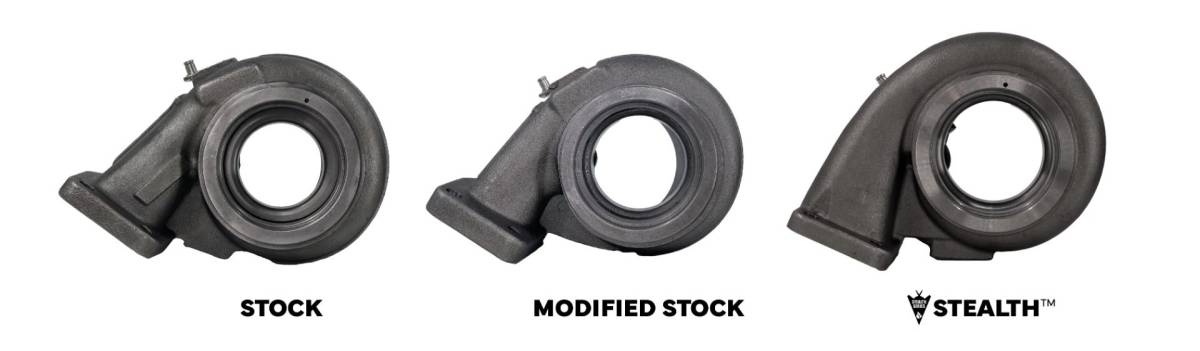

Custom high flow exhaust housing with A/R increased 10% over stock
Wastegate port shape redesigned & increased 16% in size
Custom billet anti-surge compressor cover ring
Capable of making up to 60psi of boost
Grooved journal bearings for better heat resistance and lubrication

Supersedes DM1582050800000
