2018-2022 Jeep Wrangler JL/2020-2022 Jeep Gladiator JT Baja Designs Jeep XL80 Bumper Light Kit

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! Choose to take your off-road lighting to the next level with BDs 9,500 lumen XL80.

Similar to BDs XL Pro model, the XL80 offers a 20 percent dimming feature, a powder coated housing and an anodized bezel. However, this is where the similarities end. The XL80 features a very powerful LED for greater visibility and increased brightness.

As always, Baja Designs offers a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.
Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It.
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Only LED Driven At 100 percent
• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications (Per Light):

• Lumens: 9,500 Utilizing 4 Cree LEDs
• Wattage/Amps: 80W / 5.50A
• Dimensions: 4.43 x 3.65 x 4.43 inch
• Weight: 2.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

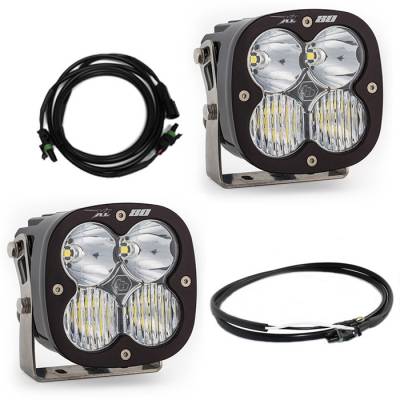

Includes:

• 2x XL80 LED Light
• Mounting Bracket
• Wiring Harness
• Splitter Harness
• Zip Ties

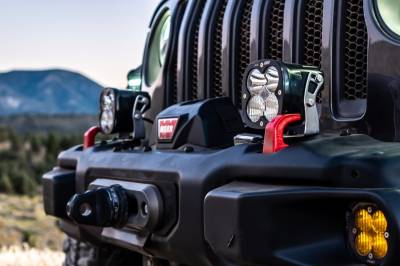

Application:

• Jeep JL Rubicon W/ Steel Bumper
• Jeep JT Rubicon W/ Steel Bumper

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
