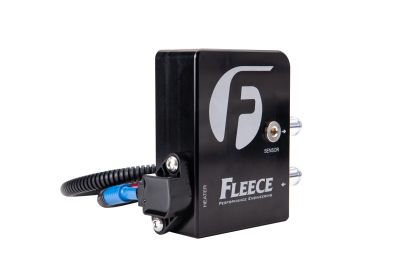

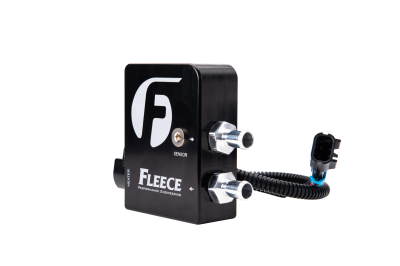

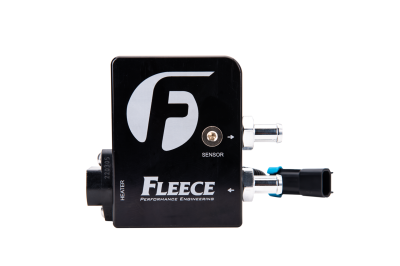

2011-2016 LML Duramax Fleece Auxiliary Heated Fuel Filter Kit

FPE-DMAX-HFFBA-1116
- Incorporates Fuel Heating Element on LML Duramax Trucks for Better Cold Start Performance
- Reduces Chance of Fuel Gelling in Cold Weather
- Replaces Factory Fuel Filter Base and Eliminates Factory Fuel Primer Bulb
- Incorporates Water-In-Fuel (WIF) Sensor
- Uses Donaldson Spin-On Canister Style Filter
- Intended for use with aftermarket lift pump such as Fleece PowerFlo
Shipping: This Product cannot ship to the state of California
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California
Pricing: $399.00

Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California

Description

Fleece's full-featured auxiliary fuel filter kit for the 2011-2016 LML 6.6L Duramax replaces the factory fuel filter housing with a new filter base, integral high-flow fuel heater, Water-In-Fuel (WIF) sensor, and Donaldson spin-on canister style filter. The filter base eliminates the factory fuel primer bulb and is intended for use with a positive pressure lift pump such as the PowerFlo lift pump or alternative frame mounted pump.

Problem: The LML Duramax was not originally equipped with a fuel heater, making it prone to fuel gelling in cold temperatures.
Solution: Our updated fuel filter base mounts in the factory location, providing for a direct factory replacement and the peace of mind to tackle the coldest of days with a high-flow fuel heater.

Kit includes:
  • Fuel filter base with integral fuel heater and fittings
  • Donaldson 3 micron fuel filter and water separator
  • Pre-formed hose and hose clamps
  • Wiring harness and fuse taps
  • Water-In-Fuel (WIF) sensor and adaptation harness


Fuel heater specifications:

  • Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4F
  • At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element

NOTE: This filter base eliminates the factory fuel primer bulb and is intended ONLY for use with a positive pressure lift pump such as our PowerFlo lift pump or alternative frame mounted pump.

Details

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W10.0000” x H8.0000” x L10.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California
