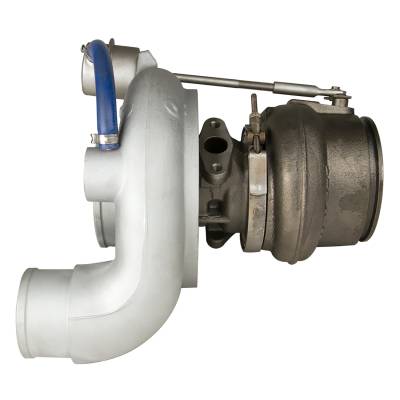

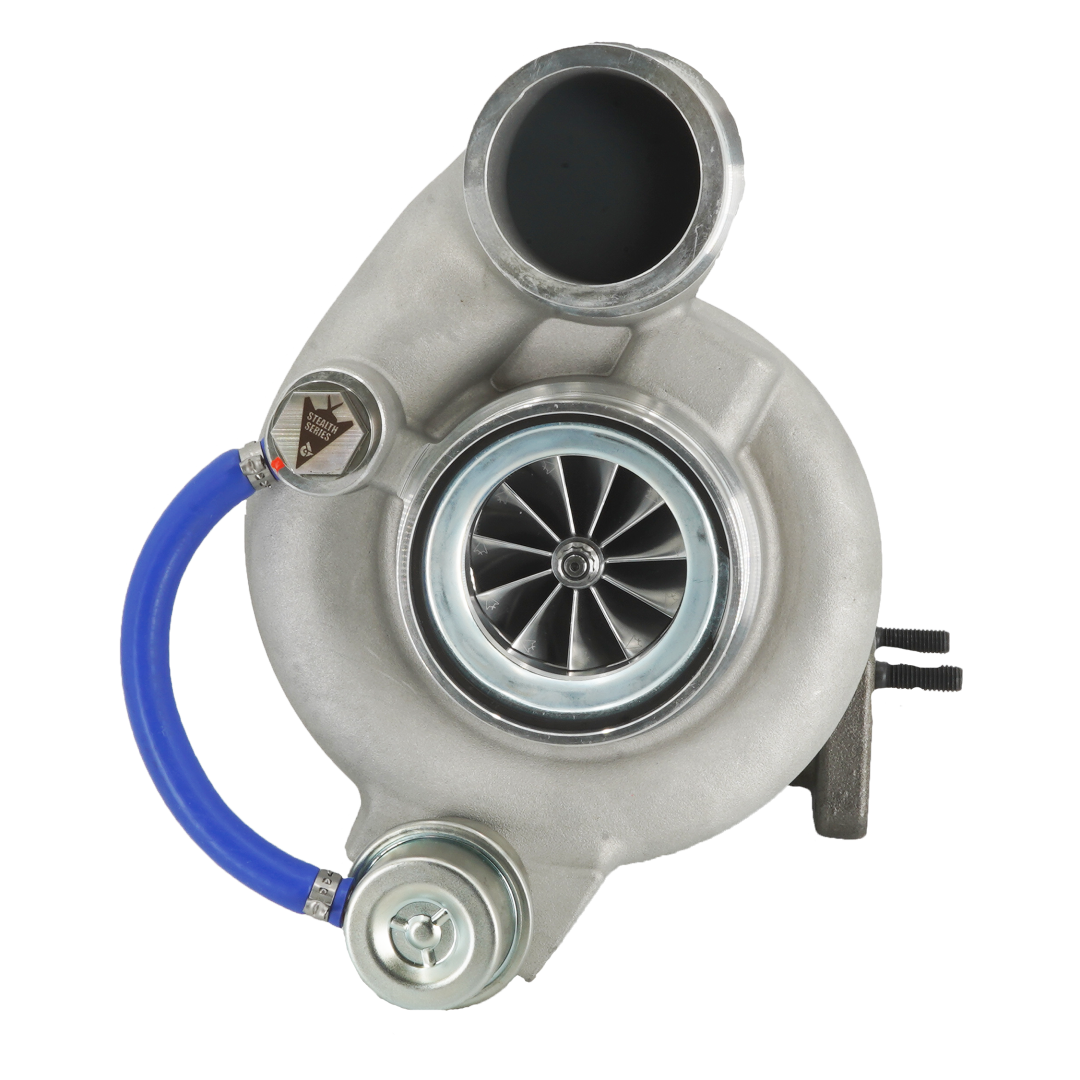

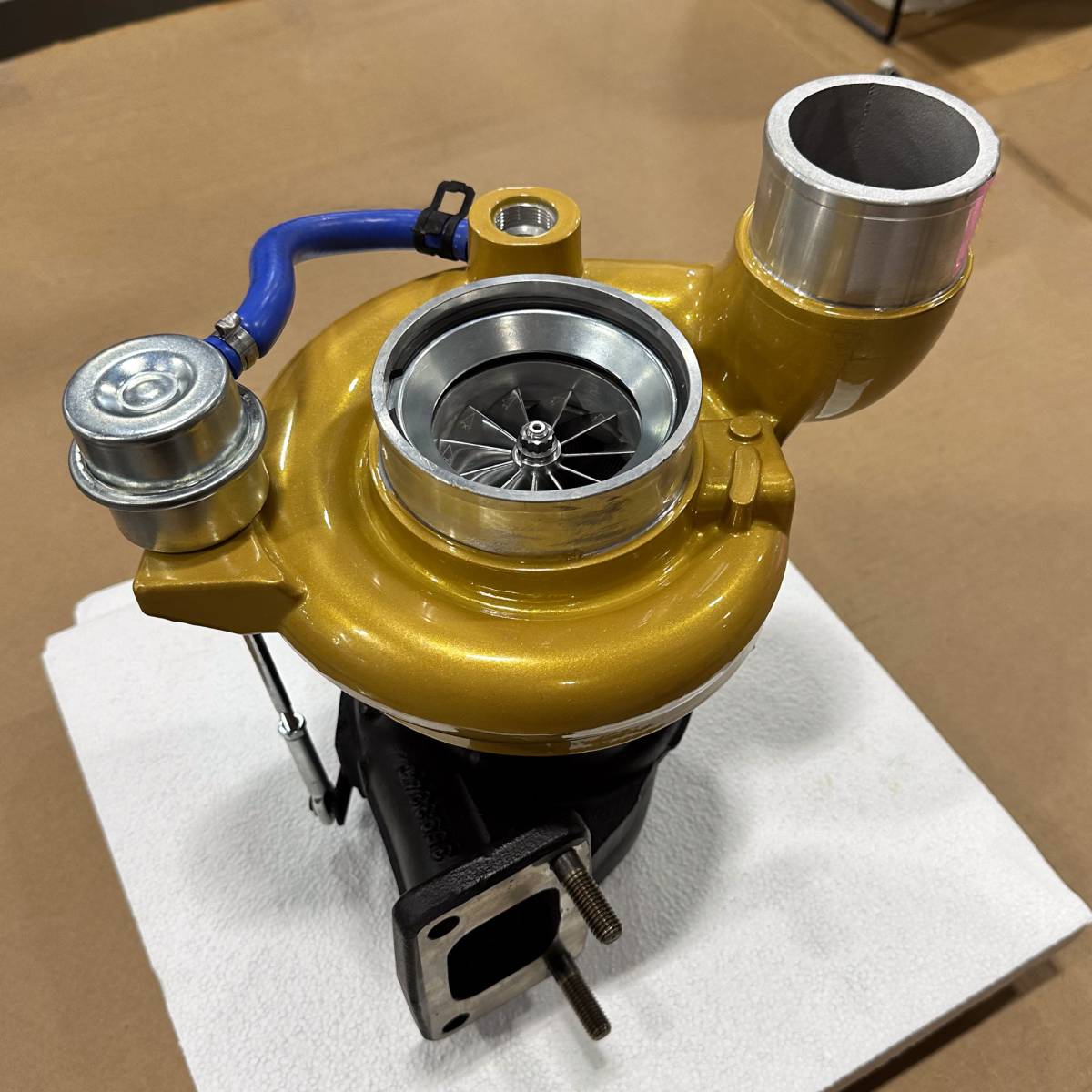

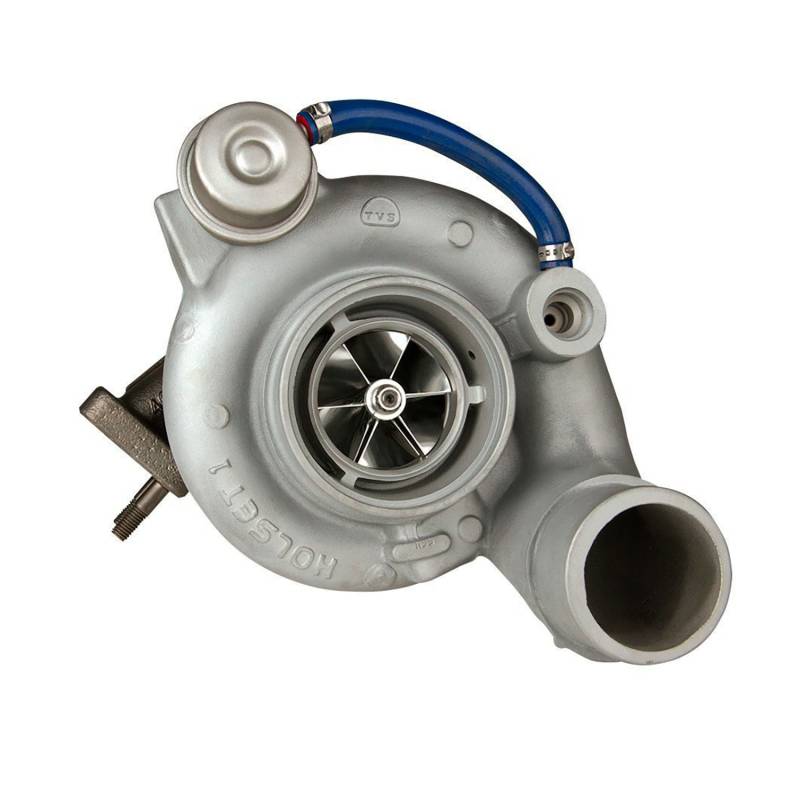

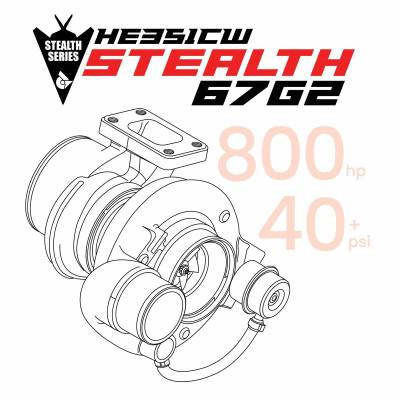

2003-2007 5.9L Cummins Stealth 67mm Drop In Turbo

DM1552050302000 / DM1682050302000
The 3rd Gen stealth 67 is an upgraded, drop-in, replacement turbo for the 2003-2007, 3rd Generation 5.9L Cummins turbo.

- It is designed to bolt in and require nothing other than removing the factory turbo and dropping this one in it’s place.

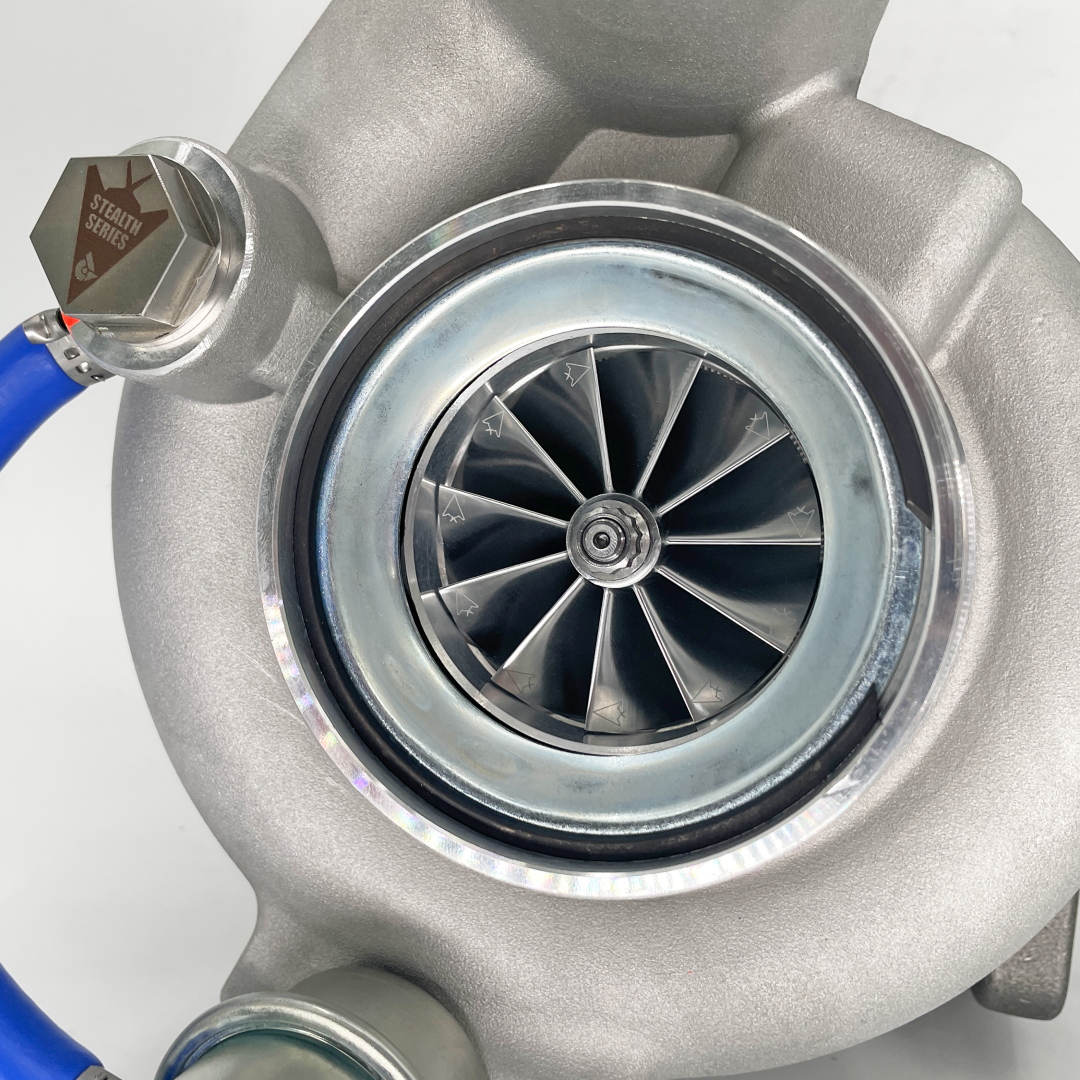

- The turbo features a custom profile, 67mm billet wheel perfectly mapped to a modified compressor cover and 65mm, 10-blade turbine inside the HE351's 9cm housing.
Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time for powder and ceramic coat options.
Shipping: This Product cannot ship to the state of California
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California
Pricing: $1,785.50

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
- 03-07 Turbo Install Kit -
 * required
- 91-18 Turbo Oil Feed Line Kit -
 * required
- 03-07 5.9L Turbo Oil Drain Kit -
 * required
- Exhaust Manifold -
 * required
- Stainless Exhaust Manifold Stud -
 * required
- VGT Exhaust Housing Finish -
 * required
Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California

Description

HE341CW / HE351CW – Cummins 2003-2007 Turbo Upgrade

This Turbo Upgrade is one of the quickest spooling turbo's we have tested for the 5.9L Cummins. Even the most experienced enthusiast have a hard time telling the difference between a stock HE351 / HE341 and a 3rd Gen Stealth 67 during light throttle, daily driving. This is directly tied to the tight exhaust housing and light weight turbine wheel. If you are going to daily drive your Cummins, consider a quick spool-up a "must have".



Stock injector / built transmission trucks can expect an easy 100+ RWHP (Rear Wheel Horse Power) gain with no tune adjustment required.

With the quick spool and improved top end power, this is a great turbo for towing performance. If you like use your truck for work and have to tow something the Stealth 67 is up to the task. We have measured excellent EGT control without sacrificing performance.

This charger is the perfect fit for those of you with future plans for a twin kit. Take your time and put the build together in stages. Start by upgrading the factory charger with an easy drop-in and build off it down the road. In a compound or twin kit we have many customers making 1,000HP+! Of course those builds include a more extensive list of supporting modifications. Still it is nice to know there is a proven formula to follow.

On the other hand, if you want street-able power out of a single turbo, this is your best option. When really pushed, this turbo is capable of up to 850 RWHP!

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W15.0000” x H15.0000” x L15.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California
