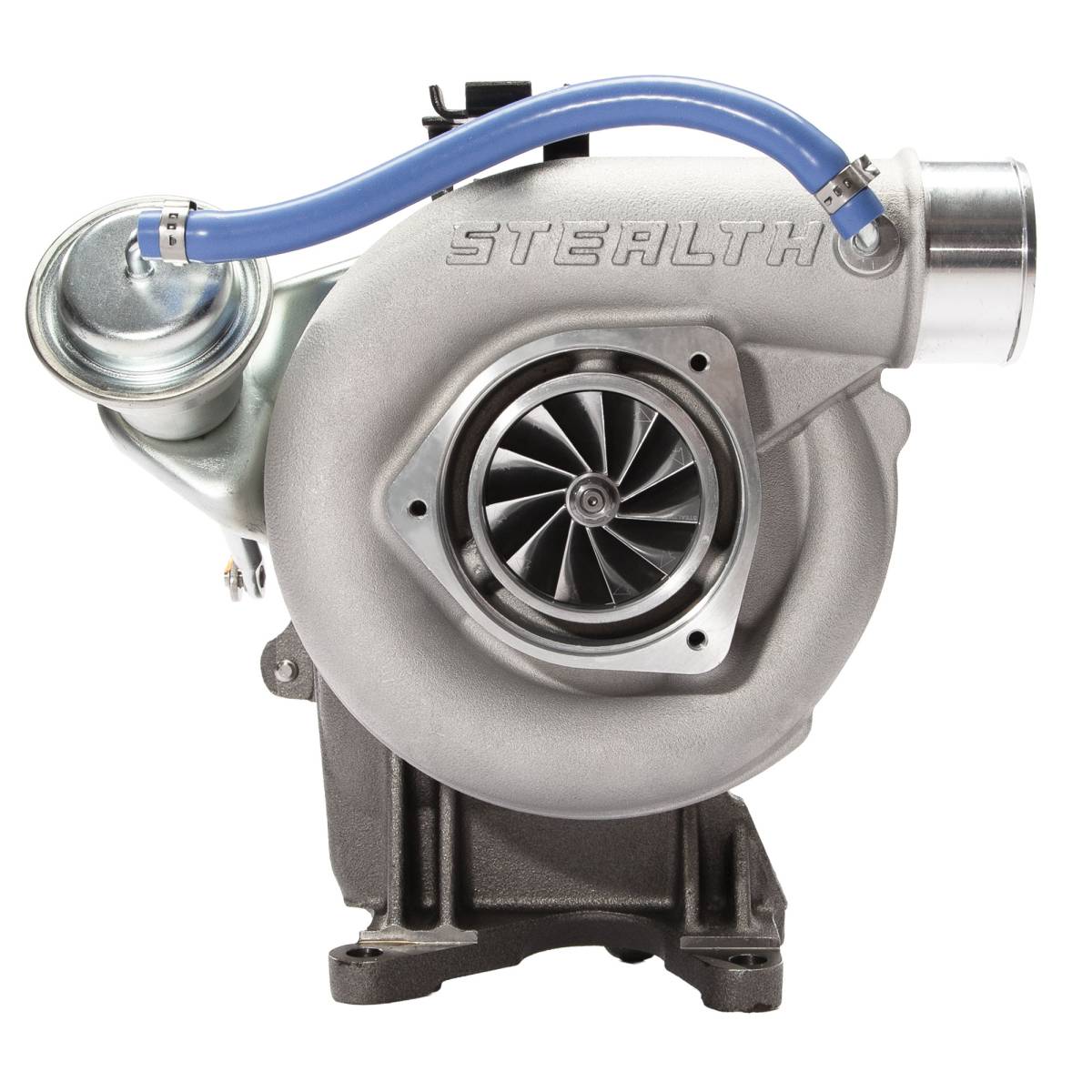

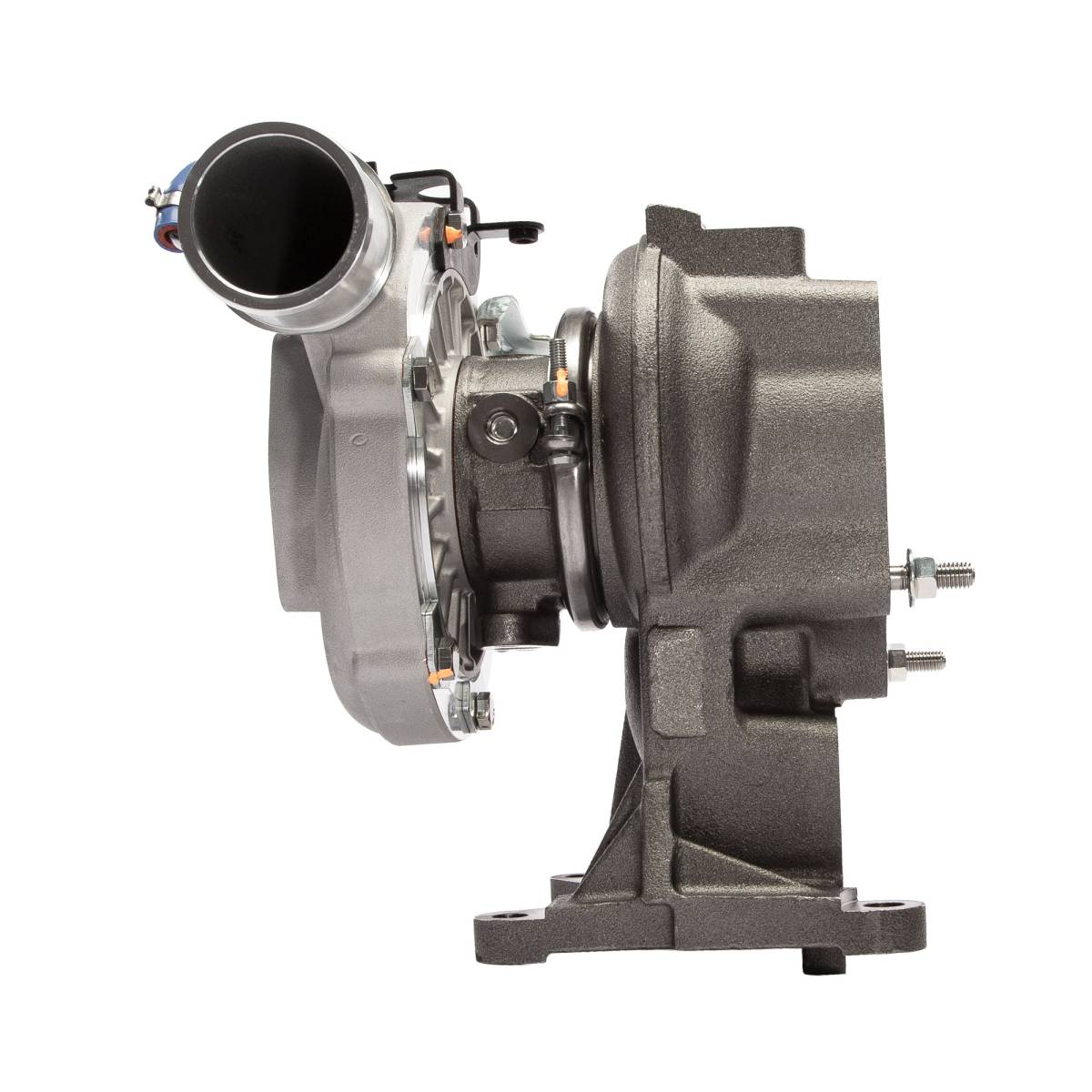

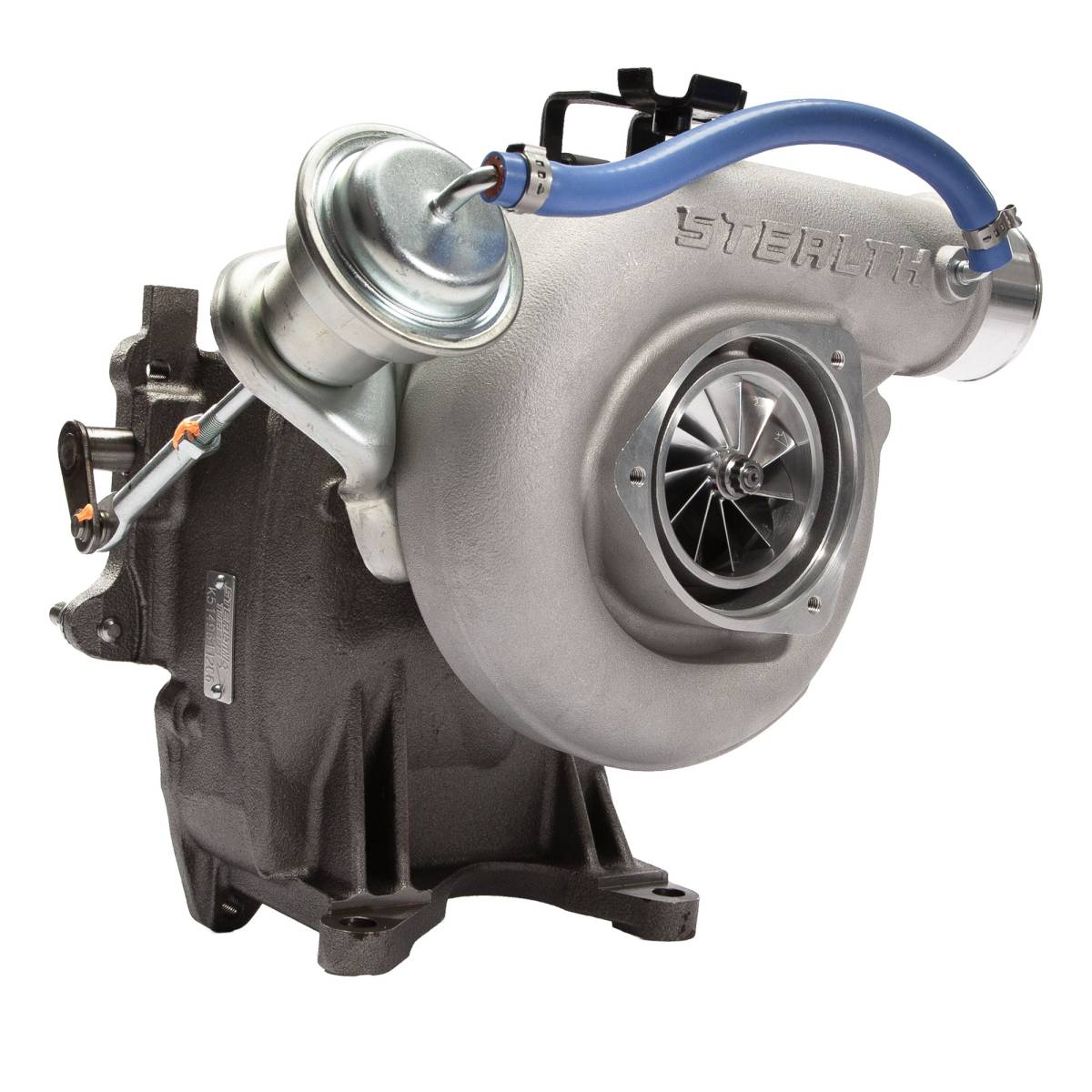

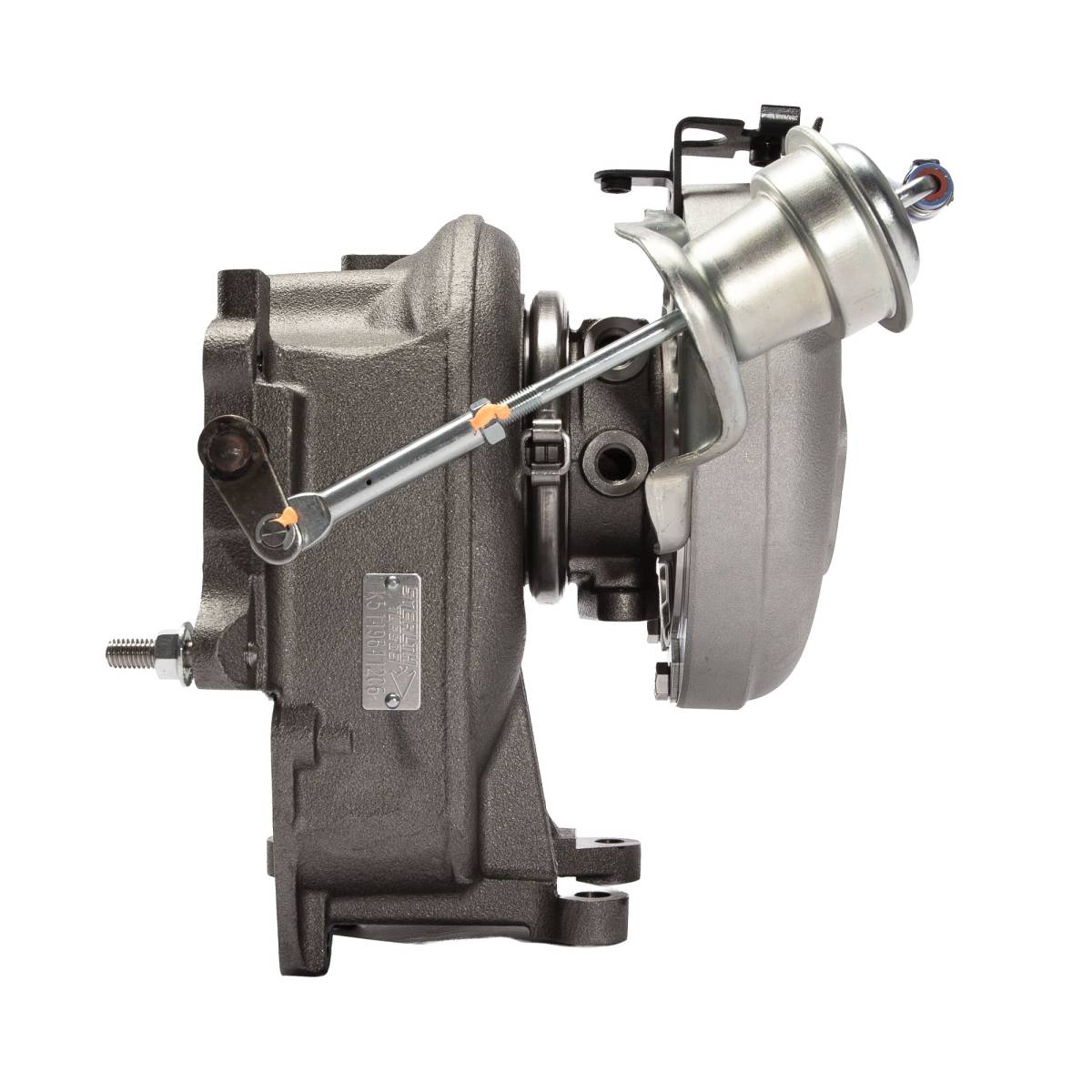

2001-2004 LB7 Duramax Stealth Mach 1 64mm Drop In Turbo

DM1351070203000
- 640+ RWHP Peak

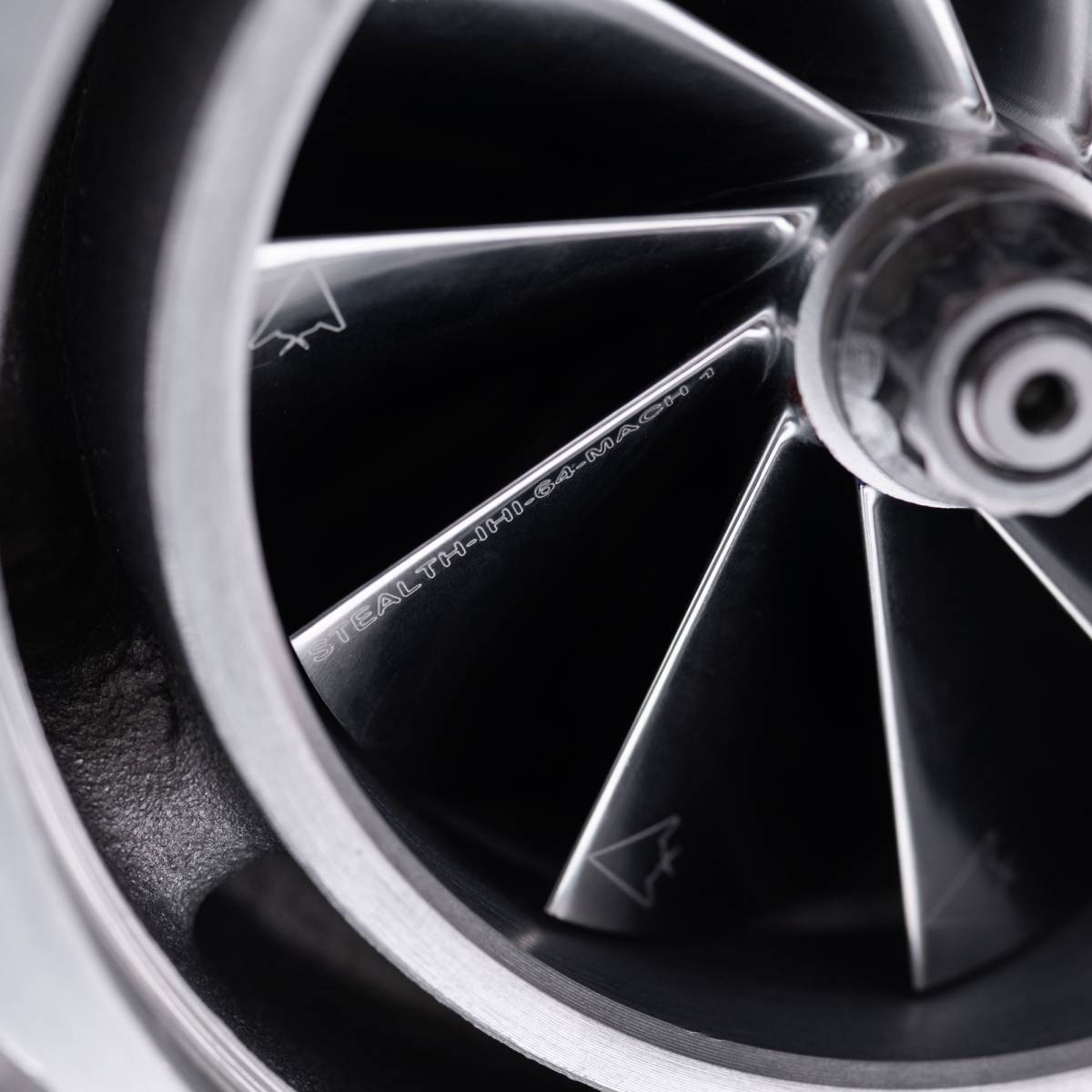

- Billet Compressor Wheel
- 64mm, 11-Blade Exclusive design
- Quick Spool-Up
- High Flow Turbine Wheel
- Larger than stock
- Matched perfectly to the custom compressor wheel
- Custom Cut Cover
- Custom Cut Exhaust Housing
- 360-degree Thrust Bearing

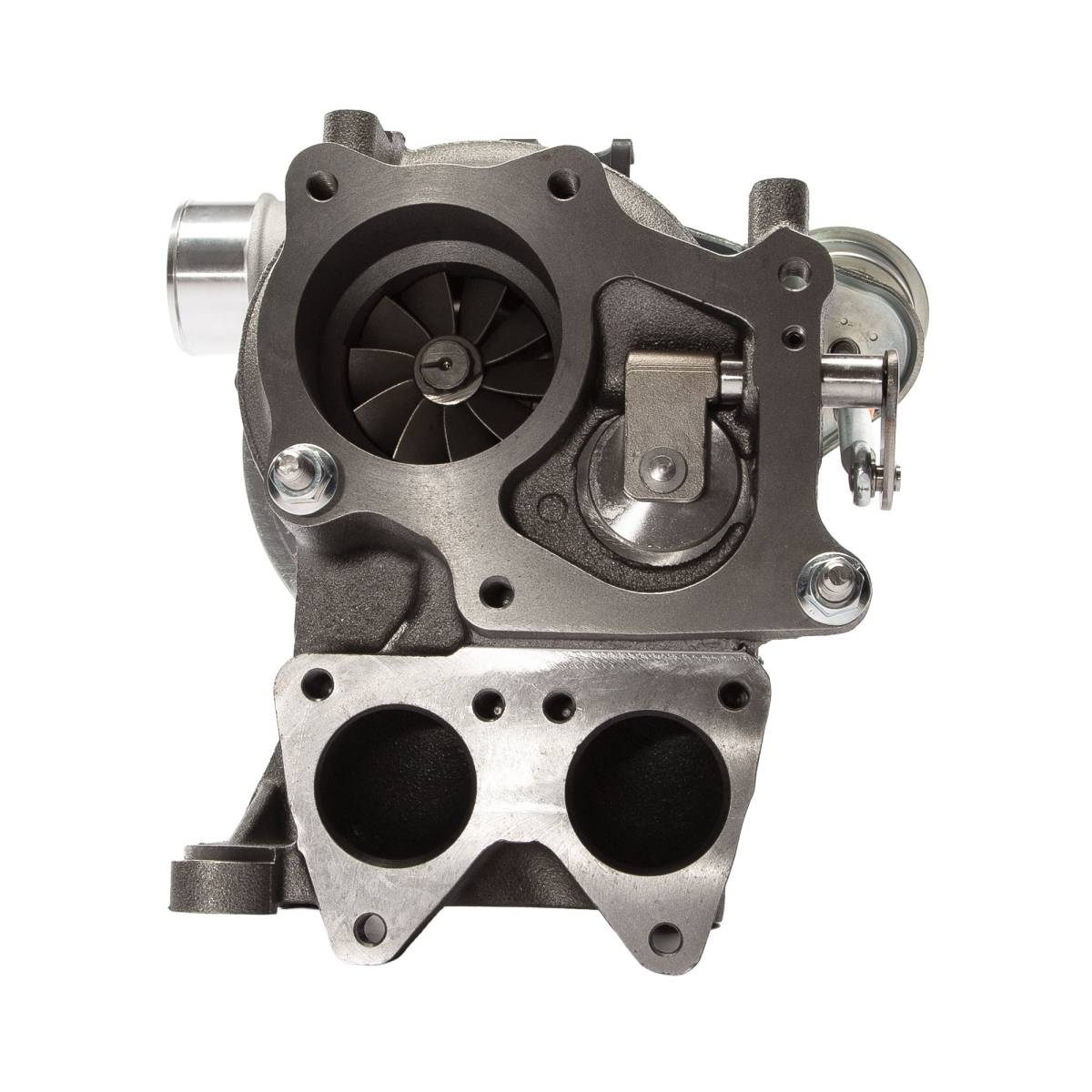

- High Flow Ported Turbine Housing
- Wide Torque Curve
- Direct Bolt-On
- Lower EGT’s
- Great Daily Driving/Towing
Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time for powder and ceramic coat options.
Shipping: This Product cannot ship to the state of California
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California
Pricing: $2,100.00

Customize Your Item

- Powder Coating -
 * required
- Gasket Kit -
 * required
- VGT Exhaust Housing Finish -
 * required
Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California

Description

Supports up to 640RWHP! The BEST drop-in style, LB7 turbo on the market today!

The LB7 Stealth 64 Turbo is a direct drop-in, bolt-on stock appearing replacement with features you won’t find anywhere else. Your 2001, 2002, 2003, or 2004 LB7 6.6L Duramax will have improved power, perform better while towing and experience overall increased performance.  This is capable through the use of a custom-designed high-flow turbine assembly and 7075 billet compressor wheel. The Stealth 64 does all this in a liquid-cooled package protected by 360-degree thrust bearings.

The larger turbine assembly allows for lower drive pressure, creating a better balance between boost and drive (exhaust backpressure). This improved balance under heavy load means more efficiency and power at a given boost number, resulting in lower EGTs under heavy load. Overall peak power is also improved, the LB7 Stealth 64  pushes the envelope to 640HP. You’re not going to find all of these features anywhere else in the aftermarket in a truly stock-appearing, bolt-in IHI-style turbocharger.

To compliment this turbo we highly recommend our LB7 Stage 3 High Flow Intake Bundle Kit (WCF100712) to maximize performance, EGT control, and spool up. Looking for more yet? Add the stealth 64 in addition to one of our S400/Stock Compound kits and you've got the recipe for 1000 RWHP.

This Turbo is Designed for you if:
- You daily drive your truck
- Reliability & Performance are Top Priority
- You tow with your truck
- You prefer to simply swap your old turbo out for a new one
- You want more power when you need it, but still have excellent street manners!

Replaces the following GM Part numbers: 8973077111, 8971884545, 97720748, 97307711, 766172-0001, VIDR, VIDQ, VICU

Please Note: This turbocharger does not fit on California emissions-equipped trucks.

The Stealth Mach 1 (64) has undergone testing to demonstrate that it complies with federal emissions regulations. This testing provides the reasonable basis required by the standards defined by the EPA. Here you can find a PDF that documents this testing.

Video

Details

Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W15.0000” x H15.0000” x L15.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California
