2011-2020 3.5L Ecoboost Ford F150 EZ Lynk Custom Performance ECM Tuning

Ford F-150, 3.5L EcoBoost (2011-2020) Custom Tune Package

• Emissions Intact – no need to remove your emissions equipment

Do you need Calibrated Power’s Custom EcoBoost Tuning?

• Total flexibility to select the power level you need
• Designed to be safe for your engine and transmission
• Calibrated Power has 14+ years Custom Engine & Transmission Tuning experience
• Fully customized tuning with more than 100+ calibration changes from stock
• No hacking wires into control units or fuel pump/turbo sensors
• World Class Customer Service Phone Support!

SMART Octane Sensing

• Allows your truck to automatically detect and adjust for different octane fuels
• Seamlessly run 87, 89, 91, or 93+ octane gas
• Higher Octane fuel has a greater resistance to KNOCK
• Automatically advance ignition timing for increased power and torque

What’s a Flex Tune?

• Detects alcohol in the fuel system and adjusts target air-fuel ratio
• Ability to automatically run a blend up to E40 (40% Ethanol)
• TUNE Only Upgrade, No additional hardware required
• Higher Ethanol content allows for maximum power and performance

E40 – E85 Race Tune*

• Peak Horsepower and Torque (w/E-85)
  • +144 RWHP and +165 ft-lbs
  • Total 486 RWHP and 572 ft-lbs

• Designed to run E40 - E85 (40% - 85% Ethanol) fuel
• Upgrades Required to run E-40 – E-85 Race Tune
• AMS Turbo Inlet Pipes, SKU: AMS.32.08.0001-1
• Drop In Filter, SKU: 33-2385
• AMS 5.5” Thick Intercooler, SKU: AMS.32.09.0001-1
• AMS Performance Turbine Housing Adapter, SKU: AMS.32.05.0002-2
• HI-FLow Cat Downpipe (49 State Legal), SKU: FT16ECODPCAT
• 3.5L Port Injectors, SKU: IS409-1000H
• DW400 in tank pump, SKU: 9-403-1047
• Firm shifting
• No dead pedal
• Inappropriate use of this tune
• Too much power for towing without the proper gauges
• Enough power for an irresponsible driver to damage his truck
• *NOTE: Race Tune is available for 2017-2020 Models Only

Flex Sport Tune

• Peak Horsepower and Torque
• +130 RWHP and +121 ft-lbs (2017-2020)
  • Total 472 RWHP and 537 ft-lbs (2017-2020)
• +100 RWHP and +110 ft-lbs (2015-2016)
  • Total 434 RWHP and 510 ft-lbs (2015-2016)
• +75 RWHP and +100 ft-lbs (2011-2014)
  • Total 405 RWHP and 590 ft-lbs (2011-2014)
• Fastest possible acceleration with E-40 fuel
• Firm shifting
• No dead pedal
• Inappropriate use of the Sport Tune
• Too much power for towing without the proper gauges
• Enough power for an irresponsible driver to damage his truck

Flex Street Tune

• Improved Horsepower & Torque
• +110 RWHP and +120 ft-lbs (2017-2020)
• +80 RWHP and +100 ft-lbs (2015-2016)
• +55 RWHP and +80 ft-lbs (2011-2014)
• No dead pedal feeling
• Most power and torque you can add while maintaining OEM levels of reliability
• Fast acceleration - Truck feels lighter
• Mix of Fun and Superior Drive-ability
• Love driving the truck everyday
• Smooth power curve
• The throttle pedal responds exactly how you want it to

Flex Tow Tune

• Balance between Daily Driving and Towing
• Smooth power curve that’s fun to drive
• Thermal limits built into calibration to manage reliability
• Designed to tow up to GVW
• Horsepower & Torque Increase
• +50 RWHP and +90 ft-lbs (2017-2020)
• +30 RWHP and +60 ft-lbs (2011-2016)
• Designed to run 87 octane (Regular pump gas) up to E-40 Blend (40% Ethanol)
• Get your truck up and moving more quickly
• More useable power in all driving scenarios
• Have enough power to “Shift Up, Throttle Back”

EcoBoost Transmission Tuning

• Take full advantage of increased power from Engine Tuning
• Improved Shift quality, firmer and more positive shifts under load
• Quick and Smooth shifting during light duty operation, great for daily driving
• Intelligent torque converter lock-up strategy
• Hold gear and pull effortlessly across the entire rev-range

What’s Included:

• (4) Custom Engine Tuning Calibrations (2017-2020) / (3) Custom Engine Tuning Calibrations (2011-2016)
• (1) Custom Transmission Tuning Calibration
• Required EZ Lynk Tokens (Included with tune package)
• SMART Octane Sensing Calibration
• Flex Tuning (Seamlessly run any fuel from 87 to E40)
• FREE OVER THE PHONE INSTALLATION SUPPORT
• Lifetime support and updates

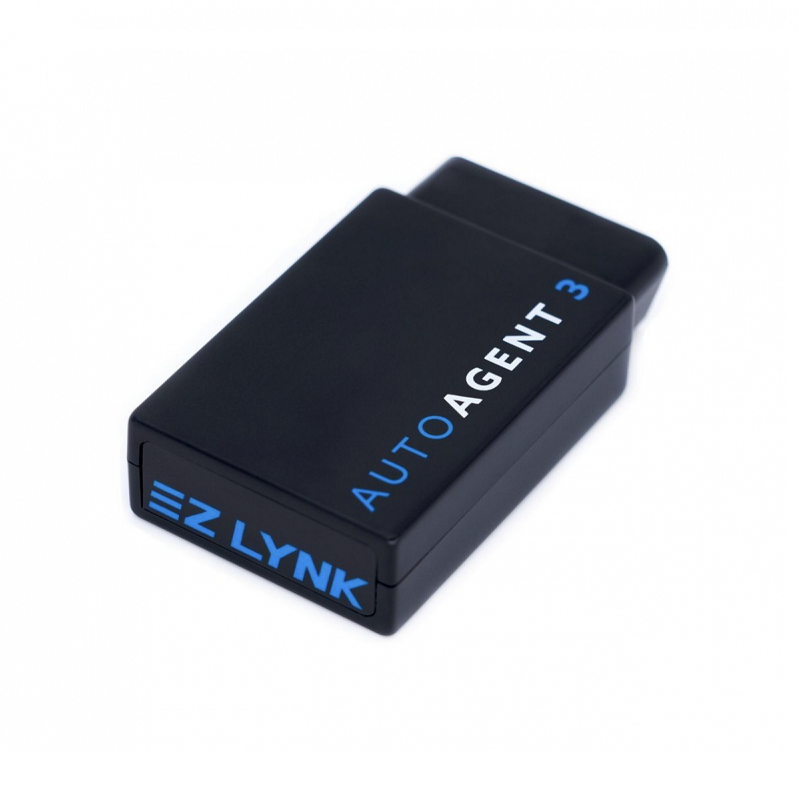

EZ Lynk AutoAgent™ 3.0 Hardware Required

• • The most user-friendly flash (programming) hardware we've ever used to load our tunes
  • 3 simple steps to load our custom tunes on your vehicle
  • Only takes a few minutes
  • Use your iOS or Android Smartphone

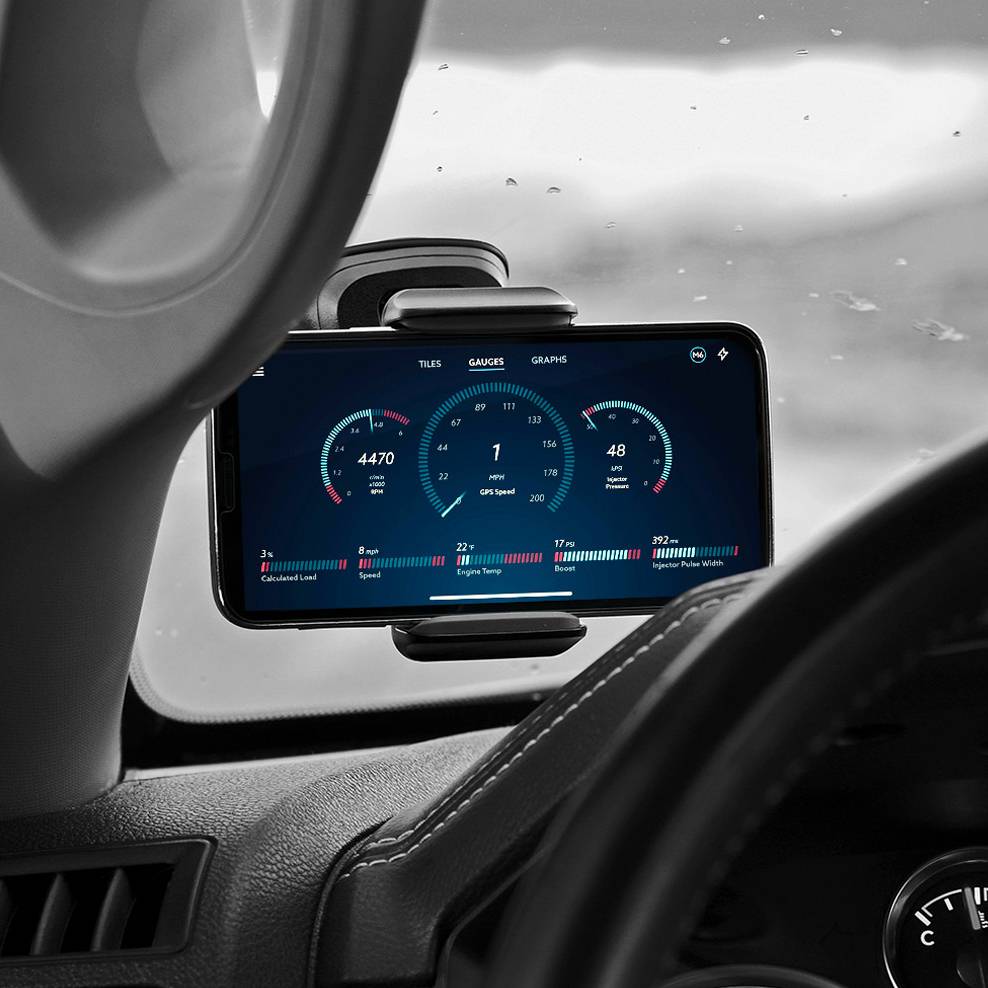

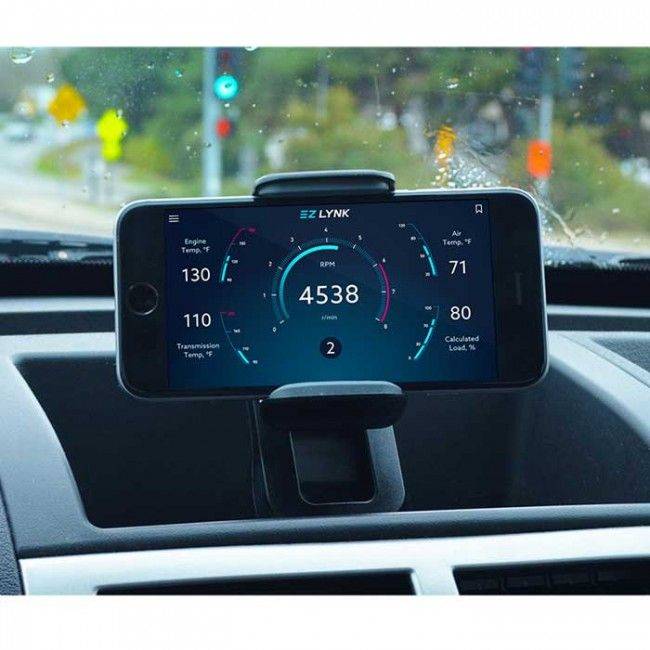

  • Stream and monitor data not available on your vehicle’s factory instrument panel
  • Read and clear diagnostic trouble codes with the tap of a finger
  • Send us real time data logs on your truck if troubleshooting needed
  • Select from over 25 different PIDs using 3 customizable gauge screens
  • Automatic firmware updates
  • Required EZ Lynk "tokens" included in our price

NOTE: This tuning is for Ford F-150 3.5L Ecoboost trucks only and is not compatible with Raptor models.
