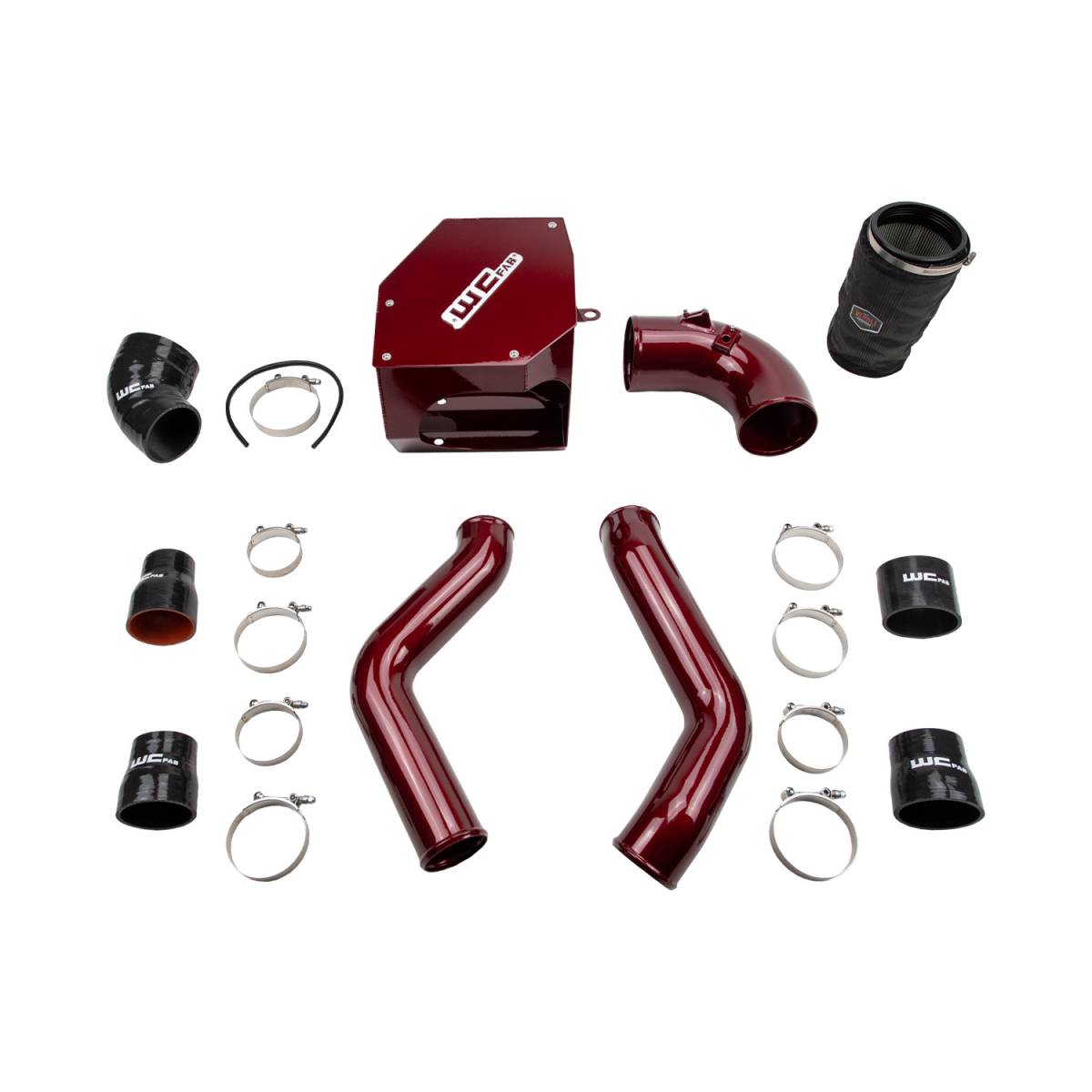

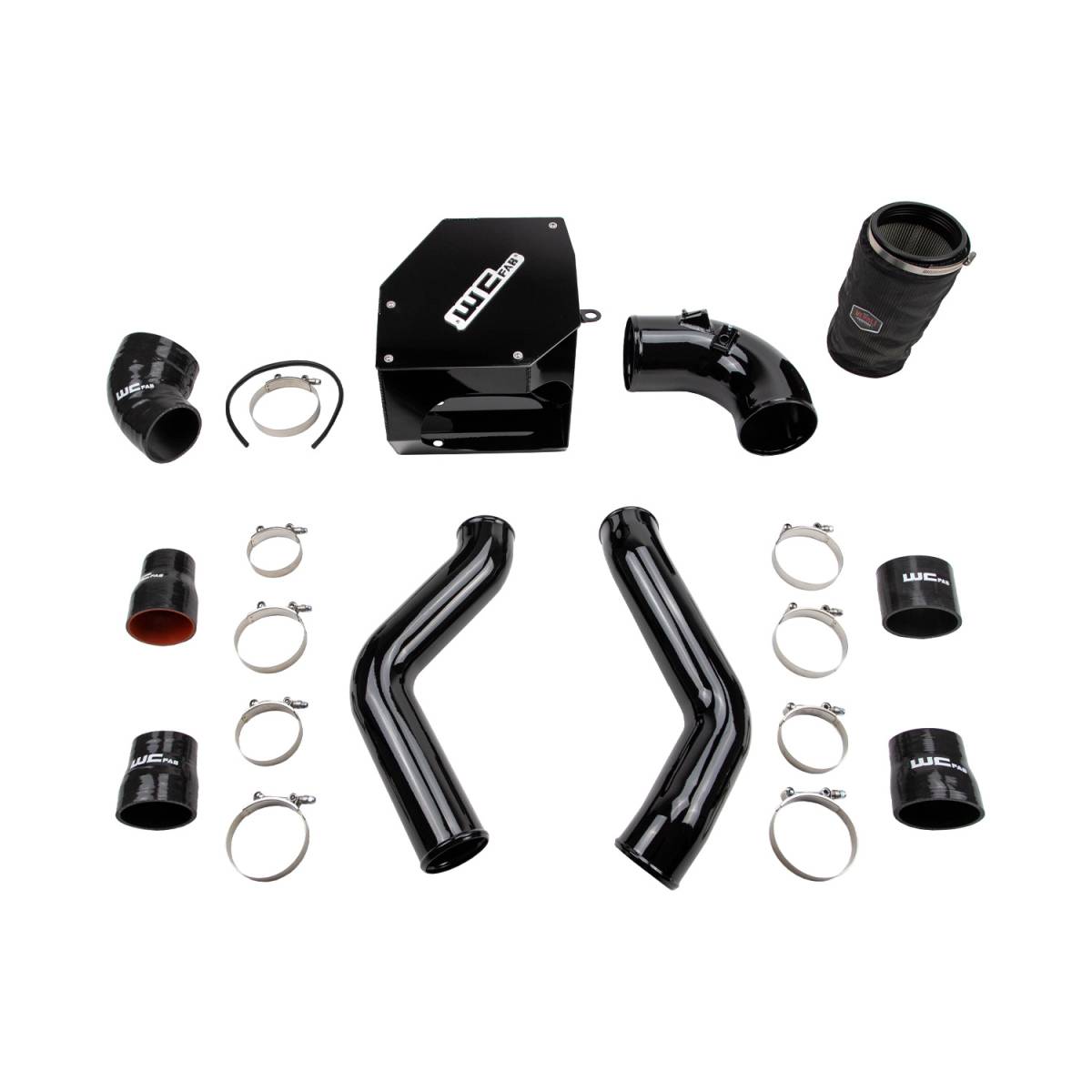

2019-2024 6.7L Cummins Stage 2 High Flow Intake Bundle Kit

Additional Images

Shipping: This Product cannot ship to the state of California

SKU: WCF100331

- 5" Intake
- Air Box & Lid Constructed of 10G Aluminum Sheet
- Replaces the restrictive factory intercooler pipes with high flowing 3.5” diameter pipes
- Dry Air filter
- Outerwear's Pre-Filter Cover
- Includes Installation Hardware, Silicone Boot and Stainless Steel T-Bolt Clamps
- Eliminates OEM Turbo / Intake Silencer (Resonator)
- No Tuning Required, Bolt On!
- Made in USA
- Compatible with OEM and Upgraded Drop-In VGT Style Turbochargers
- Available in a wide array of powder coat color options

Availability: WCFab Red, WCFab Grey, Illusion Purple, and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.

Select Options & Add to Cart

Pricing: $1095.00

As low as $99/mo with Affirm. Check your purchasing power

*Select Model Year Reset

*Select Powder Coating Reset

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

*Select Tag (Logo) Finish (PCUCTAG) Reset

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

*Select Engine Cover Reset

Replace the flimsy plastic OEM cover for the EGR crossover tube and throttle valve.

*Select OEM Placement Coolant Tank Reset

Dress up your engine bay by replacing the ugly clear plastic coolant reservoir with our custom powder coated fabricated aluminum coolant tank with sight glass

*Select OEM Placement Coolant Pipe Reset

Replace the ugly OEM rubber upper radiator hose with a fabricated aluminum hard pipe

*Select Thermostat Housing Reset

Select WCFab X Fleece Performance Thermostat Housing

Your Selected Options

Tag (Logo) Finish (PCUCTAG):: No thanks, I would like the standard Brushed tag finish. (Standard Finish); The WCFab emblem on our product comes standard in raw brushed finish (unless you choose Fluorescent Green or Fluorescent Orange). The other options in this list are custom order and carry additional cost and lead time.

Your Total Price

$1095.00

Qty:

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Description

The Stage 2 upgrade for the 2019-2024 4th Gen Ram with 6.7L Cummins diesel engine combines our Stage 1 High Flow Bundle and 5" Cold Air Intake Kit with Air Box into a single package providing increased airflow for your turbo and engine for improved efficiency, throttle response, and turbo spool up.

Stage 1 High Flow Bundle Kit improves airflow between the turbo and engine for improved efficiency, throttle response, and turbo spool up. Eliminates weak points in the factory design - angled boots and plastic Driver / Cold Side Intercooler Pipe that can lead to boost leaks or complete failures in hard-working and high-performance applications.

Replaces the poorly flowing, small diameter, crushed factory pipes with our heavy duty, high flowing 3.5-inch diameter Pipes. The stock passenger / hot side pipe is only 2.75 inches in diameter and a significant restriction in the intercooler system. The WCFab kit includes upgraded high-quality silicone straight boots that withstand higher pressure and temperatures than the OEM parts to increase reliability and eliminate blown factory boots. Made in the USA from high strength, heavy duty 14 ga. Aluminum tube with smooth, aerodynamic mandrel bends for increased durability and optimized flow.

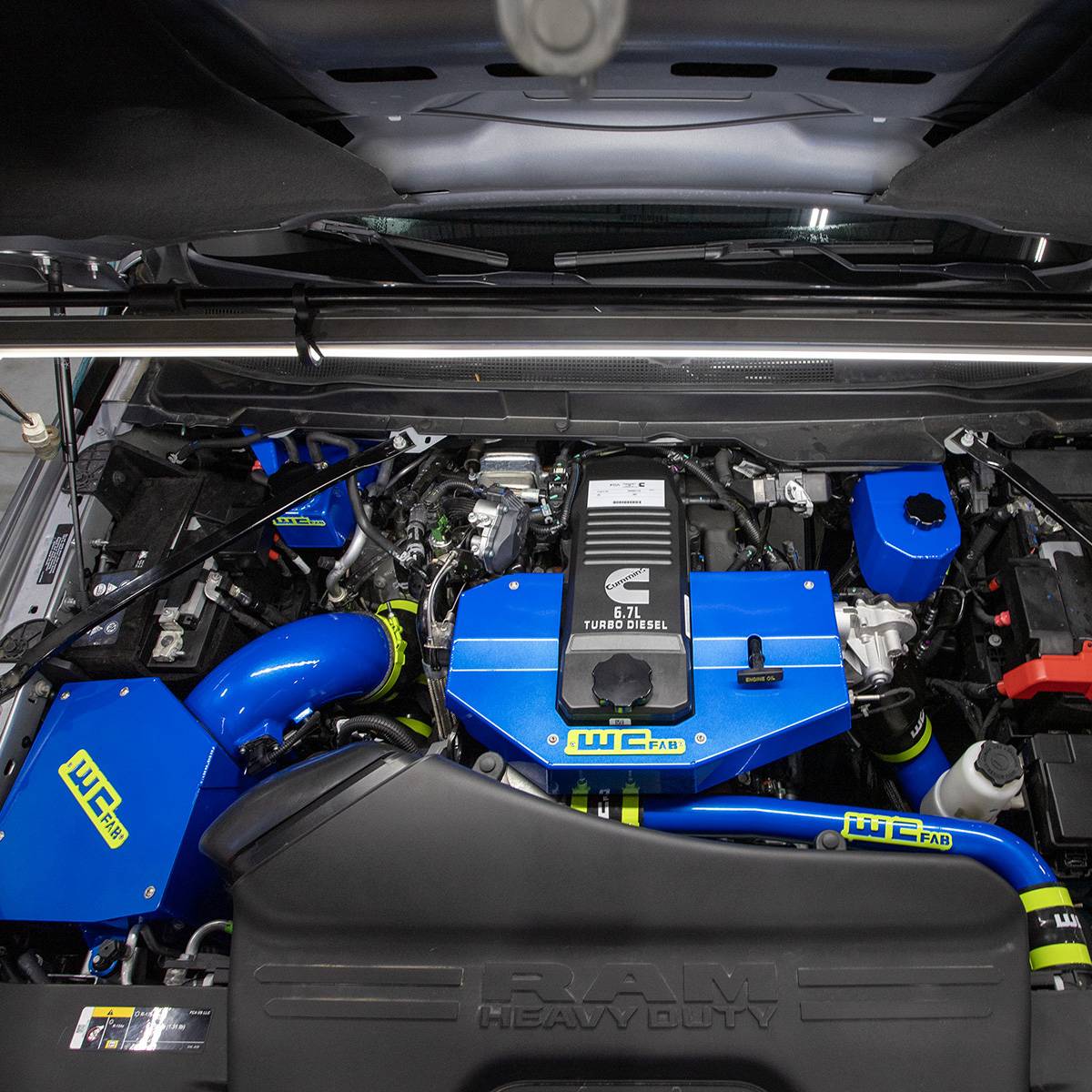

The high flow, fabricated aluminum intake pipe and air box enclosure with dry filter assembly replaces the restrictive plastic factory parts on your diesel for improved engine performance. All new design significantly increases air flow to your turbo producing improved horsepower and torque, quicker throttle response, and cooler intake temperatures by drawing cold air through the inner fender and ram air duct in the grille. All aluminum construction features large diameter 5" piping with smooth aerodynamic bends to improve intake air velocity, volume, and provide more aggressive engine and turbo sound during acceleration.

High quality hardware, silicone boot, seals, and stainless steel t-bolt clamps ensure optimum durability and ease of installation. Removable air box lid element allows for easy visual inspection and maintenance of your WCFab filter with included hydrophobic pre-filter cover, to help keep your MAF sensor, turbo, and engine airways contaminant free. Air box keeps both RAM air duct from grille and fender ports fully open for maximum cool air flow to your turbo.

Full assembly finished in your choice of WCFab's signature custom powder coat colors for a look as unique as your truck.

Installs with basic hand tools. Fits both regular and high-output models. Compatible with stock trucks, no tuning required.

Intercooler pipes replace the following MOPAR Part Numbers: 68357482AB, 68417829AC, 68417829AB
