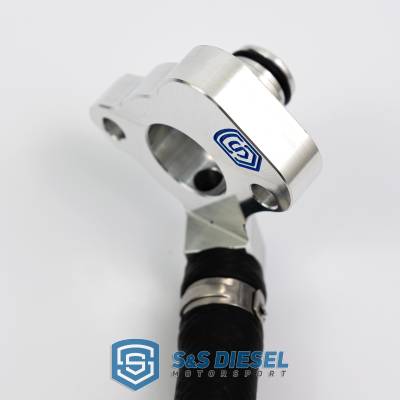

2011+ 6.7L Power Stroke CP4.2 Bypass Kit Gen2.1 Disaster Prevention Kit

CP4-6.7F-BP-G2.1
- New and improved Gen2.1 Disaster Prevention Kit
- Safeguards fuel injectors, rails, lines, and tank from CP4 debris
- All OE-style quick connects (easy install)
- Fuel supply split-off 25 inches away from the CP4 pump
- Return filter isolates CP4 debris before it goes on to the tank
- Gen2.1 billet filter head accepts standard spin-on fuel filters
- Comes with Donaldson P550943 fuel filter (9-micron at 99% efficiency)
- Improves CP4 output past 3,000 RPM (see data below)
- Made in the USA
- SEMA Certified Emissions Compliant (SC-SDM01-0020)
- CARB EO D-756-6
Shipping: 50 State Compliant CARB E.O. D-756-6
Pricing: $400.00

Qty:

Description

The S&S Diesel Motorsport Gen2.1 6.7L Power Stroke CP4 Bypass Kit features all quick connect lines that will eliminate the need for cutting the factory supply line, which is a debris introduction point, especially if the cut is not thoroughly deburred. It also eliminates the need to use a compression fitting, which is a potential leak point. The OE-style quick connect lines also eliminate any threaded joints that are further leak points and have the potential of generating debris during install.

The main task is to supply the CP4 case and the metering unit/plungers independently with clean, filtered fuel, and to reroute case fuel back to the tank. There are two major improvements in how the Gen2.1 kit accomplishes it. The Gen2.1 fuel supply is split off into two separate lines 25 inches from the CP4, which will eliminate the chance of contaminated case fuel back-feeding into the clean fuel supply line. The other improvement is what happens to the debris when it exits the pump case. The Gen2.1 kit features a billet return filter head that accepts a readily-available Donaldson P550943 spin-on fuel filter which prevents debris from reaching the tank, fuel lines, and supply pump.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W9.0000” x H4.0000” x L16.0000”
  • This item ships in its own box.
  • 50 State Compliant CARB E.O. D-756-6
