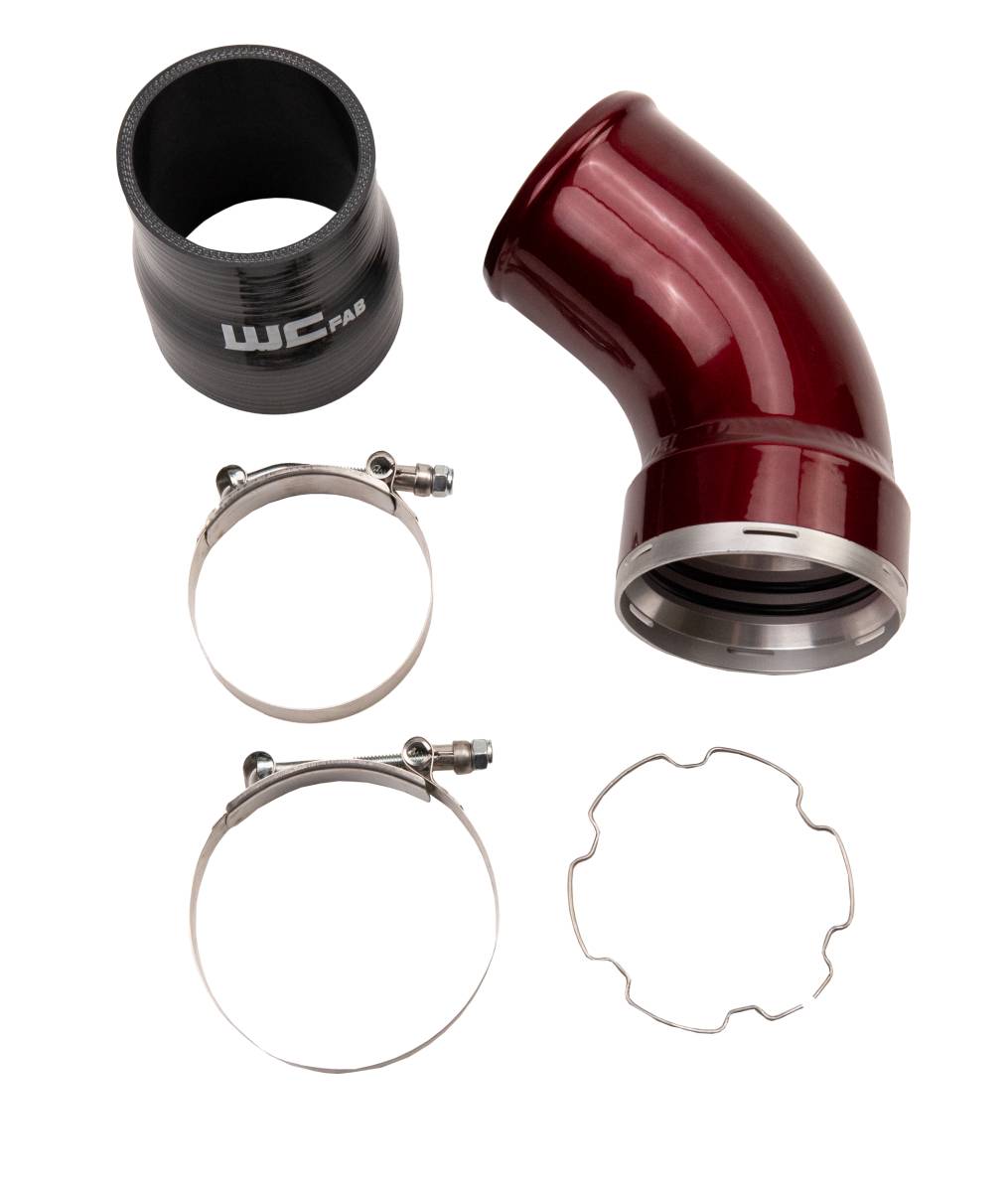

2006-2010 LBZ/LMM Duramax Passenger Side Intercooler Outlet Elbow Kit

- 3.5 in. Intercooler Outlet Elbow
- HD Silicone 3.5 in. x 3 in. Reducer Boot
- Stainless Steel T-Bolt Clamps
- O-Rings
- New Wire Clip Ring for Intercooler Flange Connection
- 14g Aluminum Construction
- CNC Machined Billet Aluminum Flange with Double O-Rings Provides an Improved Sealing Surface to Eliminate Boost Leaks
- Durable Custom Powder Coat Finish
Availability: WCFab Red, WCFab Grey, Flat Black, and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.
Shipping: This Product cannot ship to the state of California
Pricing: $219.00
5 5 2

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required


The 3.5" High Flow Intercooler Outlet Elbow for 2006-2010 LBZ/LMM Duramax replaces the factory plastic piece pipe with a high flow, 14 ga. aluminum fabricated 3.5" pipe. This part uses a CNC machined flange with a double o-ring seal, comes supplied with a new wire clip ring, and uses an upgraded silicone reducer boot with stainless steel t-bolt clamps to withstand higher boost pressures than the factory components to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks. Finished in your choice of custom powder colors to match your existing WCFab products.

NOTE: Designed for use with aftermarket and custom fabricated high flow piping and turbo kits running higher boost pressures which can cause failures of the aging plastic OEM intercooler outlet connection.

***NOTE: Not compatible with OEM passenger / cold side intercooler pipe. CSF Aftermarket intercoolers require modification / grinding of intercooler outlet lip for installation.***



Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W12.0000” x H6.0000” x L12.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California

Customer Reviews

Comment Total Reviews (2)

Awesome Addition to my lbz and High Flow kit bundle
  • Currently 5/5 Stars

Reviewed by:

Product ownership: Less than 1 month

Purchased from: Wehrli Custom Fabrication - WCFab

Love this get rid of the old plastic one fits perfect with my high flow kit

Great Addition to my LBZ
  • Currently 5/5 Stars

Reviewed by:

Product ownership: Less than 1 month

Not purchased from: Wehrli Custom Fabrication - WCFab

Thing is awesome way better then the shitty plastic one double o ring seal fits like a glove great addition to my high flow kit
