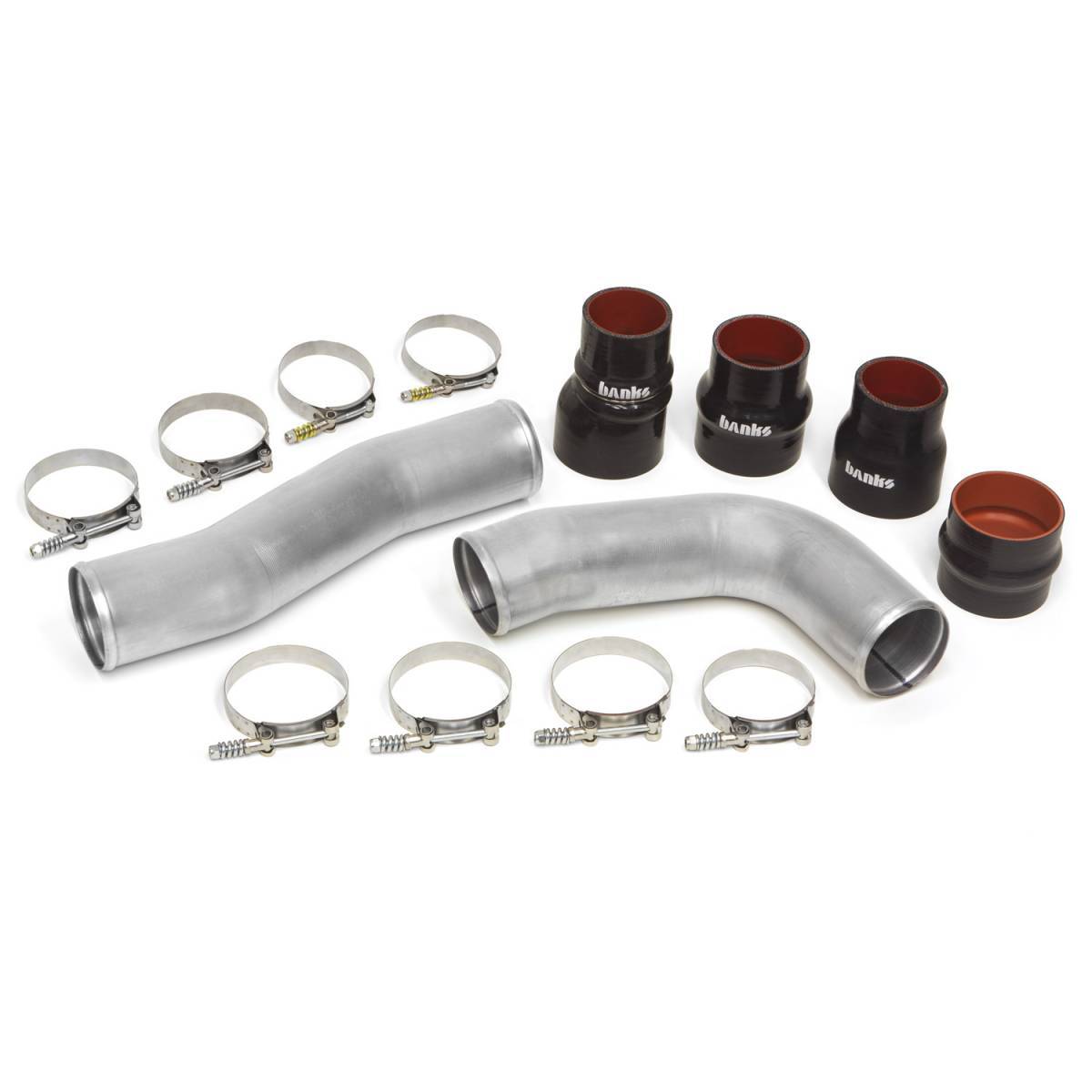

2010-2012 6.7L Cummins Banks Boost Tube System

25965
Up to 103% greater flow area than stock tubes
Increase hot side flow area up to 103% over the stock 2-3/4" boost tubes with Banks' huge 3-1/2" OEM left and right side boost tubes. Stock hot side tube is dented at the factory, bringing it's diameter down to a tiny 2-1/4". Banks boost tubes are 3-1/2" constant diameter mandrel bent with larger radius bends. More air allows for more fuel which means more horsepower.

This kit is designed to work with the stock elbow or new Banks Monster-Ram (3.5" or 4") and the stock intercooler (or aftermarket intercooler with stock inlet and outlet size and location).
Limited Supply
Availability: 10-15 Business Day Lead Time
Shipping: 50 State Compliant CARB E.O. D-161-122
Pricing: $419.00

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
Qty:

Description

Are you running the new bad-ass Banks Monster-Ram for the 6.7L Cummins? Banks boost tubes are larger than the factory pipe and designed to work with the stock elbow or new Banks Monster-Ram (3.5" or 4") which will improve airflow, and allow the turbocharger to spool up faster.

Banks hot and cold side tubes have up to 103% percent greater flow area than stock tubes. Produced from high-quality aluminized steel, the tubes are mandrel bent and constant diameter. This allows for quicker turbo spool. Better flowing intercooler tubes improve retention of boost pressure (increases density) between turbo, intercooler, and intake resulting in maximum horsepower. This natural finish tubes give you the freedom to powder-coat in the color of your choice. The bead-rolled ends allow for better grip ensuring our 4- and 5-ply heavy-duty high-temperature silicone couplers hold tight under high-boost conditions. Spring-loaded constant tension clamps maintain a stronger grip to prevent leaks or blown boots.

  • Huge increase in size and flow over stock (3.5" vs 2.75")
  • Greater cooling capacity
  • Lower EGTs
  • Mandrel-bent aluminized steel construction
  • Constant diameter tubing for the best flow
  • Perfect fit and finish
  • 4- and 5-ply heavy-duty silicone couplers
  • Spring-loaded constant tension clamps
  • Combine with Banks 3.5" or 4" Monster Ram for maximum power
  • Works with stock intercooler or aftermarket intercooler with stock inlet and outlet size and location
  • Available in a wide array of powder coat color options to suit your style

Emissions Compliant: D-161-122


Details:

  • Diameter: 3.5"
  • Material: Aluminized Steel
  • Finish: Natural

Larger Diameter (hot side):

  • Banks: 3.5 inch (103% greater flow area)
  • Stock: 2.75 inch with dent

Larger Diameter (cold side):

  • Banks: 3.5 inch (67% greater flow area)
  • Stock: 2.75 inch

Banks hot side has 103% greater flow area than OEM hot side.
Banks cold side has 67% greater flow area than OEM cold side.

Better flowing intercooler tubes results in less boost pressure loss allowing for more air and fuel to be delivered to your engine resulting in maximum horsepower.

This kit is designed to work with the stock intercooler (or aftermarket intercooler with stock inlet and outlet size and location).

Details

Shipping Information

  • Item Requires Shipping
  • 14.0 lbs.
  • W23.0000” x H16.0000” x L5.0000”
  • This item ships in its own box.
  • 50 State Compliant CARB E.O. D-161-122
