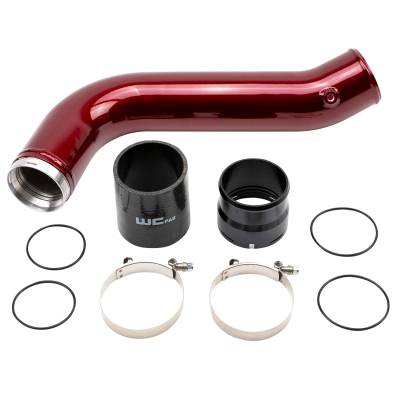

2020-2024 L5P Duramax 3.5" Passenger (Cold) Side Intercooler Pipe Kit

WCF100381
- 3.5 in. Cold Side Intercooler Pipe
- Incorporated threaded bung to reinstall OEM Intake Temperature Sensor
- Durable Powder Coat Finish
- Silicone Boot
- T-Bolt Clamps
- O-Rings
- 14g Mandrel Bent Aluminum Construction
- NO Tuning required, bolt on!
- Will fit on stock truck no other modifications or upgrades necessary!
- CNC Machined Flange and black anodized billet aluminum adapter with Double O-Rings provides an improved sealing surface to eliminate boost leaks.
- OEM Clip Ring Design replaced by high quality silicone boot and stainless steel t-bolt clamps for improved sealing and ability to hold higher boost pressures without leaking
Availability: WCFab Red, WCFab Grey, and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.
Shipping: This Product cannot ship to the state of California
Pricing: $374.00
5 5 1

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
Qty:

Description

The WCFab 3.5" High Flow Passenger Side Intercooler Pipe for 2020-2024 L5P 6.6L Duramax equipped Chevrolet Silverado or GMC Sierra 2500 / 3500 HD truck replaces the restricted OEM rubber/plastic design with a high flow, 14 ga. aluminum one piece 3.5" pipe. Includes black anodized CNC machined billet aluminum adapter with double o-ring seal, upgraded silicone boot, and stainless t-bolt clamps on upper connection and CNC machined flange with double o-ring seal at intercooler connection for improved pressure and temperature resistance vs. factory design.

  • Increased reliability and reduced possibility of blown boots and horsepower robbing boost leaks
  • No tuning required, bolt on!
  • Compatible with stock trucks
  • Custom powder coated in the color of your choice

Replaces the following GM Part Numbers: 23420958, 84682179

Video

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
  • W24.0000” x H6.0000” x L10.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California

Customer Reviews

Comment Total Reviews (1)

Perfect!
  • Currently 5/5 Stars

Reviewed by:

Product ownership: Less than 1 week

Purchased from: Wehrli Custom Fabrication - WCFab

Comments:
Installation is straightforward. Remove intake airbox, passenger wheel and wheel well liner. Remove cold side pipe spring clamps and install the Wehrli.

Note: I initially tried to install without removing the wheel well liner but fought with the lower connection for 10 mins to no avail. Removed the liner and was able to get more leverage on the bottom. Took longer to jack up the truck, remove wheel and liner than connecting the lower end. YMMV.

I initially installed the K&N charge pipe but chose to replace it for two reasons. First, I was never really happy with their coupler. Wehrli resolves this with the billet aluminum adapter and silicone boot. Second, the K&N was still a 2 piece design with a double hump hose. I have put about 2500 miles on the K&N and the hump hose connection was rubbing on the bottom creating a wear point that would eventually fail. The Wehrli does not have this issue as it is a solid pipe with a silicone boot at the upper connection.

Very happy with the quality, installation, and color selection!
