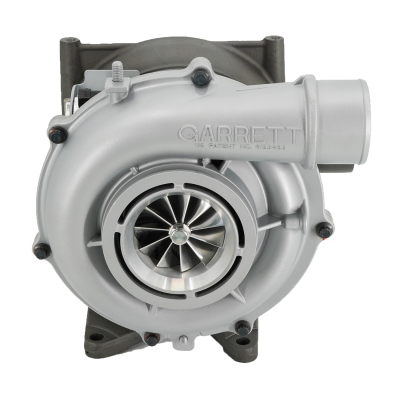

2004.5-2010 LLY/LBZ/LMM Duramax Stealth 67mm Drop In VVT Turbo

Stealth 67 VVT - LBZ/LLY/LMM 800rwhp

Building this line of Stealth chargers meant designing a turbo that would be safe to tow with, fun to drive every day and perform at competitions. If you think street-able, clean, stock-appearing power is cool, then this is the turbo for you!

The VVT Stealth 67 Mach 2 takes a stock appearing LLY/LBZ/LMM turbocharger and overhauls it to be the Ultimate Duramax VVT drop-in. This means your new turbo will spool up quickly, feel responsive, and, most importantly, move air into your engine! That means more top-end power without sacrificing driveability.

This turbocharger features HFV technology! HFV or High Flow Vane technology is our proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring our HFV upgrade are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.

To complement this turbo, we highly recommend our High Flow Intake Bundle Kit to maximize performance, EGT control, and spool up.

• Airflow to support 800HP
• Up to 650 RWHP with stock emissions equipment and basic supporting mods
• Tested in competition setups with extensive supporting mods to make 800+ RWHP
• HFV (High Flow Vane) Technology
• Custom Vane/Nozzle Ring Assembly
• Exclusive design produced in-house specific to this application
• Taller and wider vanes match larger turbine to provide superior high-load efficiency
• Retain factory exhaust brake and quicker throttle response

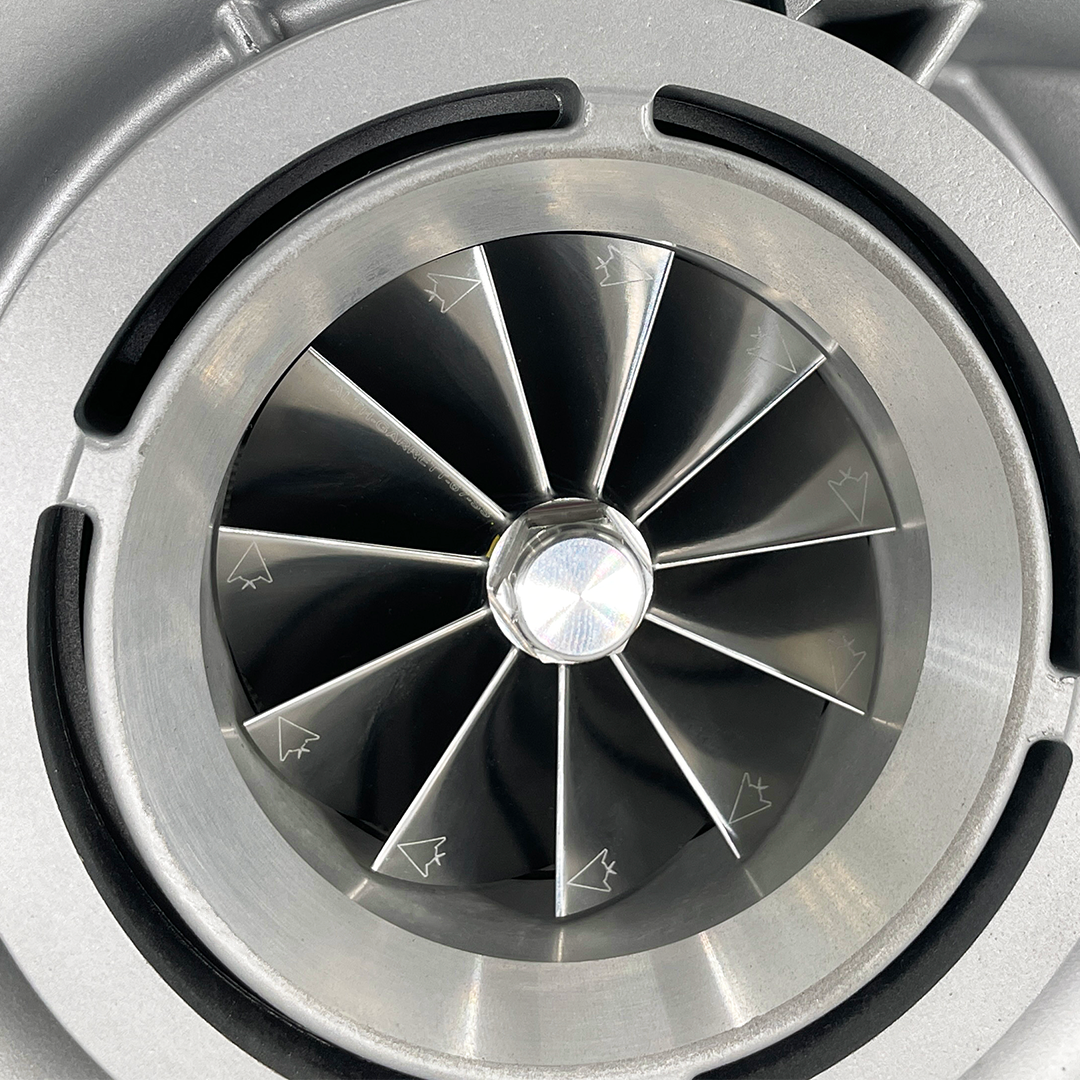

• 67mm - 11 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
• 11-Blade extended tip wheel provides big air and a wide efficiency range
• 70.2mm - 10 Blade 713C - Nickel Alloy Turbine Wheel
• Tow without the risk of surge (even while lugging)
• Lightweight and high strength
• Provides 81 lbs/min mass airflow compared to 60lbs/min stock
• Oversized Custom Turbine Wheel
• Lowers drive pressures at high load
• Efficiency improved to better control EGT
• 10-blade design produces a distinctive exhaust sound
• Brand New parts and electronics
• 360-degree Thrust Bearing
• Direct Bolt-On
• No Core Charge
• 12-month warranty

Replaces the following OEM Part Numbers: 736554-5014, 736554-0011, 736554-5011, 736554-9011, 736554-0001, 736554-5001, 736554-9001, 736554-0002, 736554-5002, 736554-9002, 736554-0003, 736554-5003, 736554-9007, 736554-9008, 736554-9014, 736554-9003, 736554-0004, 736554-5004, 736554-9004, 736554-0005, 736554-5005, 736554-9005, 736554-0006, 736554-5006, 736554-9006, 736554-0007, 736554-0008, 736554-0014, 790032-9003, 7900329003, 19329915, 97387896, 98011735, 98021617, 98065854, 12639460, 736554-5015, 736554-9015, 759622-5005, 759622-9005, 763333-5005, 763333-9005, 790032-5004, 790032-9004, 848212-5001, 8482125001, 848212-900, 8482129001, 98011735, 19329916, 98021617, 98065854, 8980033661, 8980033662, 8980117351, 98003366, 759622-5006, 759622-9006, 759622-5, 759622-0002, 759622-5002, 759622-9002, 759622-5005, 759622-0005, 759622-9005, R759622-5005, R759622-9005, 848212-5001, 8482125001

Supersedes model DM16B1070303000
