S591 Cast Wheel T6 Turbo (91mm/110mm) Super Core

- S500SX 91mm Compressor Wheel with 110mm Turbine
- Twin hydrodynamic journal bearings
- Flexible compressor cover outlet options (hose or v-band)
- Optimized compressor inlet geometry
- Cast compressor wheel
- Extended Tip Technology Compressor Wheel
- Comp. Wheel Inducer Dia. (mm) 90.67
- Comp. Wheel Outer Dia. (mm) 120.20
- Twin Scroll Turbine Housing
- Adjustable compressor and turbine housing orientation
- Standard turbine inlet and outlet connections
- Compressor cover recirculation grooves
- Premachined speed sensor mounting boss
- Rated for 900-1575 HP
Shipping: This Product cannot ship to the state of California
Pricing: $2,261.84

Customize Your Item

- Powder Coating -
 * required
- T6 Turbo Heat Blanket -
 * required
- T6 Exhaust Housing Finish -
 * required
- Exhaust Housing Size -
 * required

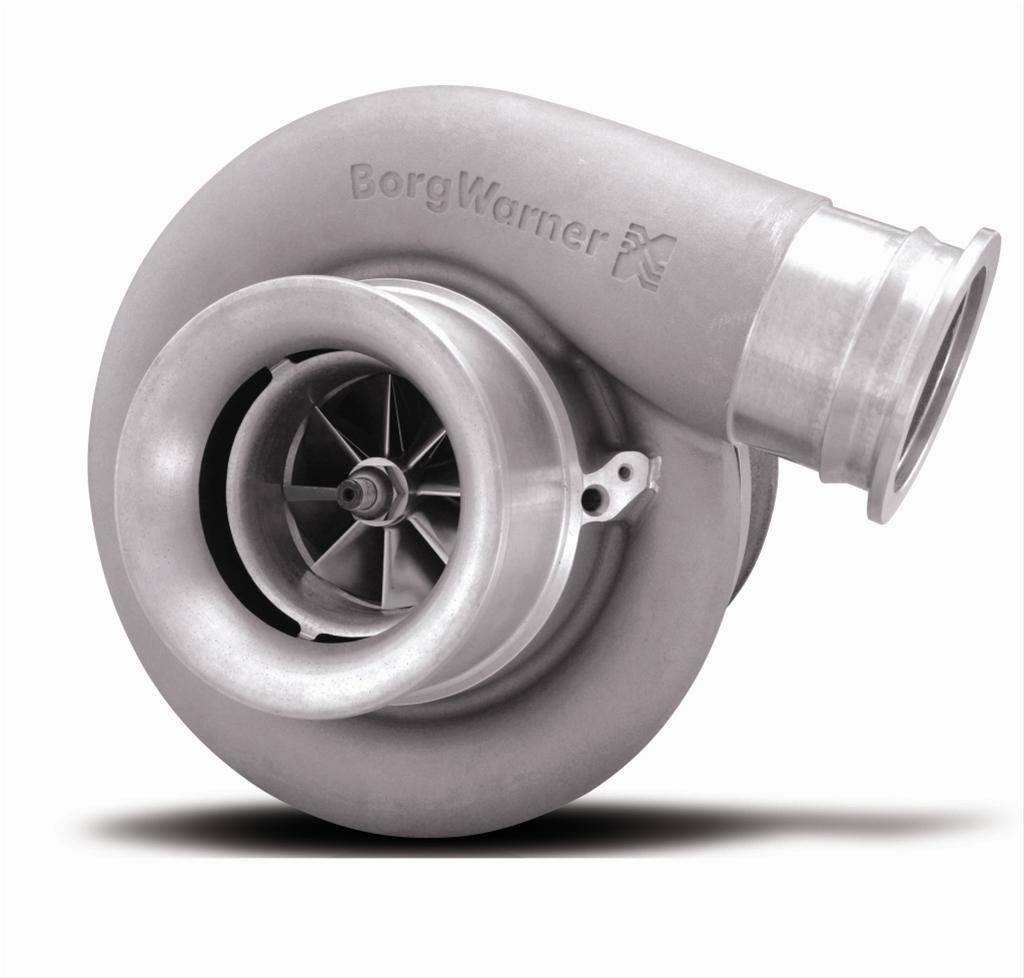

Borg Warner S591 Turbo Super Core with Cast Compressor wheel and 110mm Turbine Wheel. Exhaust Housing Sold Separately.


Shipping Information

  • Item Requires Shipping
  • 65.0 lbs.
  • W16.0000” x H16.0000” x L16.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California
