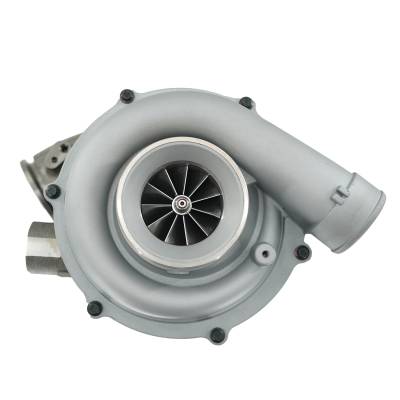

2003-2007 6.0L Power Stroke Stealth G2 67mm Drop In Turbo

Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time for powder and ceramic coat options.
Shipping: This Product cannot ship to the state of California
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California
Was: $1,925.00
Sale: $1,732.50
Save: 10%
Save: $192.50

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
- 2003-2004 Turbo Pedestal Adapter -
 * required
- VGT Exhaust Housing Finish -
 * required
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California


Fly Low and Drop Bombs with the 6.0L Stealth 67G2 for the Ford Powerstroke (2003-2007)

The class-leading charger has the turbine and compressor design to outflow and outmuscle the competition but none of the compromises that you've been conditioned to expect.  Whether you're simply replacing a stock turbo on your tune-only truck, looking for a turbo to clean up a mild set of injectors on your 550HP setup, or laying the foundation for a 750HP build you'll be glad you chose the Stealth.

    • 750HP capable in competitive use
    • Billet 67mm Compressor
    • Largest on the market 77.5x71mm turbine
    • Stock Appearing
    • 15mm Billet high flow vanes and matched unison ring and proprietary doll pin spacing
    • Ported exhaust outlet
    • Fully Functional Exhaust Brake
    • Quick Spool-Up = Useable Horsepower
    • Wide Torque Curve
    • Distinctive Throaty Howl
    • 12-month Warranty

Our custom 67mm compressor is milled out of high strength 7075 Aluminum.  It's 11 blade design is engineered to maximize peak power while minimizing the potential for surge while towing at altitude.  We do also offer a 6 blade compressor wheel that still drives great and makes a lot more WHISTLE! While it is louder, we would not recommend this option if you are towing at higher altitudes.  Redesigning the compressor to maximize power and driveability meant pouring over every detail from MWE groove width and placement to diffuser clearance.

The 6.0 Stealth 67G2 center section is fitted with a 360-degree thrust bearing to minimize thrust wear during competition use.

The turbine side innovation rivals the compressor side.  This turbine dwarfs the factory turbine and the Garrett Powermax in every way.  The turbine inducer is taller, allowing much higher flowing vanes that are actuated using a matched unison ring.  The 6.0 Stealth 67G2 features the largest turbine and vanes available in this frame.  Increasing turbine size dramatically reduces drive pressure under heavy load, helping you achieve nearly a 1:1 drive to boost ratio under most operating conditions.  Controlling drive pressure helps make more power and significantly lowers EGT's.

Calibrated Power offers a 1 year, unlimited mile, warranty on this turbo.

Fitment Specifications
Year Make Model 725390-5006, 720523-5003, 743250-5024, 743250-5013, 743250-5025, 743250-5014, GT3782VA, 743250-5014S, 1832159C91, 1845178C98, 720523-9003, 725390-5003, 725390-5003S, 720523-9005, 725390-9001, 725390-9002, 777469-5001S, 170-025-1152, 170-025-0110, 1837984C91, 1837984C94, 1832160C91, 1840054C98, 1870714C91, 5010089C95, 1846764C91, 3C3Z6K682CCRM, 3C3Z6K682AARM, 3C3Z6K682BARM, 3C3Z6K682, CBRM743250-5013S, 743250-9001, 743250-5013, 743250-9002, 743250-9004, 743250-9013, 772441-5001S,170-025-1179,170-025-0111,1832159C91, 1845178C98, 1843761C93, 1854480C91, 1846767C91, 1846765C91, 1845322C91, 4C3Z6K682CDRM, 4C3Z6K682BA, 4C3Z6K682CBRM, 4C3Z6K682AARM, 4C3Z6K682ARM, 4C3Z6K682CCRM, 743250-5014S, 743250-5014, 743250-9005, 772441-5001S, 743250-9014, 170-025-1180, 170-025-0109,1832255C91, 1876493C91, 5010147R93, 5010399R91, 1854593C91, 1858116C91, 5C3Z6K682CCRM, 5C3Z6K682BA, 5C3Z6K682DA, 5C3Z6K682CARM, 5C3Z6K682AA, 5C3Z6K682CA, 5C3Z6K682A

2003 - 2004, 2004.5-2005, 2005.5-2007


Ford F250
2003 - 2004, 2004.5-2005, 2005.5-2007 Ford F350



Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W15.0000” x H15.0000” x L15.0000”
  • This item ships in its own box.
  • This Product cannot ship to the state of California
