2011-2019 LML/L5P Duramax Cognito - 3" Standard SM Series Leveling Kit

110-90768
Leveling Kit for 2011-2019 GM 2500HD/3500HD 2WD/4WD trucks.
Kit includes:
- Ball Joint SM Series Upper Control Arm Kit (110-90298)
- Torsion Bar Adjuster Key Kit (110-90270)
- Front shock spacers (110-90259)
- 3-inches of front lift
- Maintains adequate droop travel to optimize ride quality
- Allows for up to a 33x12.5 Tire on a 9-inch Wide Wheel with Zero Offset
- Made in the USA
Availability: This product is currently experiencing longer than normal lead times. Please allow additional 3-4 weeks when placing your order.
Pricing: $664.95

Customize Your Item

- Model Year -
 * required
- Cab Configuration -
 * required
- Custom Control Arm Powder Coat -
 * required
- WCFab Traction Bar Option -
 * required
- WCFab Traction Bar Powder Coat -
 * required
- Pitman & Idler Support Kit -
 * required
- Tie Rod Kit Option -
 * required
Qty:

Description

Cognito Leveling Kit for 2011-2019 GM 2500HD/3500HD 2WD/4WD trucks.

We've bundled the select parts into our Cognito Leveling Kit for 2011-2019 GM 2500HD / 3500HD 2WD/4WD trucks. This kit is complete with our performance Cognito Ball Joint SM Series Upper Control Arm Kit, spacers to use with stock front shocks, and torsion bar keys.

The Cognito Ball Joint SM Series Upper Control Arms feature boxed sheet metal arms that are CNC robot welded and finished with a durable semi-gloss black powder coating. Alloy series ball joints are included as well as new crush sleeves and polyurethane bushings. The Cognito Ball Joint SM Series Upper Control Arms add performance to the Chevy and GMC truck by correcting the ball joint angle for lifted and leveled applications, increasing droop travel, and increasing caster slightly for better highway speed drivability.

1” front shock extender kit and torsion bar adjuster key kit are included.

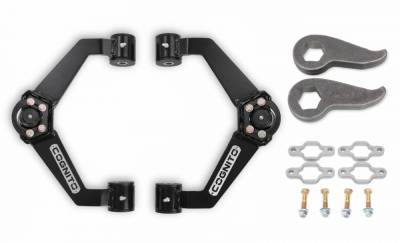

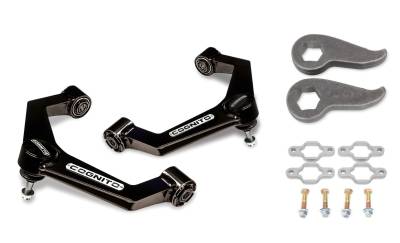

Included components:
• 110-90298 - Cognito Ball Joint SM Series Upper Control Arm Kit
• 110-90270 - Torsion Bar Adjuster Key Kit
• 110-90259 - 1” Front Shock Extender Kit
• Cognito Sticker Pack"

If you require assistance selecting the correct parts for your application, please call us at 630-277-8239 to speak with one of our specialists about your application.

Details

Shipping Information

  • Item Requires Shipping
  • 60.0 lbs.
  • W24.0000” x H12.0000” x L36.0000”
