2004.5-2010 LLY/LBZ/LMM Duramax Stealth 64mm Drop In VVT Turbo

SKU: CPS200281

- 650+ RWHP Peak
- 360-degree Thrust Bearing

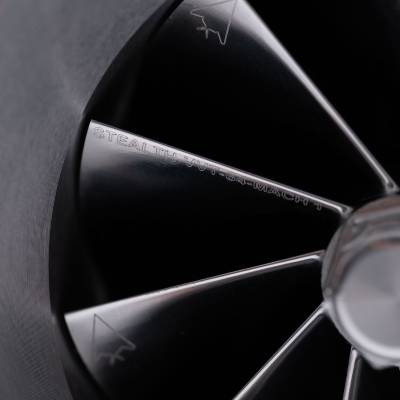

- 63mm - 11 Blade Extended Tip Billet 2618 Aluminum Alloy Compressor Wheel
- 66.5mm - 9 Blade 713C - Nickel Alloy Turbine Wheel
- Quick Spool-Up
- Direct Bolt-On
- Great Daily Driving/Towing
- 12-month Warranty
- Supersedes model DM16B1070202000

Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time for powder and ceramic coat options.

Shipping: This Product cannot ship to the state of California

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Was: $2,599.00

Sale: $2,339.10

Save: 10%

Save: $259.90

Customize Your Item

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coating

- Powder Coating -

* required

VGT Turbo Heat Blanket

- VGT Turbo Heat Blanket -

* required

Gasket Kit

- Gasket Kit -

* required

VGT Exhaust Housing Finish

- VGT Exhaust Housing Finish -

* required

Qty:

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Description
Details
Shipping
Reviews

Description

Stealth 64 VVT - LBZ/LLY/LMM 650rwhp

Easy Install, Snappy Response, EGT control, and Turbine braking

The VVT Stealth 64 Turbo is an easy-to-install upgrade that spools up quickly, controls EGT's under heavy load, allows for turbine braking during towing scenarios, and kicks ass when leaned on. Your stock fuel LLY, LBZ, or LMM should make 600 RWHP with this turbo and the proper tuning.

The stock LBZ/LLY/LMM turbocharger runs out of air at about 530rwhp. It has trouble controlling EGTs on extended pulls past 400HP. The Stealth 64 VVT extends the useful power curve of the engine out another 120HP to 650rwhp. Furthermore, the Stealth 64 VVT is much better at controlling exhaust gas temperatures under sustained load when towing up long grades at high power. This is accomplished through the use of a specially designed billet compressor wheel, which is matched to a higher flowing turbine assembly. This match represents the best balance between quick spool-up response for driveability and overall compressor flow for peak power for truck owners looking to make 650rwhp.

To complement this turbo, we highly recommend our High Flow Intake Bundle Kit to maximize performance, EGT control, and spool up.

Replaces the following OEM Part Numbers: 736554-5014, 736554-0011, 736554-5011, 736554-9011, 736554-0001, 736554-5001, 736554-9001, 736554-0002, 736554-5002, 736554-9002, 736554-0003, 736554-5003, 736554-9007, 736554-9008, 736554-9014, 736554-9003, 736554-0004, 736554-5004, 736554-9004, 736554-0005, 736554-5005, 736554-9005, 736554-0006, 736554-5006, 736554-9006, 736554-0007, 736554-0008, 736554-0014, 790032-9003, 7900329003, 19329915, 97387896, 98011735, 98021617, 98065854, 12639460, 736554-5015, 736554-9015, 759622-5005, 759622-9005, 763333-5005, 763333-9005, 790032-5004, 790032-9004, 848212-5001, 8482125001, 848212-900, 8482129001, 98011735, 19329916, 98021617, 98065854, 8980033661, 8980033662, 8980117351, 98003366, 759622-5006, 759622-9006, 759622-5, 759622-0002, 759622-5002, 759622-9002, 759622-5005, 759622-0005, 759622-9005, R759622-5005, R759622-9005, 848212-5001, 8482125001

Supersedes model DM16B1070202000
